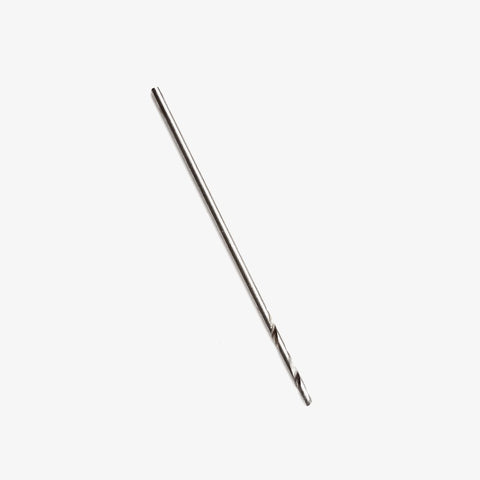

Drill bits are important for Handmade PCBs and the most common diameter is the 0.8mm. Many components such as through hole resistors as well as through hole capacitors use 0.8mm drill hole size and this is a high-quality PCB drill bit with the required diameter of 0.8 mm.
It can be used for drill holes in PCBs for different resistors, capacitors, inductors, voltage regulators, general purposes and power transistors, MOSFETs and IC footprints etc. This drill bit perfectly fits into the hand drill press or the spiral hand drill tool.
Drill bit specification:
Drill bit Applications:
Example on How to use Drill bits:
Additional Resources:
Mini drill bits unboxing and assembly
Package Contains
1x 0.8mm drill bit
