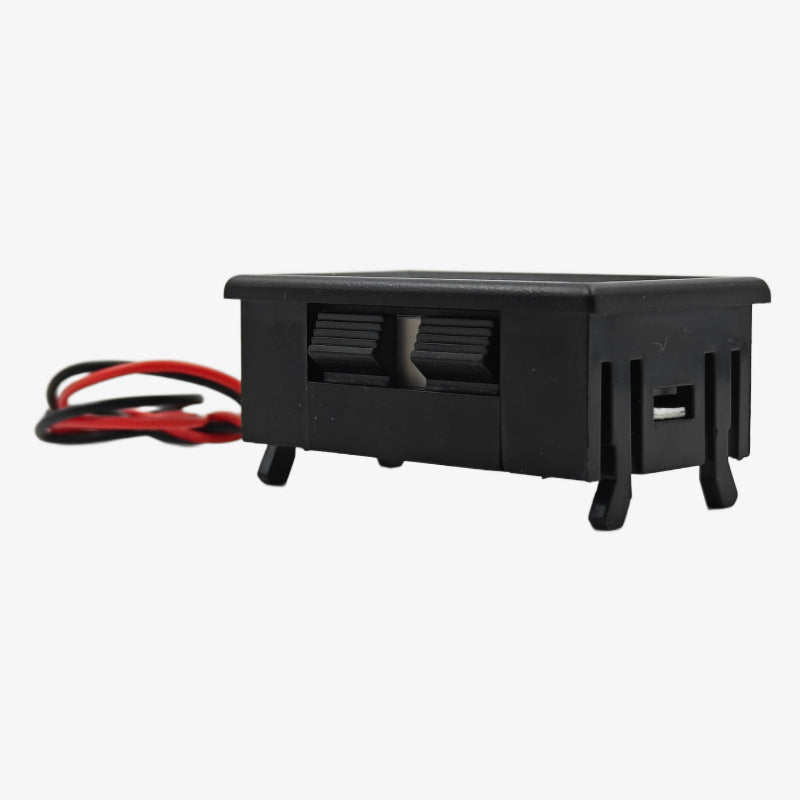

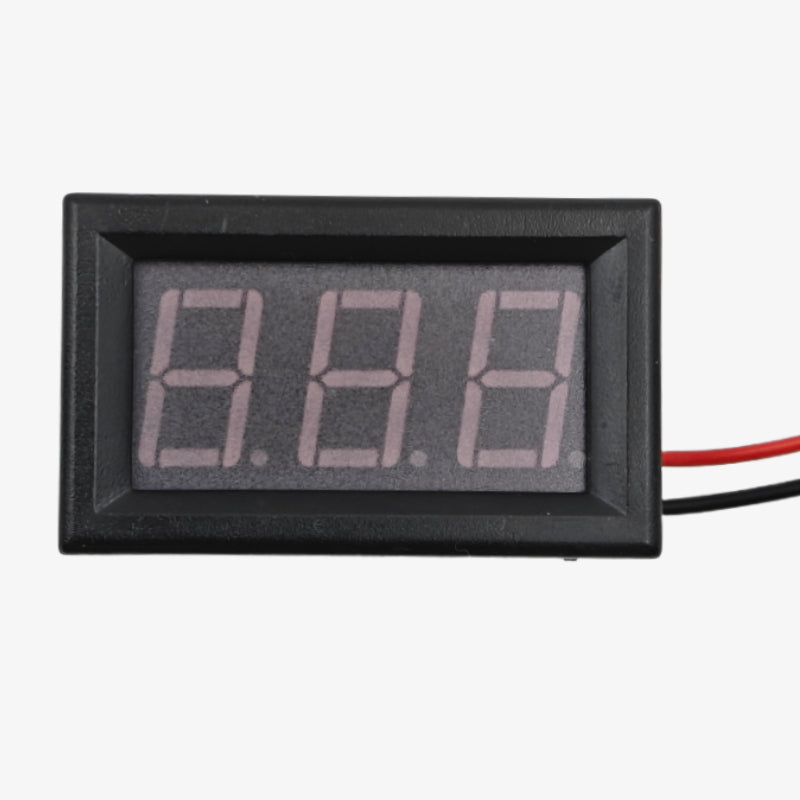

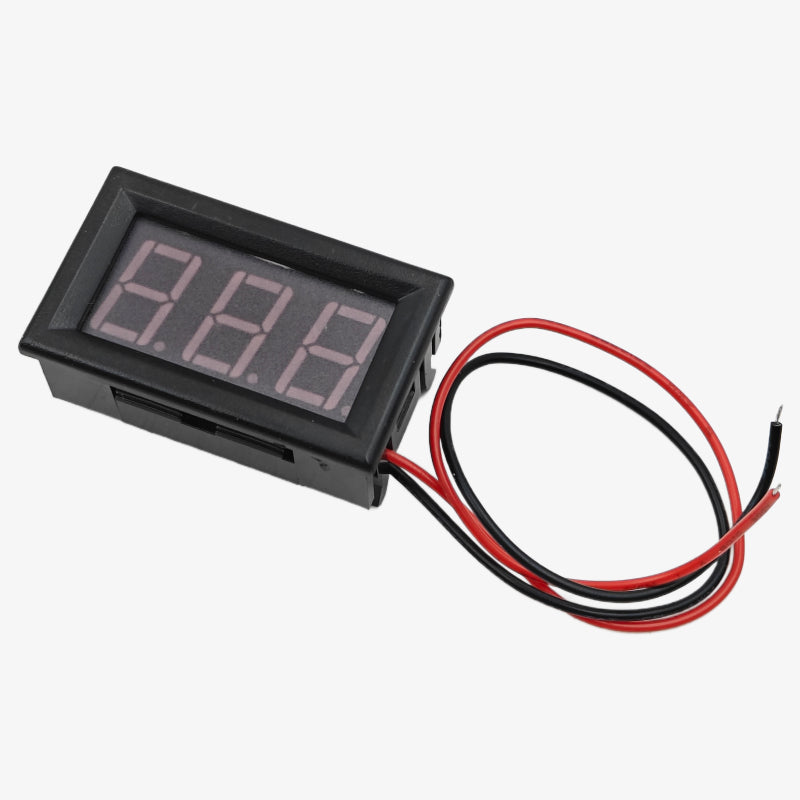

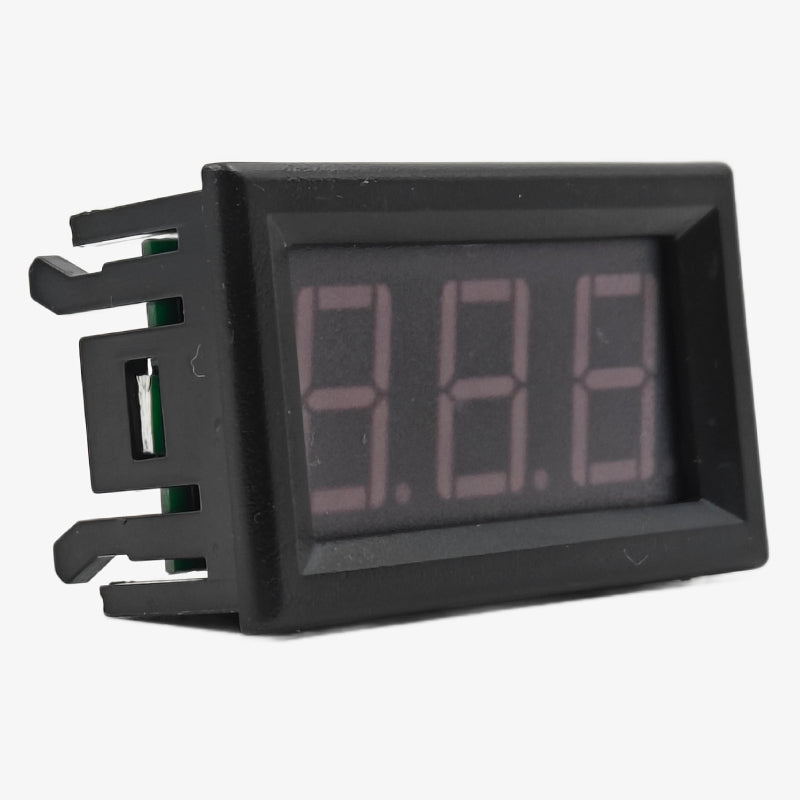

0.56 inch 0-100V DC Blue LED Two-Wire Digital Voltmeter Module

The 0.56 inch 0–100V Two-Wire LED Display Digital DC Voltmeter is a compact and reliable voltage measuring module designed for monitoring DC power supplies, batteries, and DIY electronics projects. Featuring a bright blue LED display, it provides clear and accurate voltage readings from 0V up to 100V. Its simple two-wire connection makes it easy to install and power directly from the measured voltage source, eliminating the need for an external power supply. With a lightweight and durable design, this voltmeter is ideal for integration into enclosures, panels, and embedded systems.

Features of 0.56 inch 0–100V Two-Wire LED Display Digital DC Voltmeter:

1. Wide voltage measurement range: 0–100V DC
2. Bright 0.56 inch blue LED display for easy visibility
3. Two-wire connection – powered directly from the measurement source
4. Compact and lightweight design for easy installation
5. Low power consumption with stable readings

Specifications  of 0.56 inch 0–100V Two-Wire LED Display Digital DC Voltmeter:

• Model: 0.56 inch Two-Wire Digital Voltmeter (Blue)
• Display Type: 0.56 inch 3-digit 7-segment LED
• Display Color: Blue
• Measuring Range: 0–100V DC
• Input Impedance: ≥100kΩ
• Operating Voltage: 4.5V – 30V DC (self-powered via measurement source)
• Accuracy: ±1% (typical)
• Refresh Rate: 200ms (approx.)
• Dimensions (L × W × H): Approx. 48 × 29 × 22 mm
• Weight: Approx. 20 g

Package Includes:

1 × 0.56 inch 0-100V DC Blue LED Two-Wire Digital Voltmeter Module
