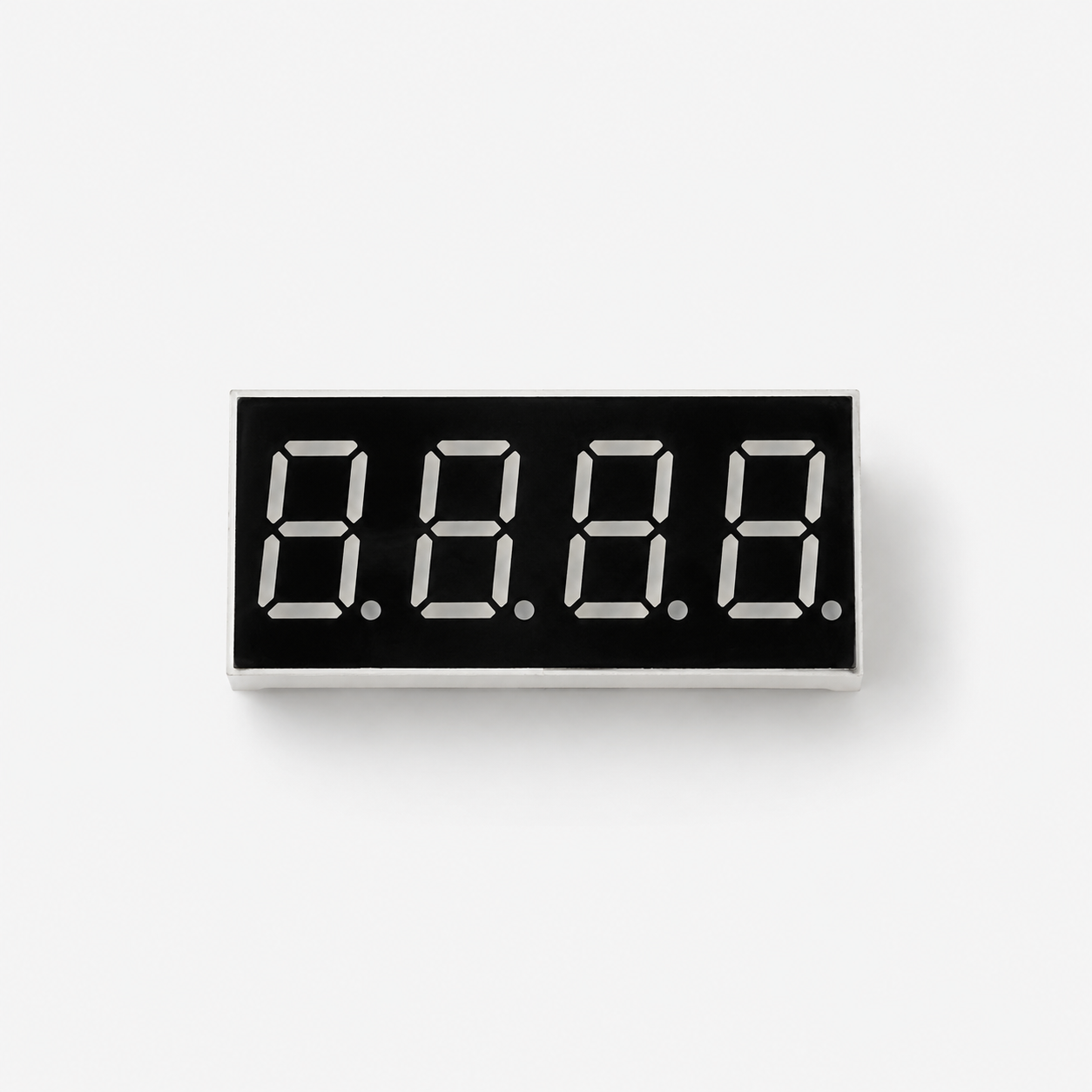

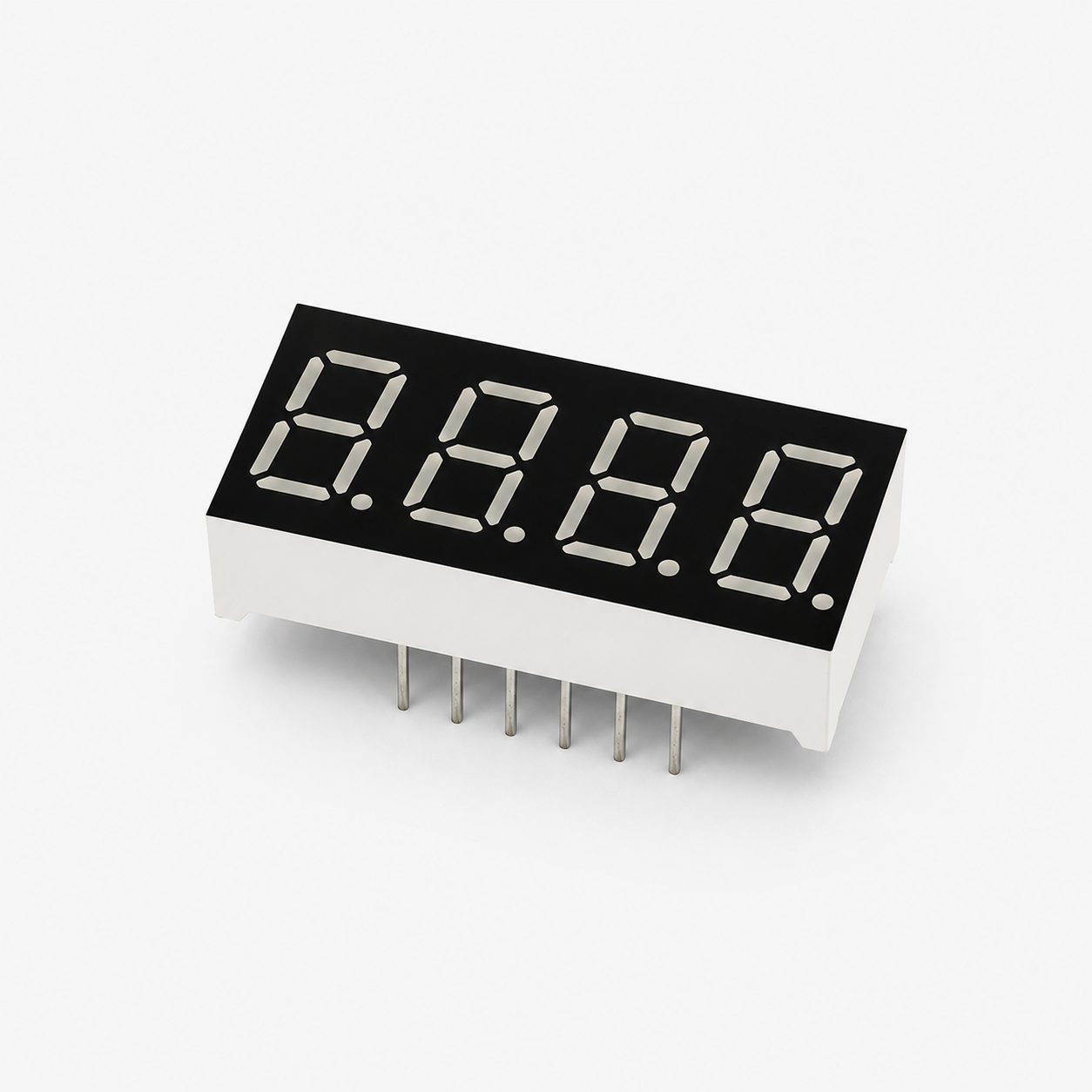

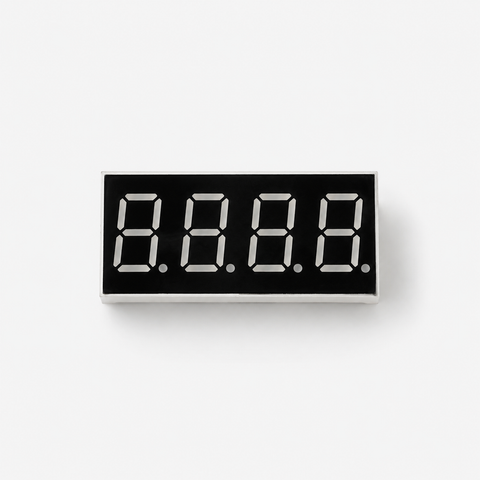

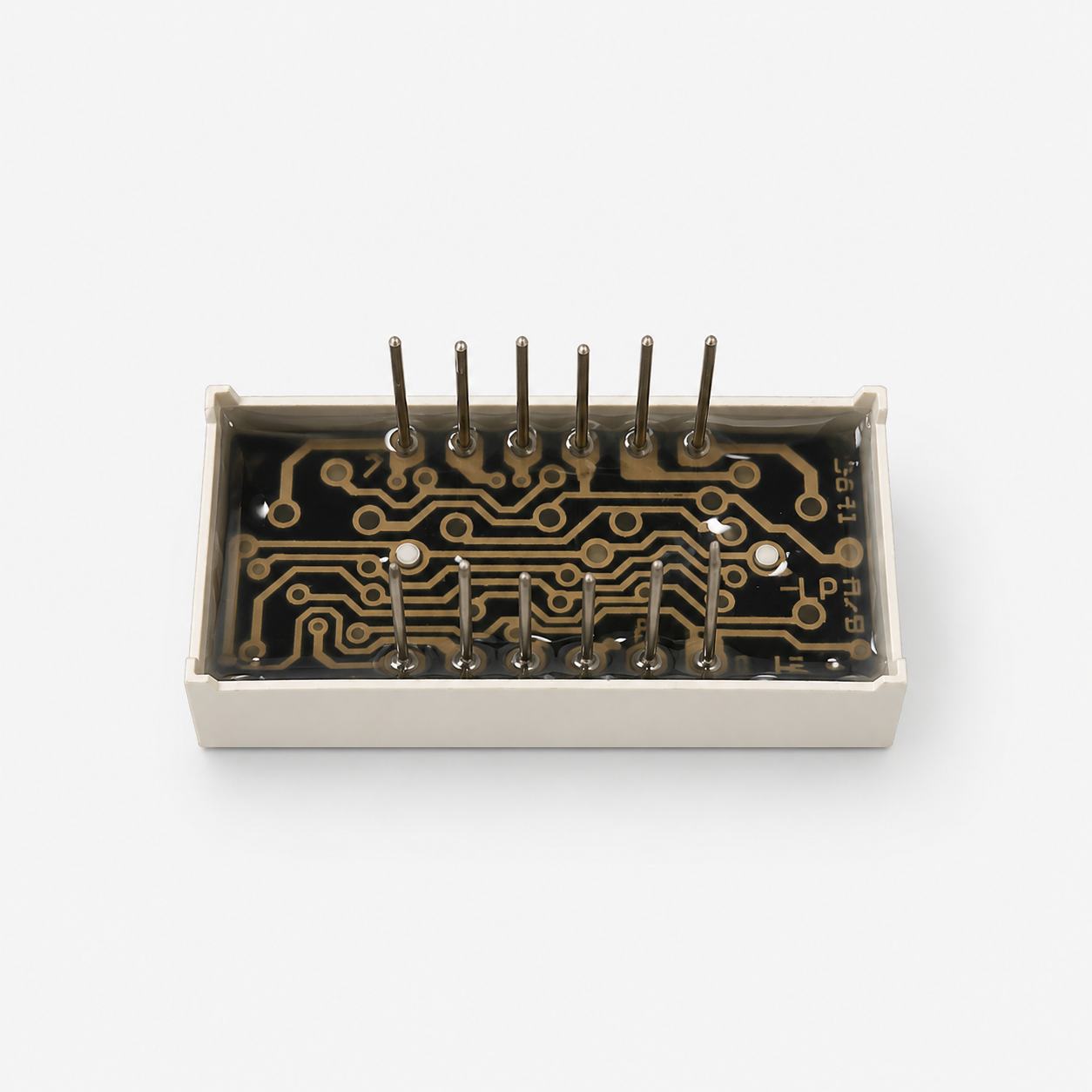

0.36 Inch 4 Digit 7-Segment Red LED Display (Common Anode) - 12 Pin is a compact and high-brightness numeric display module designed for displaying four-digit numerical values in electronic circuits. Featuring bright red LEDs with a 0.36-inch digit height, this common anode display offers excellent visibility, low power consumption, and reliable performance. It is widely used in digital clocks, timers, counters, voltmeters, frequency meters, measuring instruments, and various microcontroller-based projects.
| Parameter | Value |
|---|---|
| Product Type | 4-Digit 7-Segment LED Display |
| Display Type | LED Numeric Display |
| Digit Height | 0.36 Inch (9.14mm) |
| Number of Digits | 4 |
| Display Color | Red |
| Configuration | Common Anode |
| Number of Pins | 12 |
| Mounting Type | Through Hole (THT) |
| Forward Voltage | 1.8V–2.2V (Per LED Segment) |
| Forward Current | 10–20mA (Per Segment) |
| Viewing Angle | Wide |
| Operating Temperature | -20°C to +70°C |
| Applications | Digital Clocks, Timers, Counters, Voltmeters, Frequency Meters, Measuring Instruments, Embedded Systems, DIY Electronics |
| RoHS Compliance | Yes |
