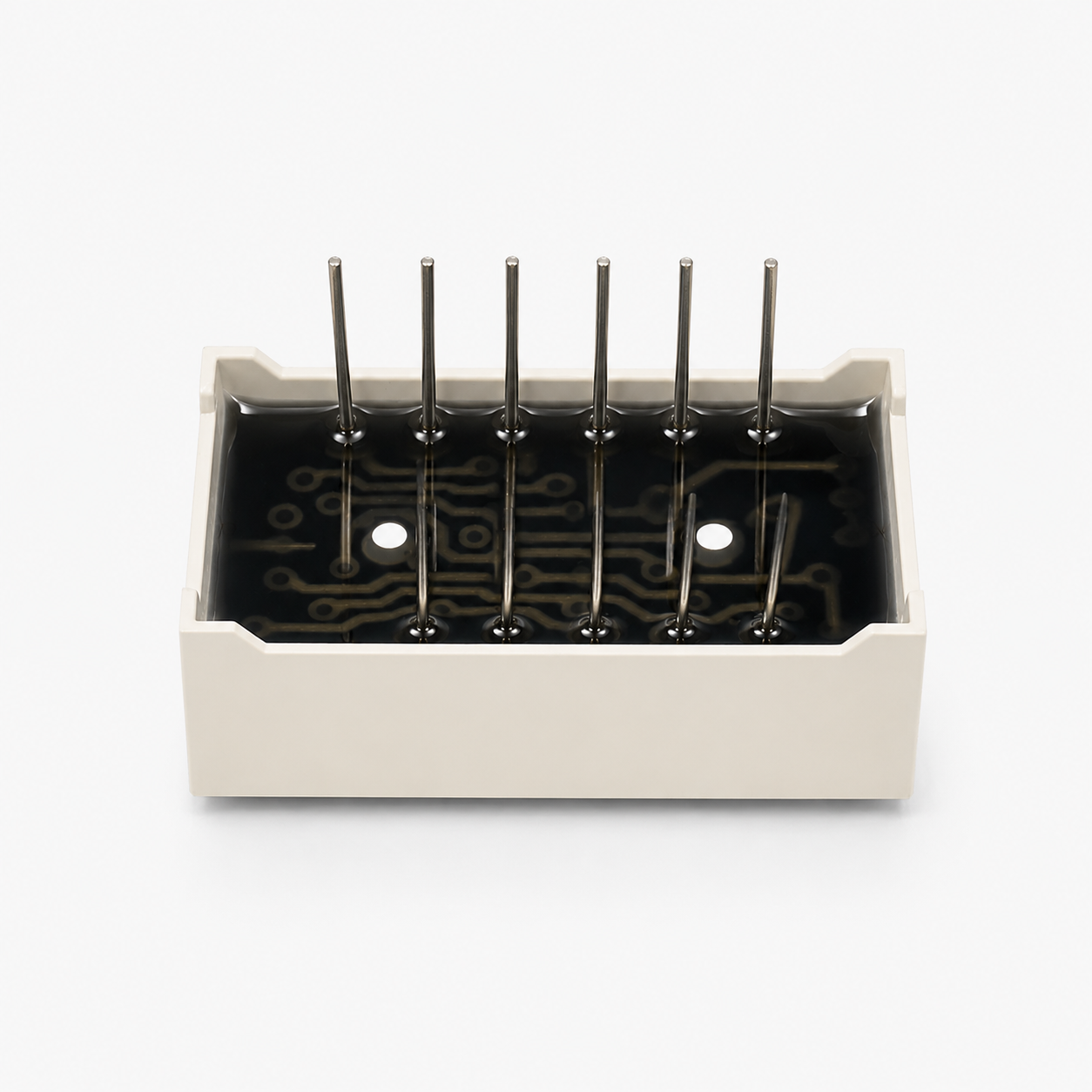

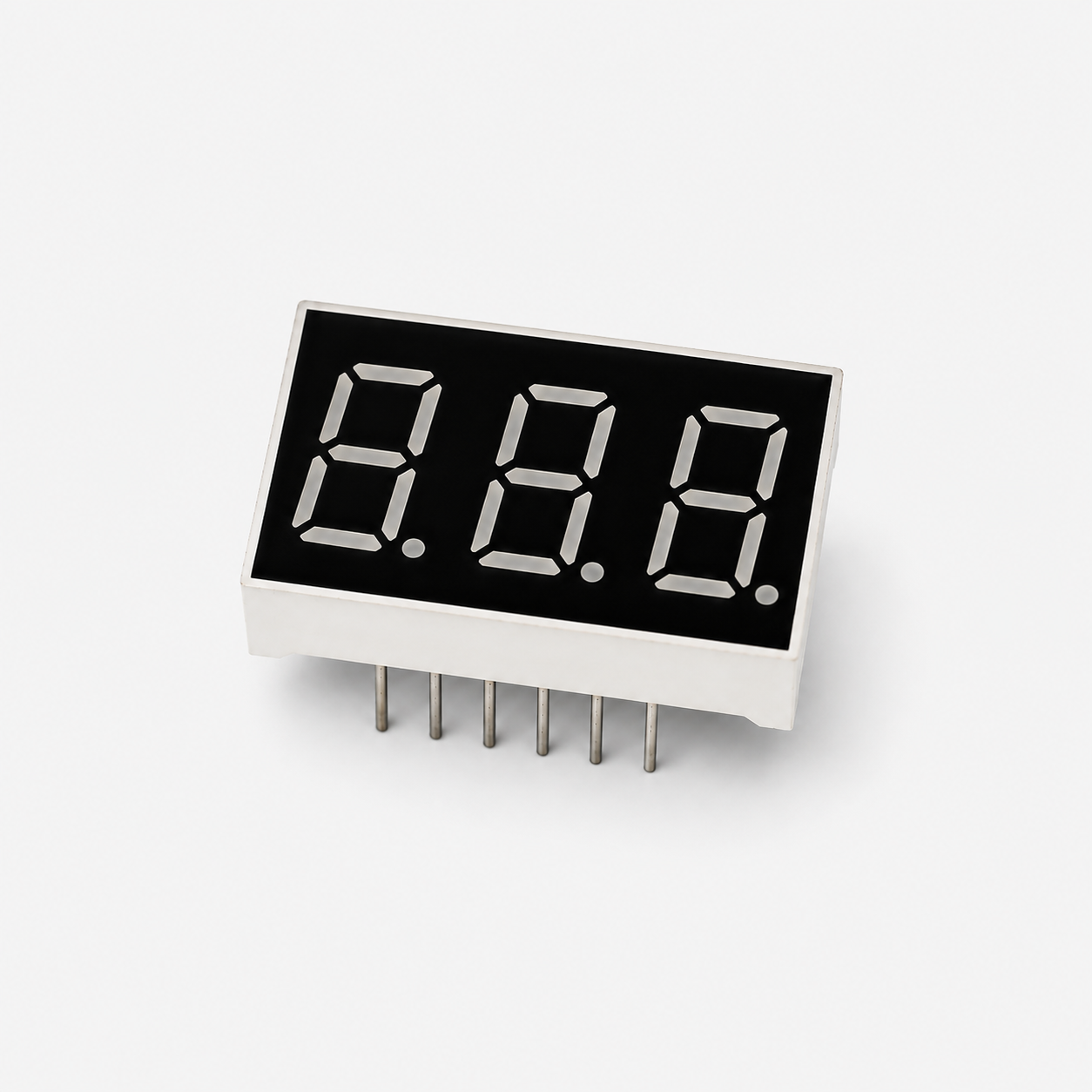

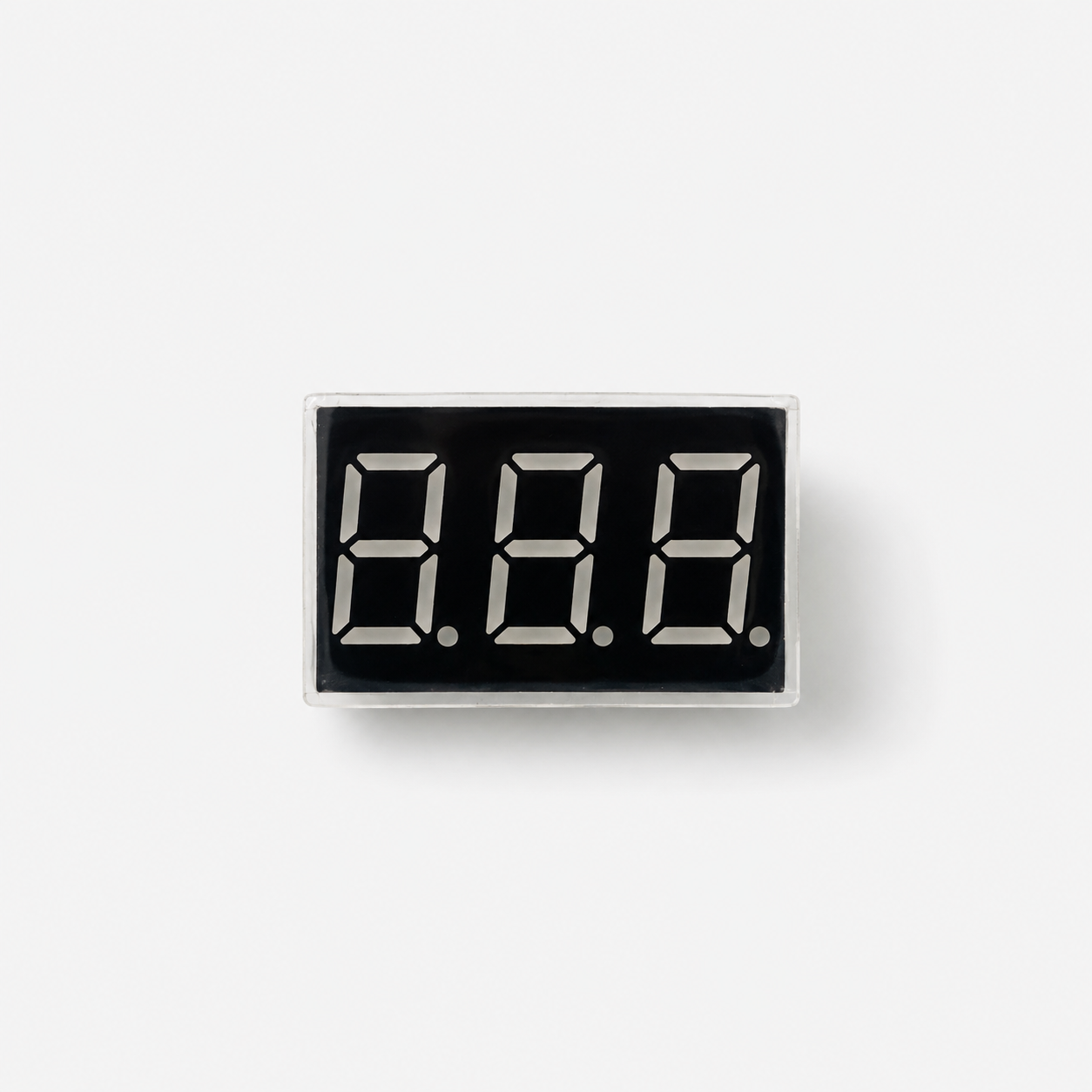

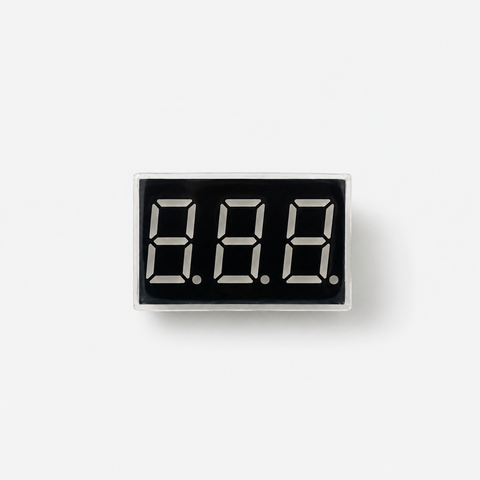

0.36 Inch 3 Digit 7-Segment - RED (Common Anode) LED Display CC - 12 Pin

Brand: GENERIC
SKU: MOD-QC5989
Availability: 104 In Stock
Rs. 22.00
Subtotal: Rs. 22.00
Description
Description
x

0.36 Inch 3 Digit 7-Segment - Red LED Display (Common Anode) - 12 Pin is a compact and high-brightness numeric display module designed for displaying three-digit numerical values in electronic circuits. Featuring bright red LEDs with a 0.36-inch digit height, this common anode display provides excellent visibility while consuming low power. It is widely used in digital clocks, counters, voltmeters, frequency meters, timers, measuring instruments, and various microcontroller-based projects.

Features:

  1. 0.36 Inch 3-Digit 7-Segment LED Display
  2. Bright Red LED Illumination
  3. Common Anode Configuration
  4. 12-Pin Through-Hole Package
  5. High Brightness and Wide Viewing Angle
  6. Low Power Consumption
  7. Fast Response Time
  8. Easy Interface with Microcontrollers and Driver ICs
  9. Suitable for Indoor Electronic Displays
  10. RoHS Compliant

Specifications:

Parameter Value
Product Type 3-Digit 7-Segment LED Display
Display Type LED Numeric Display
Digit Height 0.36 Inch (9.14mm)
Number of Digits 3
Display Color Red
Configuration Common Anode
Number of Pins 12
Mounting Type Through Hole (THT)
Forward Voltage 1.8V–2.2V (Per LED Segment)
Forward Current 10–20mA (Per Segment)
Viewing Angle Wide
Operating Temperature -20°C to +70°C
Applications Digital Clocks, Counters, Voltmeters, Frequency Meters, Timers, Measuring Instruments, Embedded Systems, DIY Electronics
RoHS Compliance Yes



Also Check These Out:

0.56 Inch 2 Digit 7-Segment LED Display CC - 18 Pin

7 Segment Display (Common Anode) - Red - 0.56 inch

TM1637 4-Digit Seven Segment Led Display Module

Package Includes:

1 x 0.36 Inch 3 Digit 7-Segment Red LED Display (Common Anode) - 12 Pin
