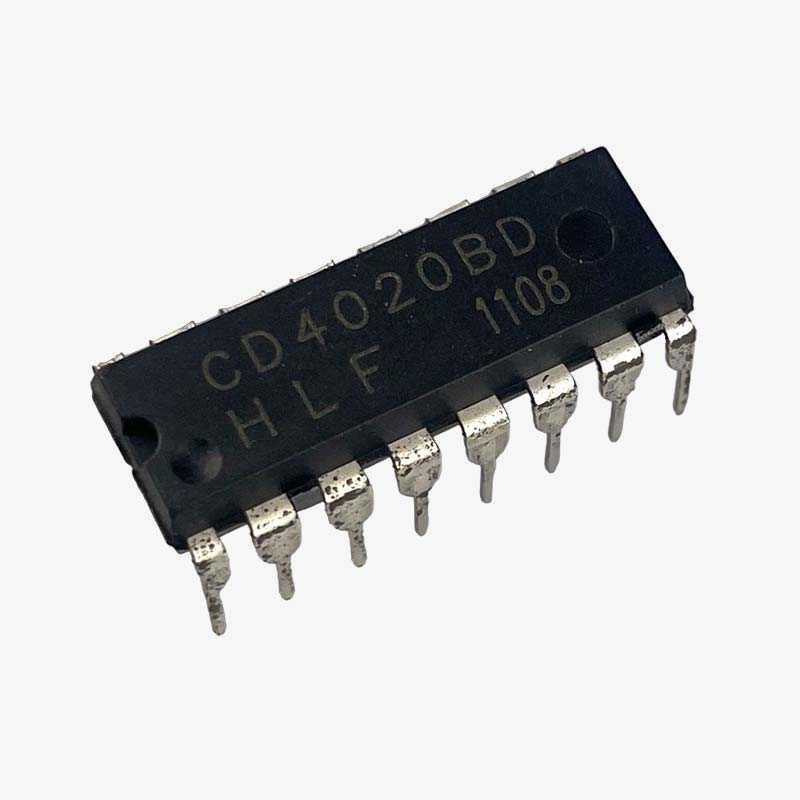

CD4020 14-bit Binary Counter IC
Click to zoom in
  • Free Shipping

    On prepaid orders above INR 500

  • Cash On Delivery

    COD available for orders above INR 500

  • 3-5 Days Delivery

    Shipped within 24 hrs

  • Dedicated Support

    Mon to Sat - 10 AM to 6.30 PM

CD4020 14-bit Binary Counter IC

QC0067
98 In stock
Rs. 21.00 Rs. 15.00 (Exc. GST)
Rs. 15.00

CD4020 is ripple-carry binary counters that features 14 Stages, push-pull type, balanced outputs, with standard speed (tpd > 50ns). All counter stages are master-slave flip-flops. Supports wide input voltage ranges from 3V to 18V. The maximum input current at 18V is 1uA whereas 100nA at 18V and 25°C.

All counter stages are master-slave flip-flops. The state of a counter advances one count on the negative transition of each input pulse; a high level on the RESET line resets the counter to its all-zeros state. Schmitt trigger action on the input-pulse line permits unlimited rise and fall times. All inputs and outputs are buffered. 16 Pin DIP available in hermetic dual-in-line ceramic package.

We also have CD4040 with similar features. The differences are CD4020 is a 14 Stage binary counter whereas CD4040 is a 12 Stage binary counter and there is a difference between the pin layout.


CD4020 pinout:
CD4020


CD4020 features, specification

  1. Medium-speed operation
  2. Fully static operation
  3. Buffered inputs and outputs
  4. 100% tested for quiescent current at 20 V
  5. Standardized, symmetrical output characteristics
  6. Fully static operation
  7. Common reset
  8. 5-V, 10-V, and 15-V parametric ratings
  9. Maximum input current of 1 µA at 18 V over full package-temperature range; 100 nA at 18 V and 25°C
  10. Noise margin (over full package-temperature range):
  •    1 V at VDD = 5 V
  •    2 V at VDD = 10 V
  •    2.5 V at VDD = 15 V


Specification: -

  • VCC (Min) (V) -                         3
  • VCC (Max) (V) -                        18
  • Bits (#) -                                    12
  • Voltage (Nom) (V) -                   5, 10, 15
  • F @ nom voltage (Max) (MHz) -    8
  • ICC @ nom voltage (Max) (mA) -  0.03
  • tpd @ nom Voltage (Max)(ns) -          160
  • IOL (Max) (mA) -                              1.5
  • IOH (Max) (mA) -                      -1.5
  • Function -                                Counter
  • Type -                                       Binary
  • Operating temperature range (C)       -55 to 125



CD4040 Applications:

  • Control Counters
  • Timers
  • Frequency Dividers
  • Time-Delay Circuits

CD4040 Dimension and footprint:

CD4020 Dimension and footprint



Example Projects on CD4040:

3x3x3 based LED Cube using 555 Timer and CD4020

Additional Resources:

CD4020 Datasheet


Package Contains

1x CD4020
