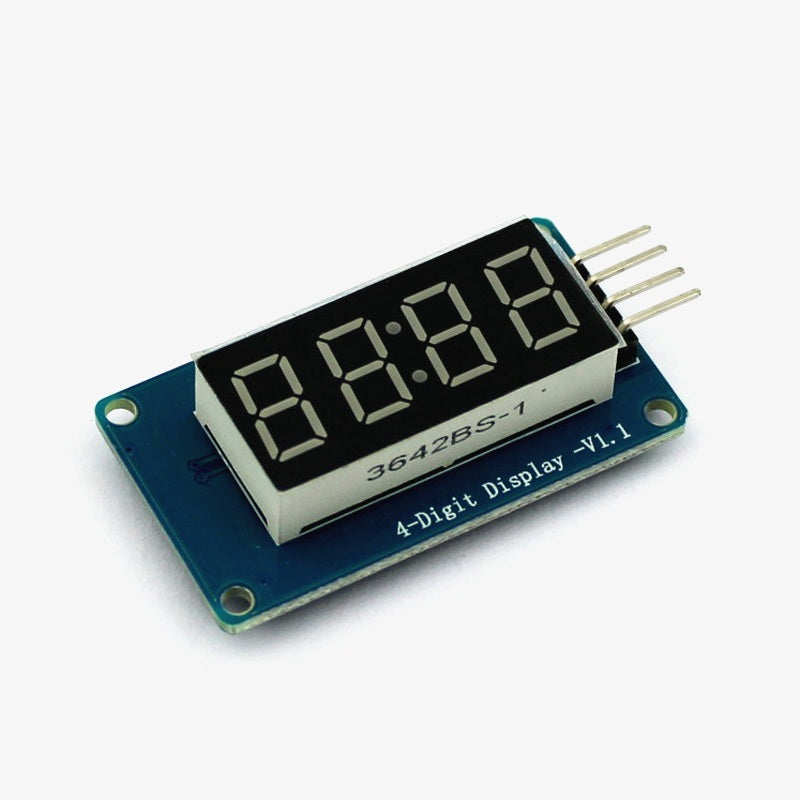

TM1637 4-Digit Seven Segment Led Display Module
SKU:
MOD-QC1177
Availability:
986
In Stock
- Rs. 39.00
- Rs. 39.00
- Unit price
- per
Subtotal:
Rs. 39.00
Description
xThis 7 segment LED Display has 4 digits which are controlled by TM1637 Driver Chip. It requires only two connections to control this TM1637 4 Bits Digital Tube LED Display Module. Also thanks to the I2C Bus you can control it using only 2 wires, leaving more pins available on your Microcontroller to connect other things.
The module is a 12-foot clock with four common anode tube (0.36 inch) display module for driver IC TM1637, only two signal lines can make the MCU control four 7-segment digital tubes.
There are several modules using this TM1637 chip to form a 4 digit numerical display module. TM1637 has also keyboard input capability but is not used in this module.

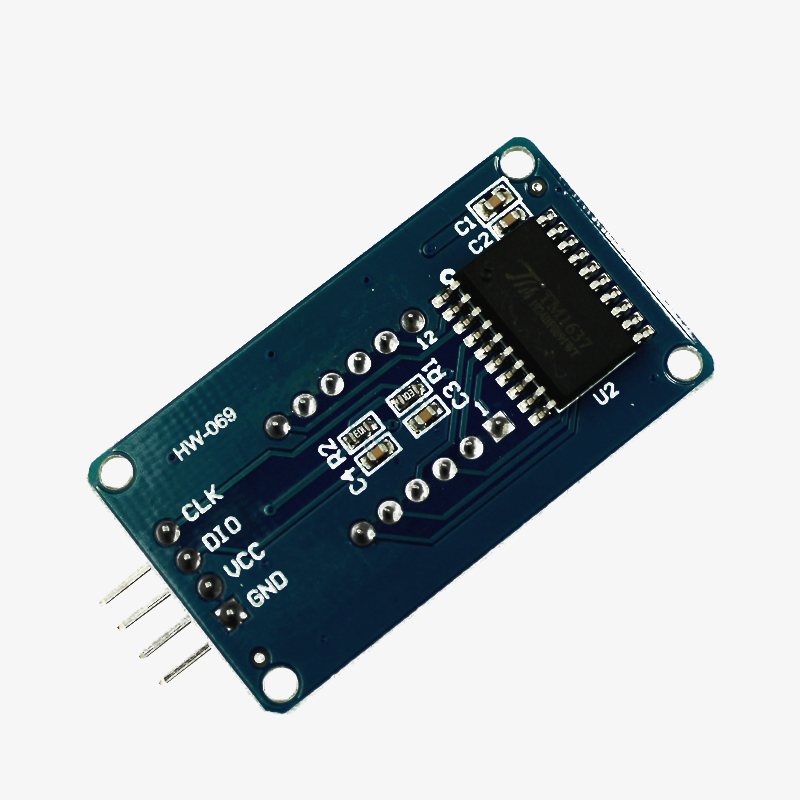

Pinout Description :
GND – GND
Vcc – 5V
DIO – D2
CLK – D3
Features :
- Ease to use.
- Ease of multiplexing.
- Can use as a 4 digit display unit.
- Can use as a clock display.
- DIY clock project.
- 4 digit display unit.
- Electrical/Electronic projects.
- The counter project using 7 segment display.
- 4 M2 screws positioning holes for easy installation
