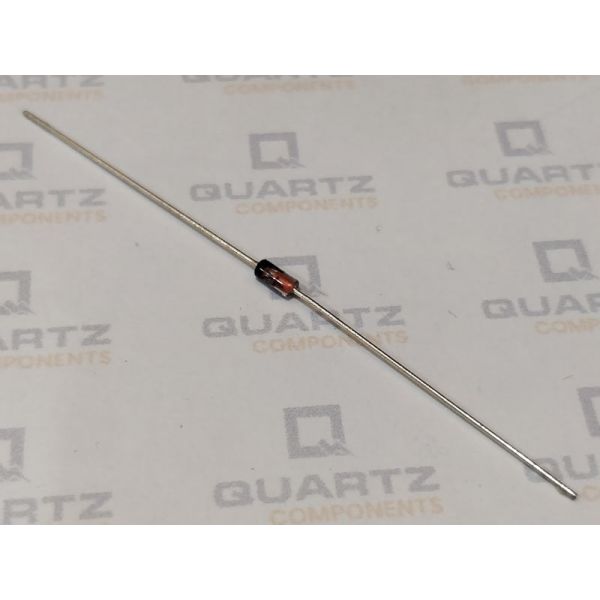

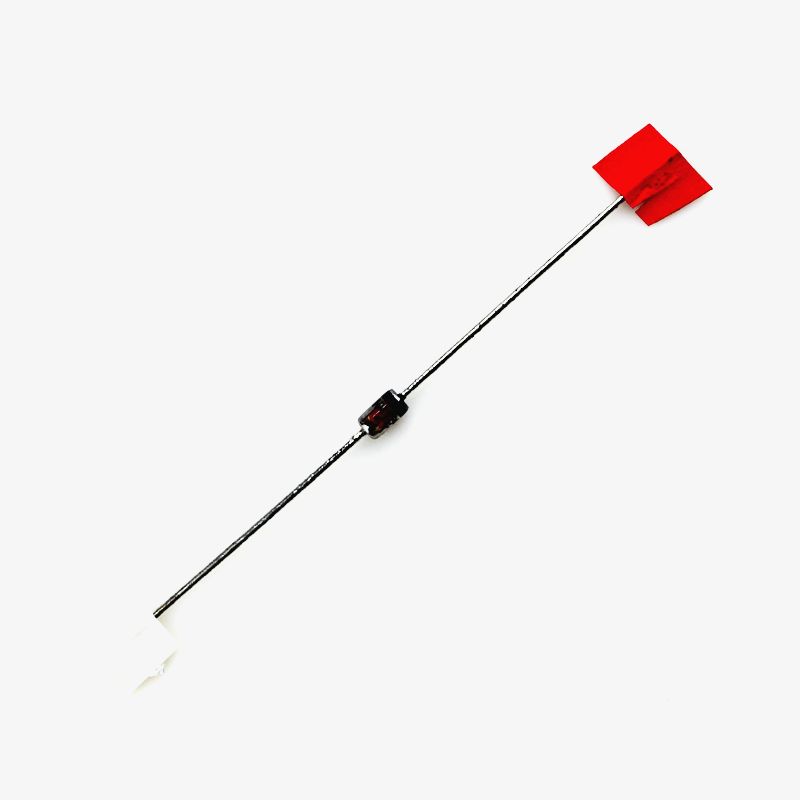

1N4734A 5.6V Zener Diode
1N4734A 5.6V Zener Diode
Click to zoom in
  • 3-5 Days Delivery

    Fast Delivery

  • Dedicated Support

    Mon to Sat - 10 AM to 6.30 PM

  • Free Shipping

    On orders above INR 599

  • Cash On Delivery

    COD available on all orders

1N4734A 5.6V Zener Diode

QC0231
1669 In stock
Rs. 3.00 (Exc. GST)
Rs. 3.00

This 1N4734A Zener diode is another form of diode which comes in Through-hole package. Zener diode will mostly be used in a protection circuit or in a crude voltage regulator circuit. Either way, it very important to remember that a Zener diode should always be used along with a Zener resistor. The 1N4734A 5.6V Zener Diode has a nominal voltage of 5.6V and like other types of Zener diodes, it can be used as a reference element in voltage regulation, and it can also be used in switching applications and clipper circuits.

           1N4728A


Equivalent to the 1N4734A 5.6V zener diode, other zener diodes including the 10V zener, 9.1 zener, 8.2 zener,  7.5 zener and 6.8 zener can be found from the website.

Features of the 1N4734A 5.6V Zener Diode

  • Package type : Through hole
  • Nominal Voltage : 5.6V
  • Tolerance : ± 5%
  • Power Dissipation : 1.0 Watt
  • Storage Temperature : -65 to 175 degree C
  • Weight : 0.35g
  • Case type : Do-41 Glass Case
  • High reliability
  • Very sharp reverse characteristics.


Mechanical Drawing of 1N4734A 5.6V

                Mechanical Drawing of 1N4728A

Additional Resources

Package Includes

1 x 1N4734A 5.6V Zener Diode
