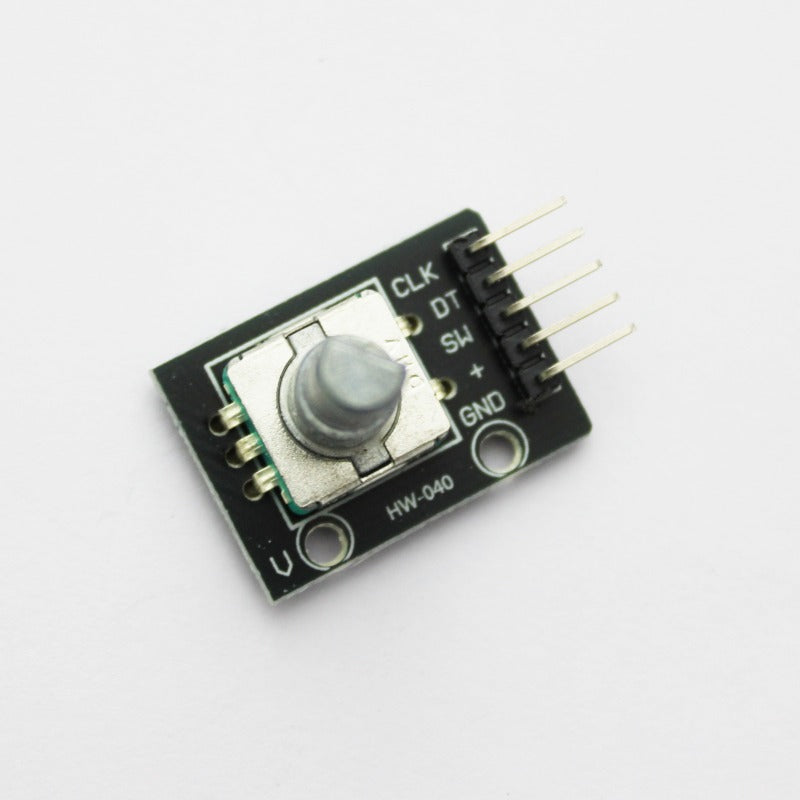

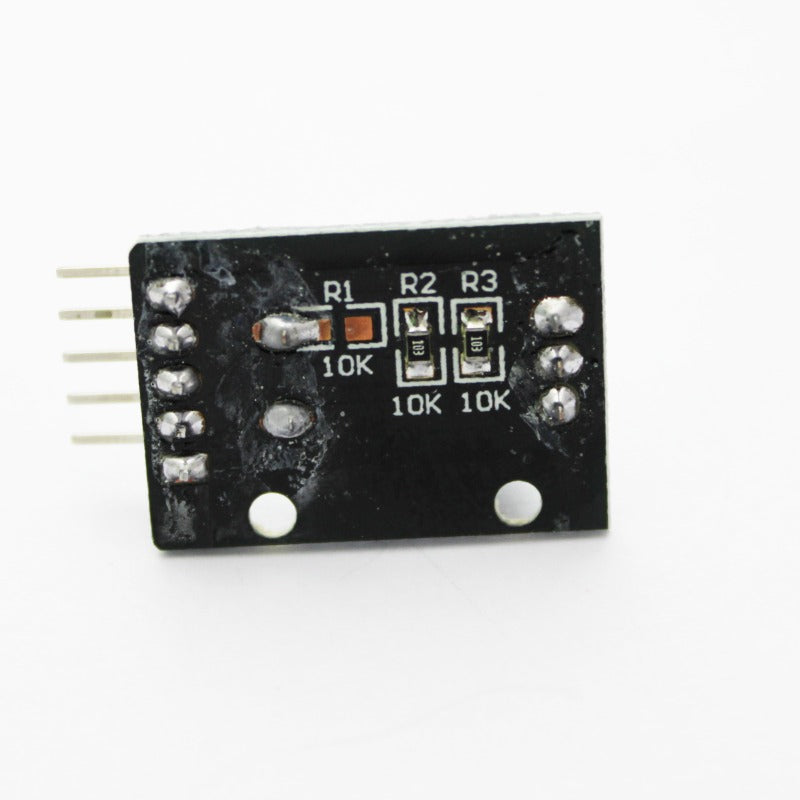

KY-040 Rotary Encoder Module
SKU:
MOD-QC0878
Availability:
300
In Stock
- Rs. 45.00
- Rs. 45.00
- Unit price
- per
Subtotal:
Rs. 45.00
Description
xThis is a 360-degree rotary encoder module based and designed on the Keyes KY-040 rotary encoder, which is a rotary input device (as in knob) that provides an indication of how much the knob has been rotated AND what direction it is rotating in.
It is quite suitable for applications such as a volume knob and varying lighting voltage. The rotary encoder module is also easy to use in prototyping applications such as automotive electronics, multimedia speakers, instrumentation, smart home, digital potentiometers, stepper, and servo motor control and more.
Package Includes:
1 X KY-040 Rotary Encoder Module
KY-040 Rotary Encoder Module Pin Description:
Specifications:
- Operating Voltage: 3.3V ~ 5V
- Full Rotation Angle: 360 degrees (no stop point)
- Number of pulse: 15
- Rotation Life: 30000 ± 200 Cycles
- Contact Resistance: ≤ 100mΩ
- Insulation Resistance: 100MΩ or more
- Oscillation: <10ms Press
- Working Temperature: -30 ℃ ~ +80 ℃
- Dimensions: (30 x 18 x 30) mm
- Output: 2-bit gray code
- Weight: 10g
- Compatible with Arduino/Raspberry Pi controller board
