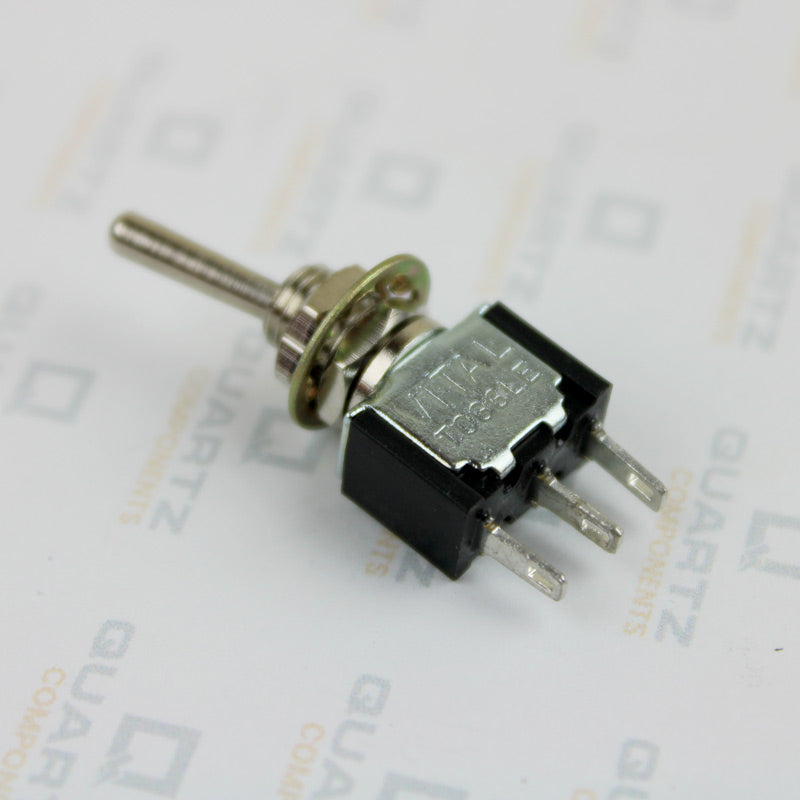

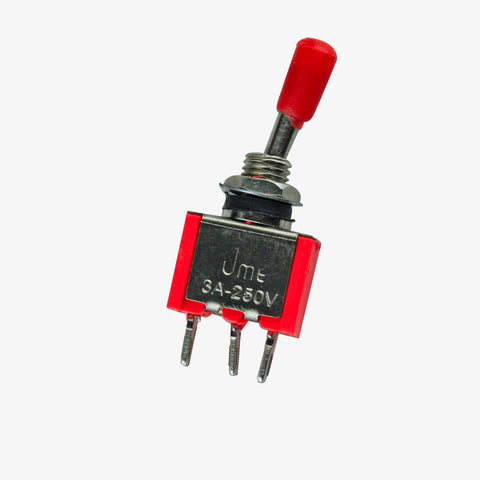

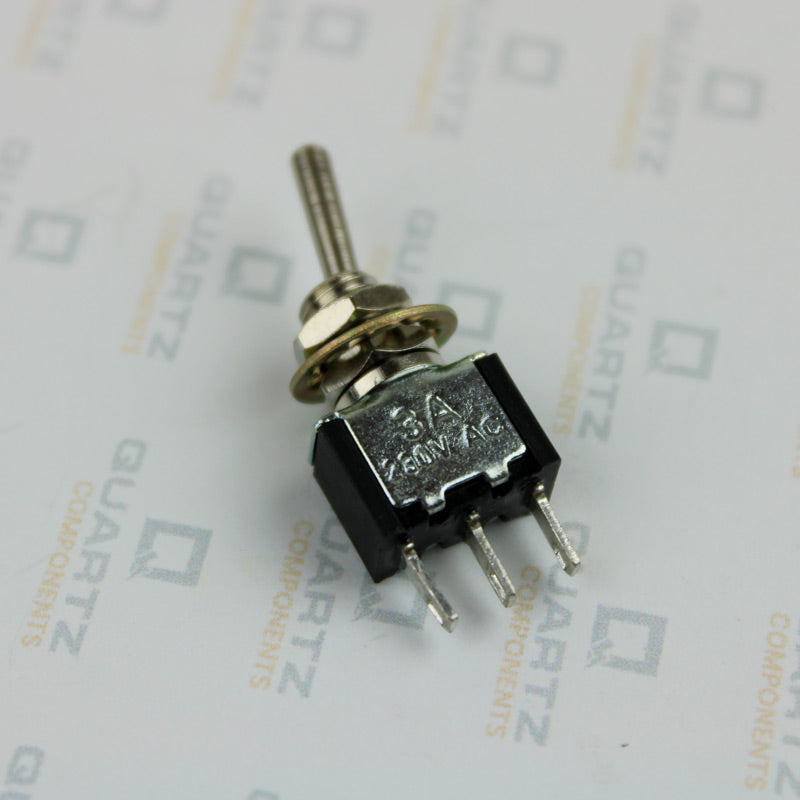

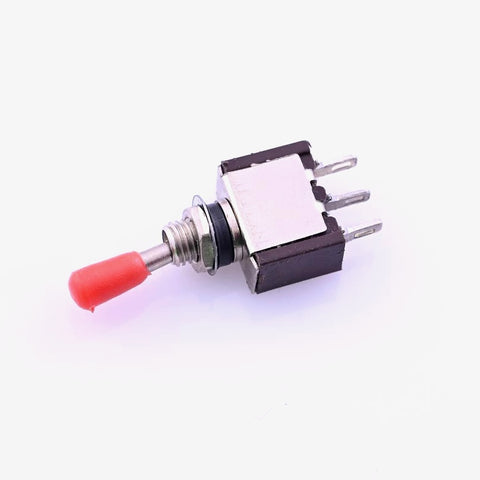

On-Off Toggle Switch / 3-pin 2-Way SPDT Switch

This is a Single Pole Double Throw (SPDT) Toggle On/Off Switch that is commonly used to toggle power supply to a project. The switch can handle up to 3A at 230VAC and 3A at 125VAC. It can also be used to control DC voltage. The switch comes with two hex nuts and a locking washer to securely mount the switch to the casing.

SPDT switches is a three terminal switch which is used to control two different lines mechanically unlike a relay which is controlled by the low voltage signal from a microcontroller. The Toggle Switch can be used for controlling a process and changing the parameters of it. This is a SPDT switch which means that the two different lines and it only has two position to control them. It can control 230Vac lines if you want to use it with AC lines also it can be used with DC too. It can be used with hole diameter 6mm. It can handle upto 3A current if used with 230Vac and upto 6 A if the voltage is 125Vac. It can be used in industrial application, in control systems, mode changing, switching operations etc.

Note: Please note that the actual item's color may vary from the image displayed.

Product Description

This Toggle switch just work as mechanical relay you need to connect the common terminal to the application you need to control and two remaining terminals to the controlling inputs.

Specifications

• SPDT Mechanical Toggle Switch
• 6mm Screw Diameter
• 6A current @ 125Vac
• 3A current @ 230Vac
• 3 pins switch

Package Contents

1× Miniature Toggle Switch MTS-102
