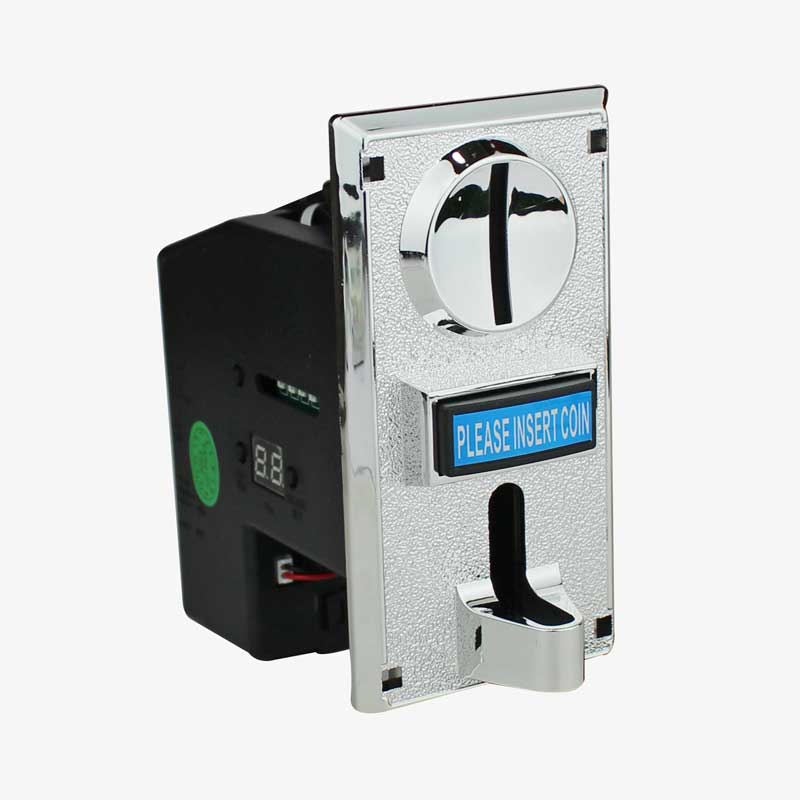

Multi Coin Acceptor Programable for Vending Machines

QC1798
12 In stock
Rs. 950.00 (Exc. GST)
Rs. 950.00

Are you using electronics to try to make a quick buck? Why stop at dime-sized items? This coin acceptor will accept as many as six distinct coin types! This programmed coin acceptor makes it simple to monetize your next project, regardless of whether you're creating your own arcade cabinet or simply charging entrance fees to your home.

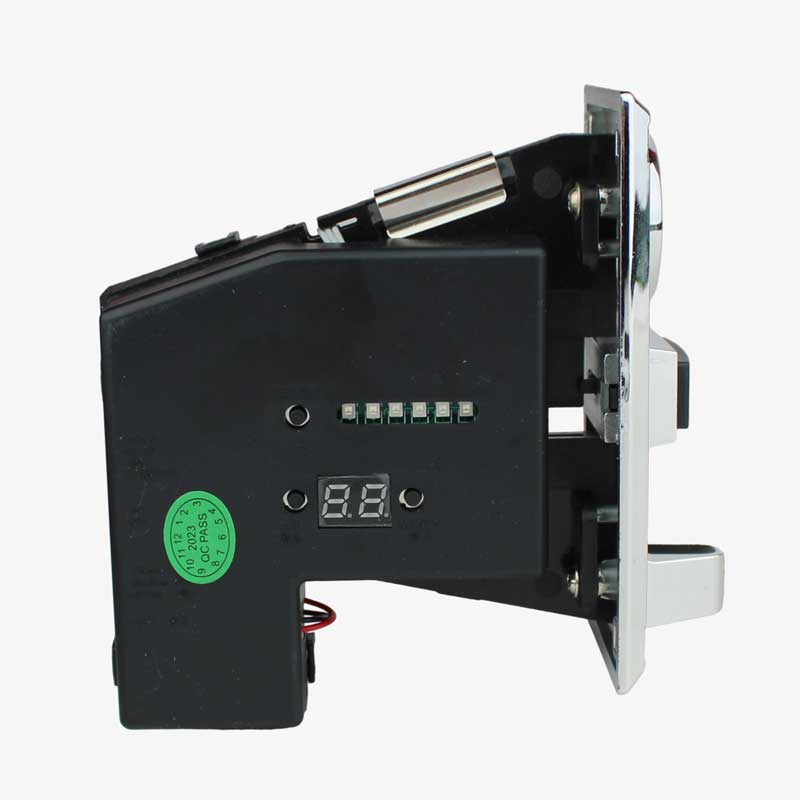

The thickness, diameter, and fall time of the coins are used by the sensors in this coin acceptor to identify them, and it is entirely customizable so you are not restricted to any certain sort of currency. Select a coin profile, insert a number of coin samples (or the same coin again), and then specify the value using the buttons and 7-segment display on the side of the device. Once the coin profiles have been programmed, you may read the serial output of the coin acceptor to find out the value of each coin as it is inserted. These values are reported as binary bytes, and the unit's baud rate is adjustable.

Along with a (very loud) alert beeper and a coin reject feature, this coin acceptor also contains a coin reject button that your controller may use to instruct it to stop accepting coins. A pocket full of change, a 12 VDC supply, and a place for the change to fall once it is accepted are all you need to get the coin acceptor running. It can be easily interfaced with any sensors.

Therefore, it's unlikely that you'll become wealthy by creating your own vending machines, but access control using various token sizes or even a virtual vending machine where you can buy MMORPG stuff could be interesting. A ton of awesome coin-operated projects are already planned and ready to go!

Key Features of the Coin Acceptor for Vending Machines:

  • Ability to accept up to six different forms of coins and tokens from around the world.
  • High accuracy and intelligent CPU software control.
  • Automatic error checking without using a computer.
  • Freely configurable pulse output.
  • Protection against electromagnetic interference and electric shock.

How to Configure the Vending Machine Coin Acceptor (Multi-Coin Acceptor):

  1. Press the setting key (8) to choose several currency systems.
  2. Use the accurate key or broaden key to increase or decrease the numerical value.
  3. Press the setting key once the setup is complete to confirm.
  4. The letter H will appear in the sentence (the quantity of sampling for various currency values).
  5. The letter P will appear in the sentence (the numerical value for signal output of various currency values).
  6. The letter F will appear in the sentence (the precision of various currency values).
  7. Set the desired money according to the parity of argumentation.
  8. Turn off the power when the letter E appears so that it can reopen.

The multi-coin reader machine can take up to six different kinds of coins and tokens from across the world. It has an integrated intelligent CPU software control for high accuracy. Self-programming features are also included. It guards against electromagnetic interference and electrical shocks.

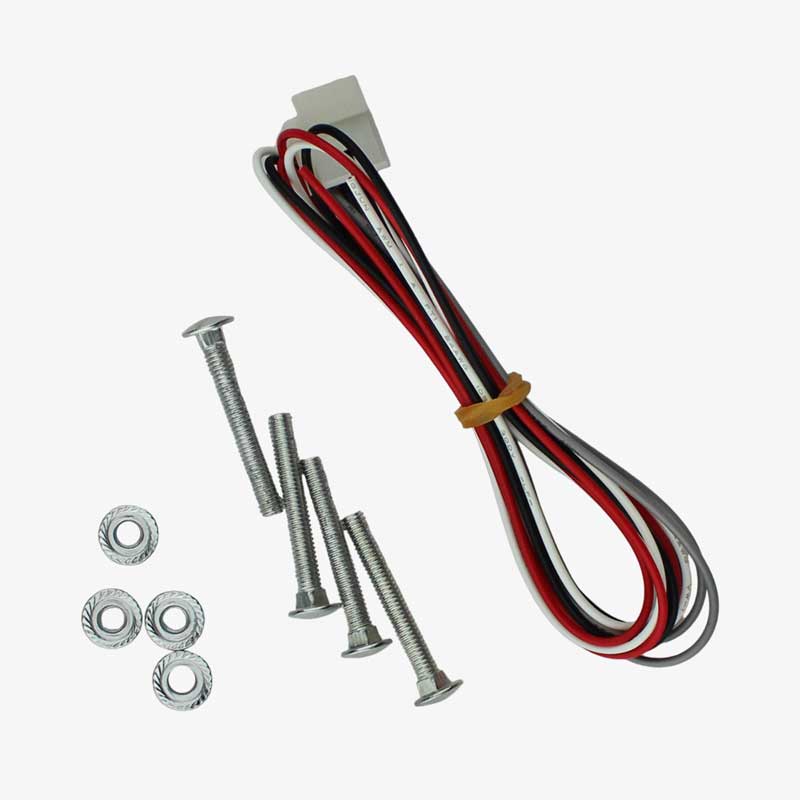

Package Includes:

  • 1 x Multi Coin Acceptor Programable for Vending Machines

Specifications:

  • Identify accuracy rate: 95%
  • Diameter: Ф15mm-Ф29mm
  • Thickness: 1.8mm-3.0mm
  • Operating voltage: DC12V ± 10%
  • Working current: 50mA
  • Recognition speed: ≤0.6sec
  • Dimensions: 6.3 x 6 x 12.3 cm
  • Weight:
