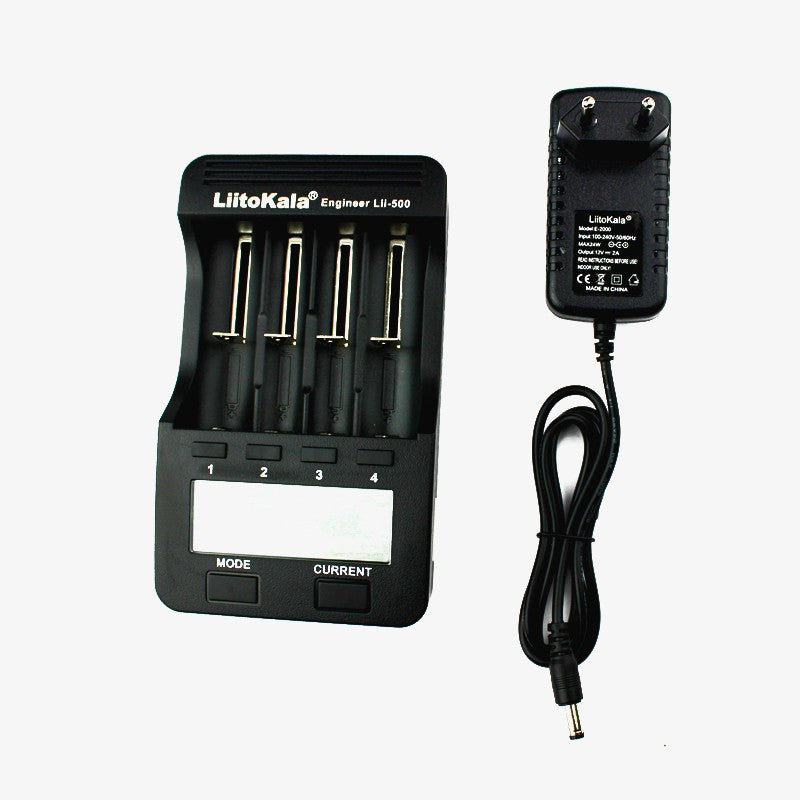

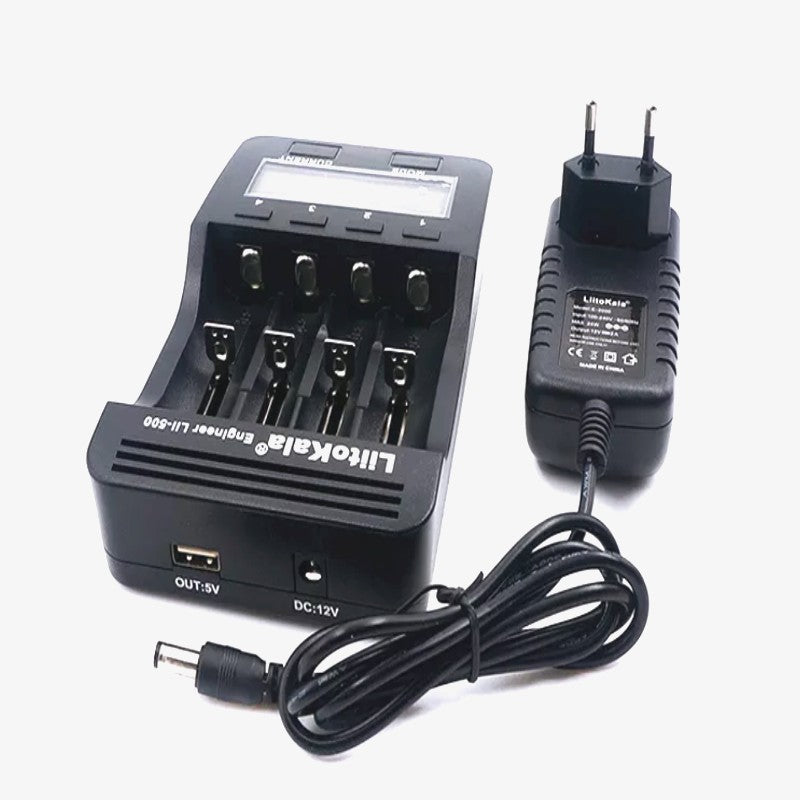

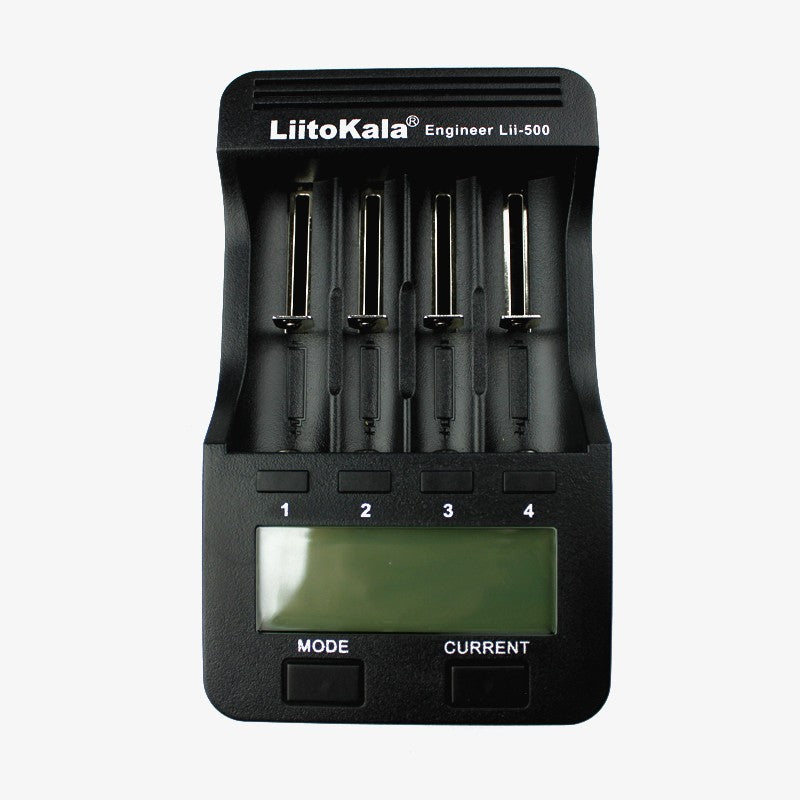

LiitoKala Lii-500 Smart Battery Charger – Specifications
Input / Output:
- DC Input Voltage: 12V / 2.0A
- USB Output: 5V / 1000mA
- Discharge Current: 250mA / 500mA
- Termination Method: Intelligent voltage monitoring
Charging Current:
- Li-ion Charging Voltage: 4.2V
- Charging Current Options: 300mA / 500mA / 700mA / 1000mA (Selectable for each slot)
- Ni-MH Charging Voltage: 1.48V
- Charging Current Options: 300mA / 500mA / 700mA / 1000mA
Compatible Battery Types:
- Li-ion: 18650, 26650, 14500, 16340, 17500, 18500, 10440, etc.
- Ni-MH/Ni-CD: AA, AAA, A, SC, C
Display Features:
Large LCD screen displaying: Voltage (V), Current (mA), Charging Time (H), Capacity (mAh), Internal Resistance (mR), Independent display for each slot.
Operating Modes:
- Charge Mode: Individual slot operation with user-selectable current
- Quick Test Mode: Rapid two-step battery capacity detection (full charge + check)
- Normal Test Mode: Standard three-step capacity detection (charge → discharge → recharge)
Protection Features:
- Overcharge & over-discharge protection
- Short circuit protection
- Temperature monitoring
- 0V activation function for deeply discharged batteries
- Automatic detection of bad or reverse-installed batteries
- Delta V and Zero Delta V for Ni-MH/Ni-CD battery termination
- Incompatible battery detection (1.65V - 2.2V range can't be charged)
Mechanical:
- Dimensions: 162 mm (L) × 96 mm (W) × 36 mm (H)
- Color: Black
- Build: Durable ABS plastic
Buttons & Operation: 6 Keys:
- MODE: Switch between charging/test modes
- CURRENT: Select charging current
- 1234: View individual slot data
- Hold the MODE button for 3 seconds to switch between charge, quick test, and normal test modes. Use slot buttons (1-4) to navigate and monitor each battery's status independently.
Package Includes:
1 x LiitoKala Lii-500 Smart Battery Charger + 12V 2A Adapter
