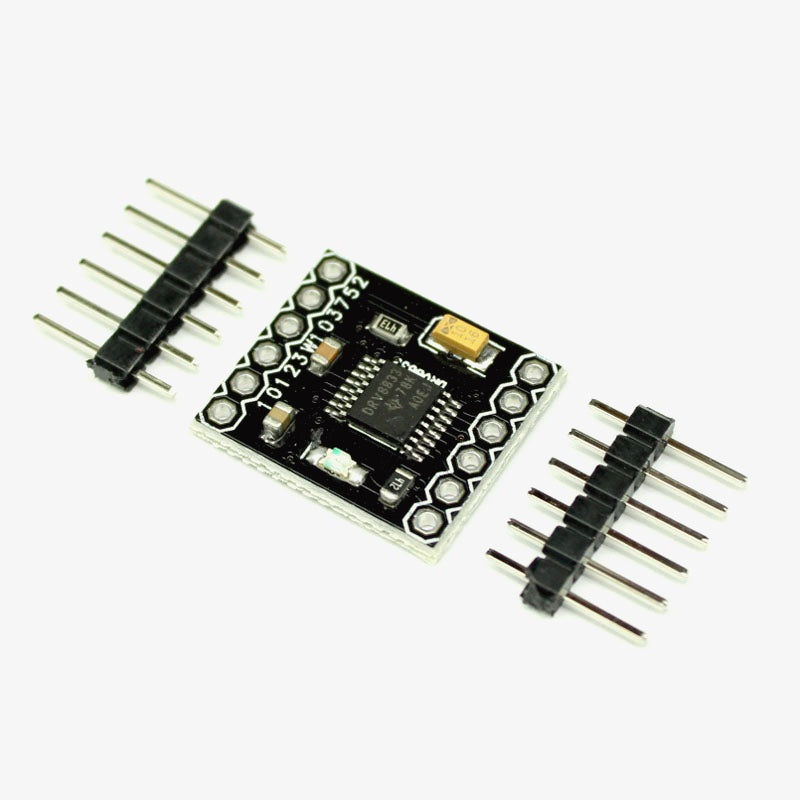

DRV8833 2 Channel DC Motor Driver Module DRV8833 2 Channel DC Motor Driver Module

QC0824

35 In stock

Rs. 63.00
(Excluding 18% GST)
-
+
Rs. 74.34
(inc. GST)
[Delivery: 2 to 5 days]

DRV8833 is a dual H-bridge motor driver IC that can be used for bidirectional control of two brushed DC motors at 2.7 V to 10.8 V. The maximum supply current is limited up to about 1.2 A per channel continuously whereas the peak current rating is 2A per channel for a few seconds. It is a small and useful breakout board that comes with all components pre soldered in this module. The DRV8833 has built-in current-limiting, and no need for externally supplied logic voltage.

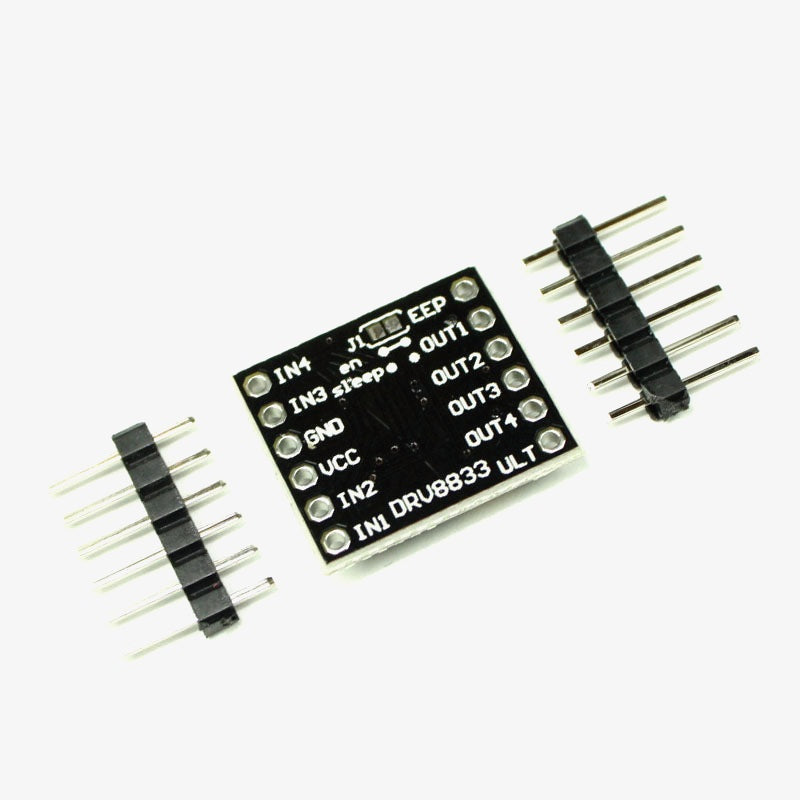

DRV8833 Module Board pinout:

DRV8833 Module




Specifications:

  1. Dual-H-bridge motor driver:
  2. Operating voltage: 2.7‌‌ V to 10.8 V
  3. Output current: 1.2 A continuous (2 A peak) per motor.
  4. Motor outputs can be paralleled to deliver 2.4 A continuous (4 A peak) to a single motor.
  5. 3V- and 5V Logic Voltage compatible
  6. Under-voltage lockout and protection against over-current and over-temperature.
  7. Reverse-voltage protection circuit.
  8. Current limiting can be enabled by adding sense resistors.


DRV8833 Module Board Dimension and footprint:

DRV8833 Module Dimension

DRV8833 Module Board Applications:

  • Motor Control
  • Industrial Automations
  • Solenoid Control
  • Small Robotics


Example Projects on DRV8833 Module Board:

DRV8833 Interfacing With Arduino

Additional Resources:

DRV8833 Datasheet



Package Contains

1x DRV8833 Module Board
