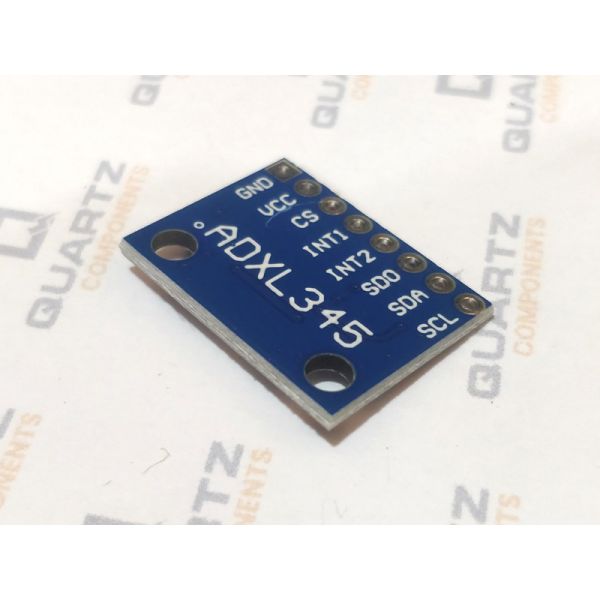

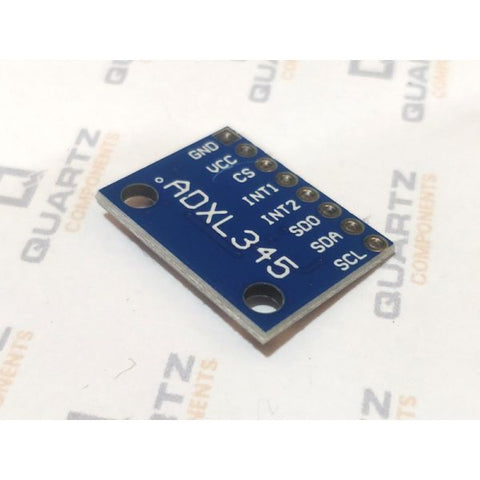

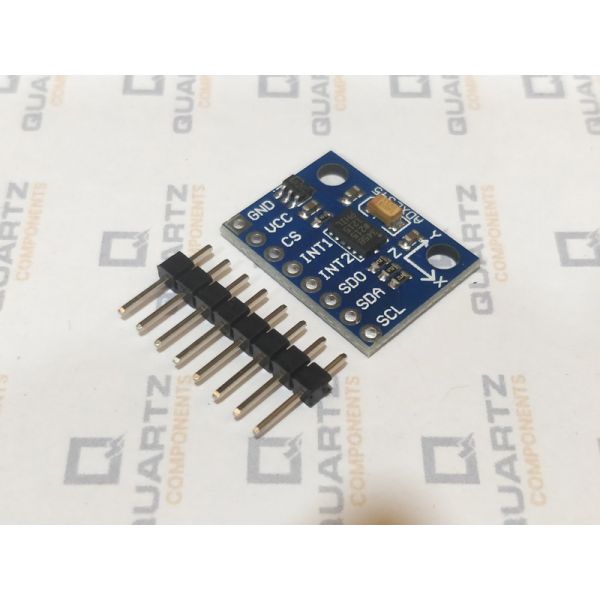

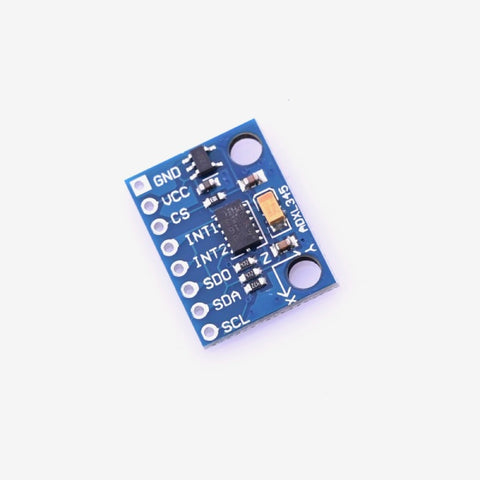

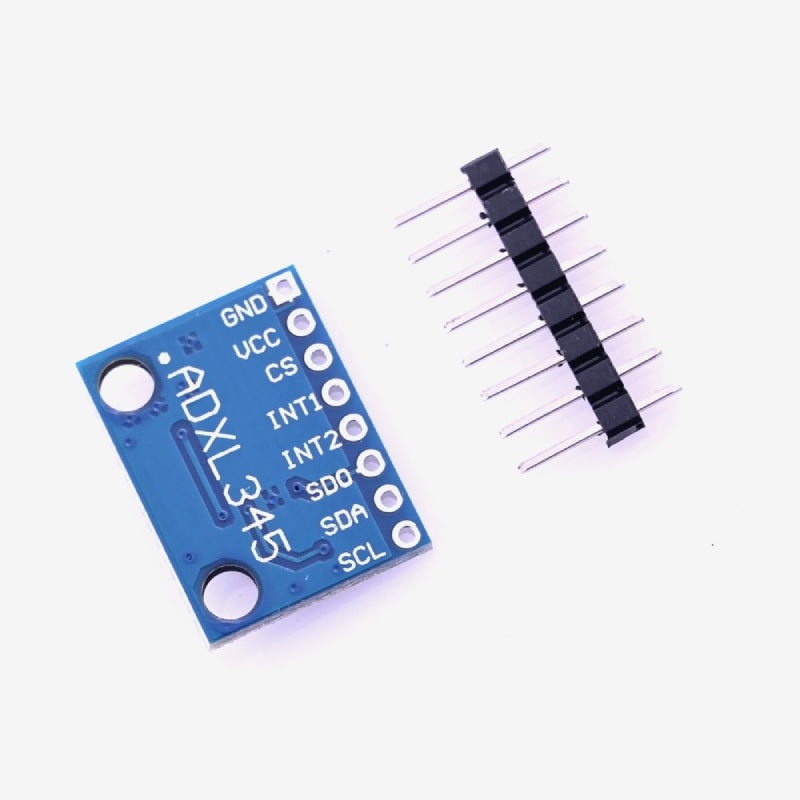

ADXL345 3-Axis Digital Accelerometer Sensor ADXL345 3-Axis Digital Accelerometer Sensor

QC0157

9 In stock

Rs. 173.00
-
+
Rs. 173.00
(inc. GST)

Accelerometer is used to measure both static acceleration i.e. gravitational and dynamic acceleration i.e. motion or shock. In most of the robotics applications, it is used to measure the tilt of the object. The ADXL345 is a low power, MEMS, three-axis accelerometer module with both SPI and I2C interfaces to communicate with your controller like Arduino, Raspberry Pi, PIC, etc. It also has user-selectable sensitivity and 10-13bit of resolution. This Digital Accelerometer has a voltage regulator on board hence can be connected to both 5V and 3.3V powered controllers. Its high-resolution 4mg/LSB also enables it to measure less than 1° change in the orientation of the object. The ADXL Sensor can be used in Robotics applications, measuring vibration in a machine, in the data acquisition system of a vehicle, measuring the motions of a bridge, etc. It can also be used to detect taps on an object.



Specifications

  • 3V-6V DC Supply Voltage
  • Measuring range ±16g
  • Onboard LDO Voltage regulator
  • Built-in Voltage level convertor (MOSFET based)
  • Can be interface with 3V3 or 5V Microcontroller.
  • All necessary Components are populated.
  • Ultra-Low Power Consumption: 40uA in measurement mode, 0.1uA in standby@ 2.5V
  • Free-Fall Detection
  • Digital Output with SPI and I2C interfaces



Product Description



To connect the ADXL345 Module to your controller like Arduino, Raspberry Pi, or PIC, you first need to power the device from either 5V or 3.3V supply. Then based on your requirement, you can connect I2C or SPI connections to the respective pins on your controller and you are good to go.



Additional Resources

ADXL345 Datasheet

Interfacing ADXL345 with Arduino UNO

Accelerometer is used to measure both static acceleration i.e. gravitational and dynamic acceleration i.e. motion or shock. In most of the robotics applications, it is used to measure the tilt of the object. The ADXL345 is a low power, MEMS, three-axis accelerometer module with both SPI and I2C interfaces to communicate with your controller like Arduino, Raspberry Pi, PIC, etc. It also has user-selectable sensitivity and 10-13bit of resolution. This Digital Accelerometer has a voltage regulator on board hence can be connected to both 5V and 3.3V powered controllers. Its high-resolution 4mg/LSB also enables it to measure less than 1° change in the orientation of the object. The ADXL Sensor can be used in Robotics applications, measuring vibration in a machine, in the data acquisition system of a vehicle, measuring the motions of a bridge, etc. It can also be used to detect taps on an object.



Specifications

  • 3V-6V DC Supply Voltage
  • Measuring range ±16g
  • Onboard LDO Voltage regulator
  • Built-in Voltage level convertor (MOSFET based)
  • Can be interface with 3V3 or 5V Microcontroller.
  • All necessary Components are populated.
  • Ultra-Low Power Consumption: 40uA in measurement mode, 0.1uA in standby@ 2.5V
  • Free-Fall Detection
  • Digital Output with SPI and I2C interfaces



Product Description



To connect the ADXL345 Module to your controller like Arduino, Raspberry Pi, or PIC, you first need to power the device from either 5V or 3.3V supply. Then based on your requirement, you can connect I2C or SPI connections to the respective pins on your controller and you are good to go.



Additional Resources

ADXL345 Datasheet

Interfacing ADXL345 with Arduino UNO
