Arduino Breakout board for A4988 Stepper Motor Control Module Arduino Breakout board for A4988 Stepper Motor Control Module

QC0823

10 In stock

Rs. 79.00
-
+
Rs. 79.00
(inc. GST)
[Delivery: 2 to 5 days]

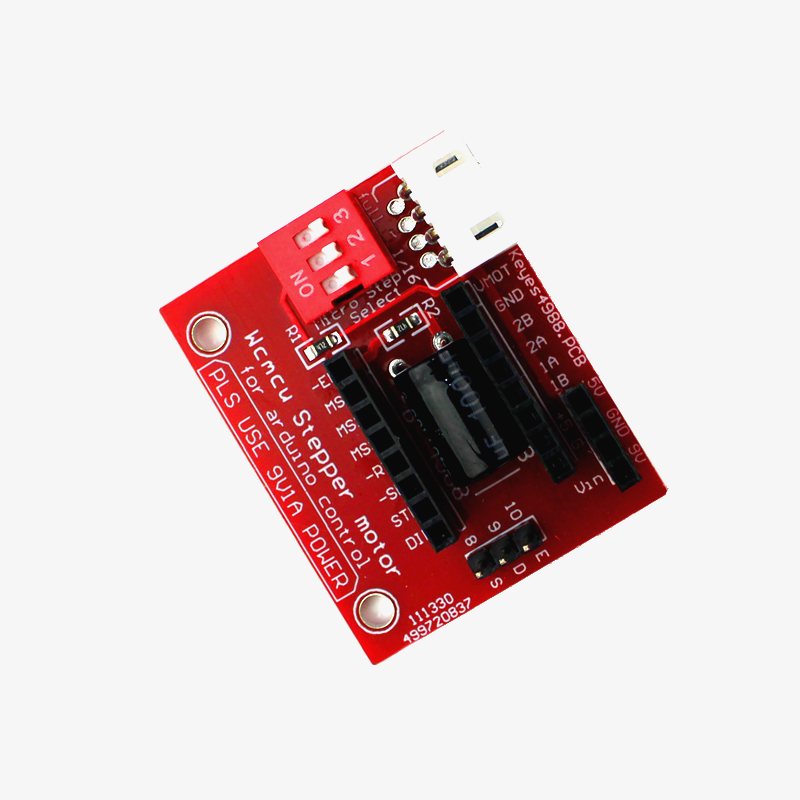

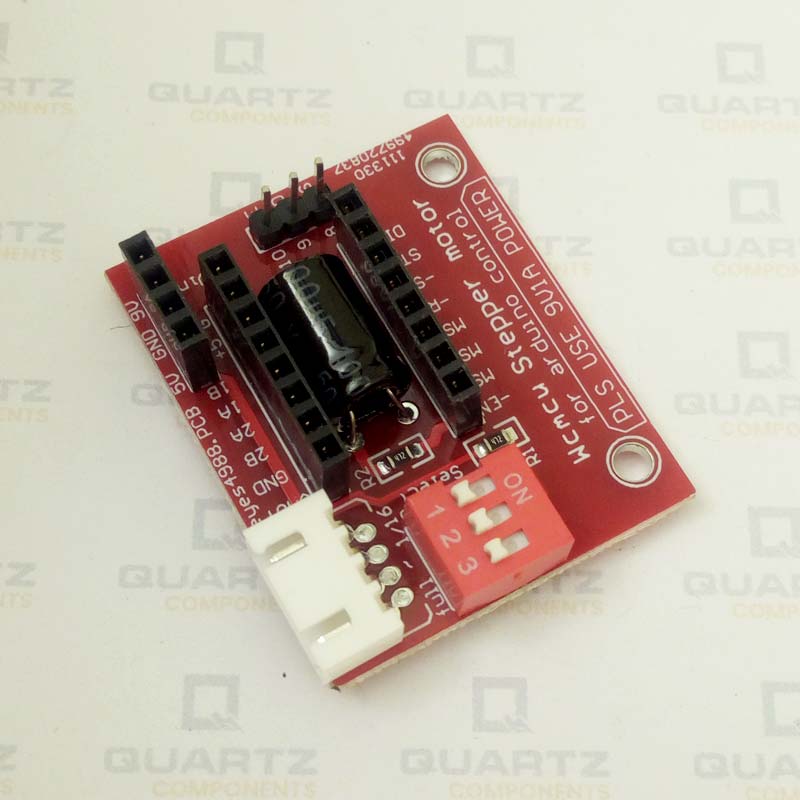

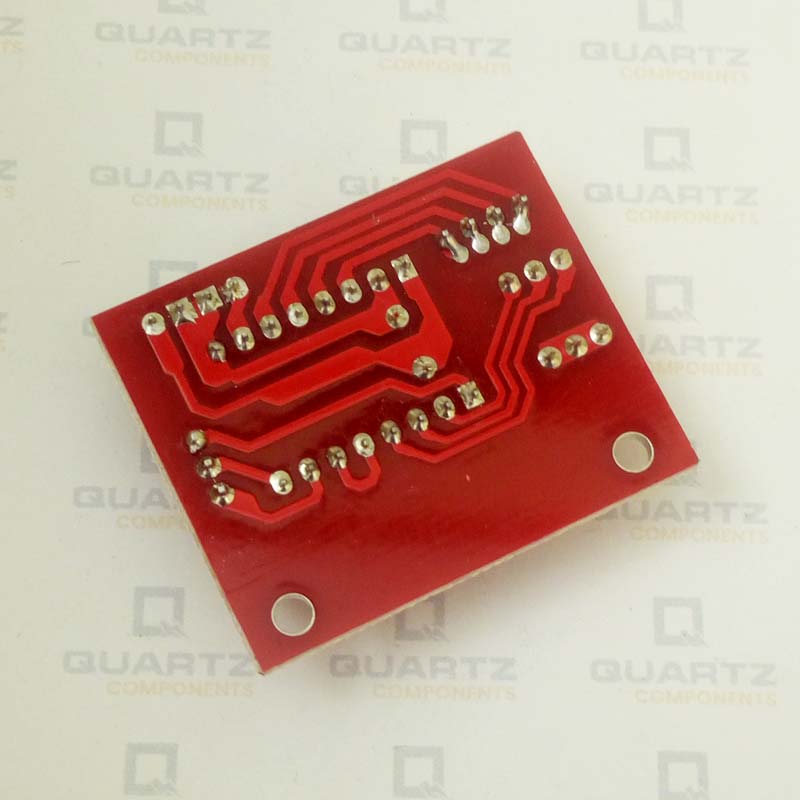

The A4988 stepper motor driver carrier is a breakout board for the TI’s A4988 micro stepping bipolar stepper motor driver. It has a proper Connector for the stepper motor, a three in 1 DIP switch for controlling the motor in 5 steps.


The motor configuration can be set using this board -

Switch 1

Switch 2

Switch 3

Motor Steps

OFF

OFF

OFF

Full Step

OFF

ON

ON

Half Step

ON

OFF

ON

Quarter Step

ON

ON

OFF

Eighth Step

ON

ON

ON

Sixteenth Step



It has Enable, Direction and Step pinouts. Supports logic level of 5V while motor supply voltage from 8-35V. It is recommended to use at least 9V in this board.


A4988 Stepper Motor Breakout Board pinout:



A4988-Stepper-Motor-Breakout-Board

Specification: -

  • Minimum operating voltage: 8.2V
  • Maximum operating voltage: 35V
  • Maximum current per phase: 2Amp
  • Minimum logic voltage: 3.0V
  • Maximum logic voltage: 5.0V
  • Micro step resolutions: Full, 1/2, 1/4, 1/8, 1/16 Selectable using DIP Switch
  • Reverse voltage protection: No


A4988 Stepper Motor Breakout Board Dimension and footprint:

Breakout-Board-Dimension

A4988 Stepper Motor Breakout Board Applications:

  • Interfacing with A4988
  • Stepper Motor Control
  • Automotive
  • Control system
  • Robotics



Example Projects on A4988 Stepper Motor Breakout Board:

A4988 Stepper Motor Breakout Board Interfacing

Additional Resources:

A4988 Datasheet



Package Contains

1x A4988 Stepper Motor Breakout Board
