3.5 Inch TFT Touchscreen Display for Raspberry Pi
SKU:
MOD-QC0045
Availability:
Out Of Stock
- Rs. 790.00
Rs. 1,119.00- Rs. 790.00
- Unit price
- per
Subtotal:
Rs. 790.00
Description

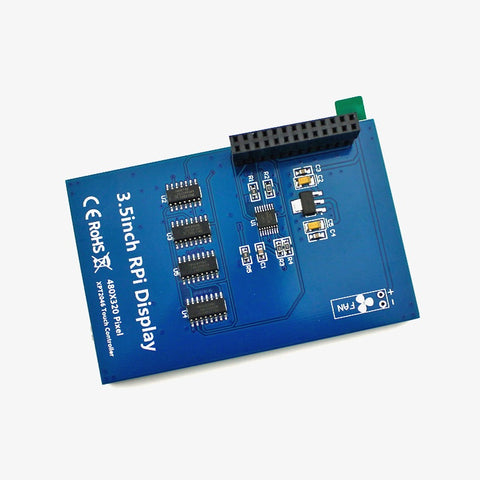

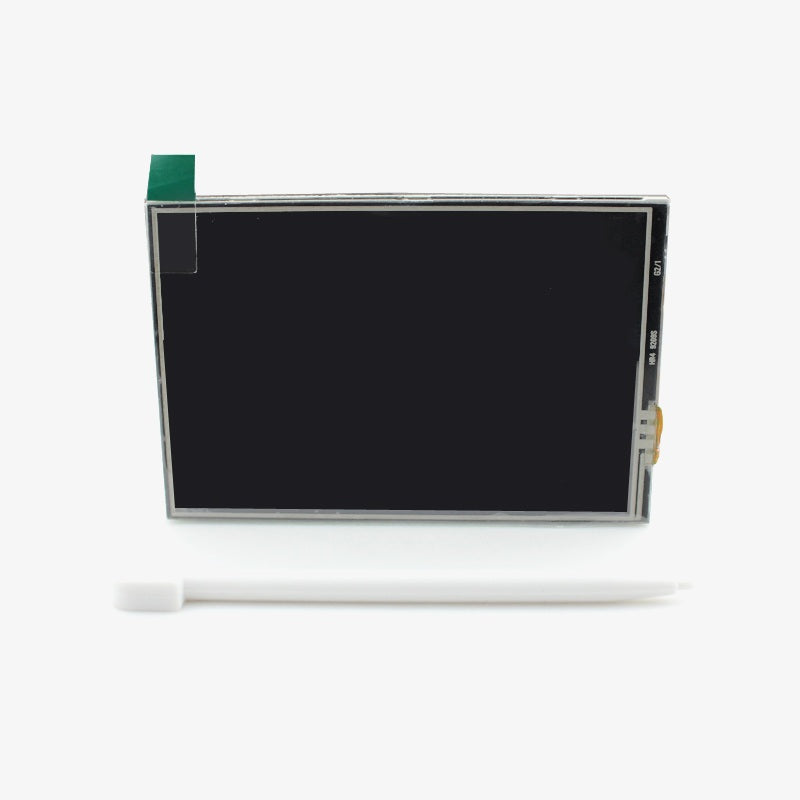

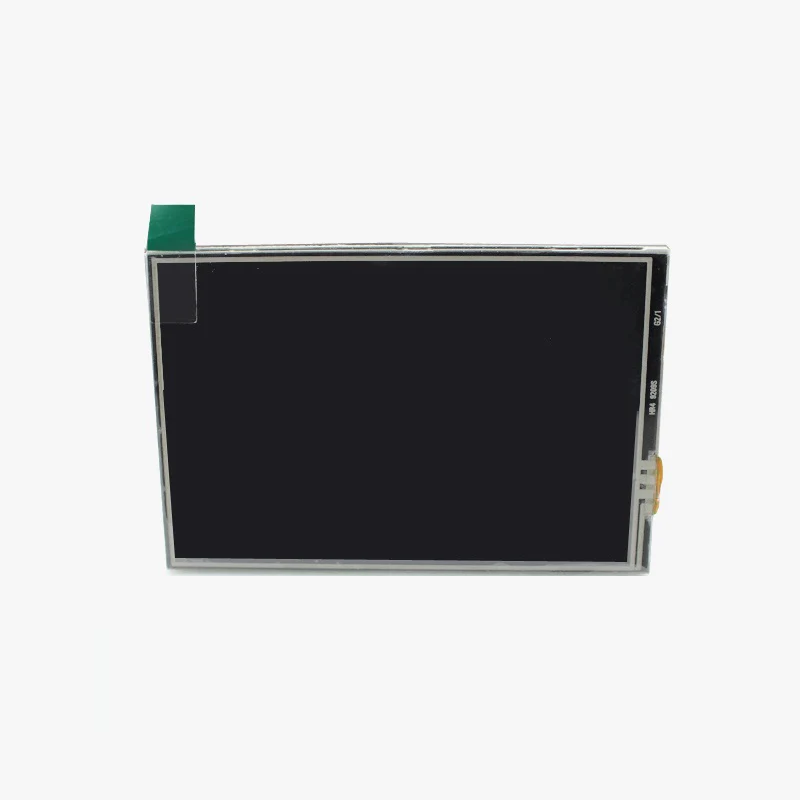

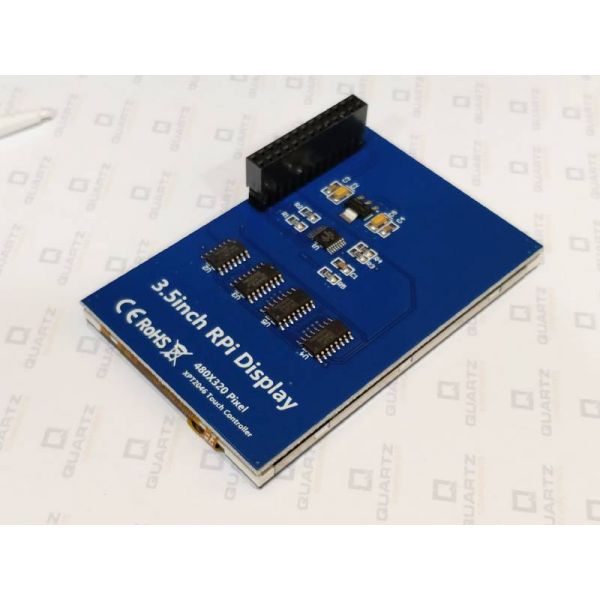

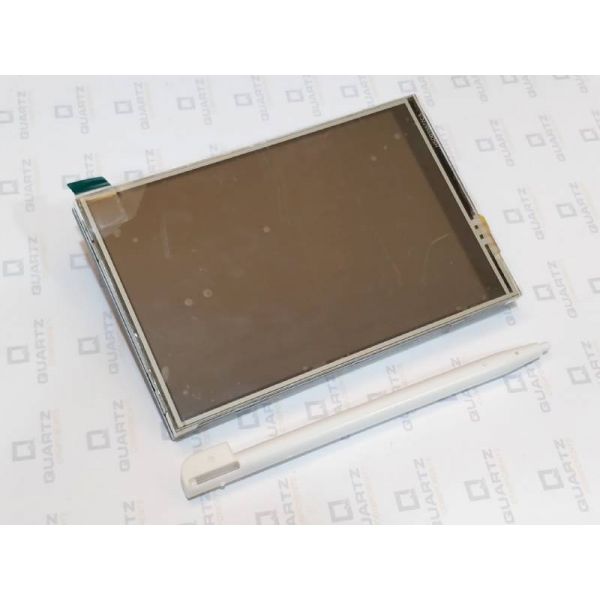

xThis 3.5" TFT display has 480x320 pixels with a 16-bit resolution and resistive touch option. It can fit directly on top of the Raspberry Pi board and gets powered from the Vcc pin, the display communicates through SPI protocol with the Pi.
Additionally, you can also use the HDMI port on pi to connect it to another display as well. It is designed for Raspberry Pi zero/Pi 2 /Pi 3 Model B / B+ and can also be used on other hardware platforms which have SPI interface. The highlight of this display module, it supports plug and play without reboot the Pi, and SPI speed runs as fast as 32MHz to support games and videos.
Pin Configuration
|
Pin No. |
Name |
Description |
|
1, 17 |
3.3V |
3.3V power input |
|
2, 4 |
5V |
5V power input |
|
3, 5, 7, 8, 10, 12, 13, 15, 16 |
NC |
Not Connected |
|
6, 9, 14, 20, 25 |
GND |
Ground Pins |
|
11 |
TP_IRQ |
Touch Panel interrupt, low level while the Touch Panel detects touching |
|
18 |
LCD_RS |
Instruction/Data Register selection |
|
19 |
TP_SI |
SPI data input of Touch Panel |
|
21 |
TP_SO |
SPI data output of Touch Panel |
|
22 |
RST |
Reset |
|
23 |
TP_SCK |
SPI clock of Touch Panel |
|
24 |
LCD_CS |
LCD chip selection, low active |
|
26 |
TP_CS |
Touch Panel chip selection, low active |
Features and Specifications:
- 320×480 resolution
- Operating Voltage: 5V
- Resistive touch control
- Touch Screen Controller: XPT2046
- Driver IC: ILI9486
- Supports any revision of Raspberry Pi (directly-pluggable)
- Compatible with Raspberry Pi A, B, A+, B+, 2B, 3B, 3B+,4B versions
- Drivers provided (works with your own Raspbian/Ubuntu directly)
- Size perfectly fits the Pi
- High quality immersion gold surface plating
- Supports Raspbian system, Ubuntu system ,kali Linux system
