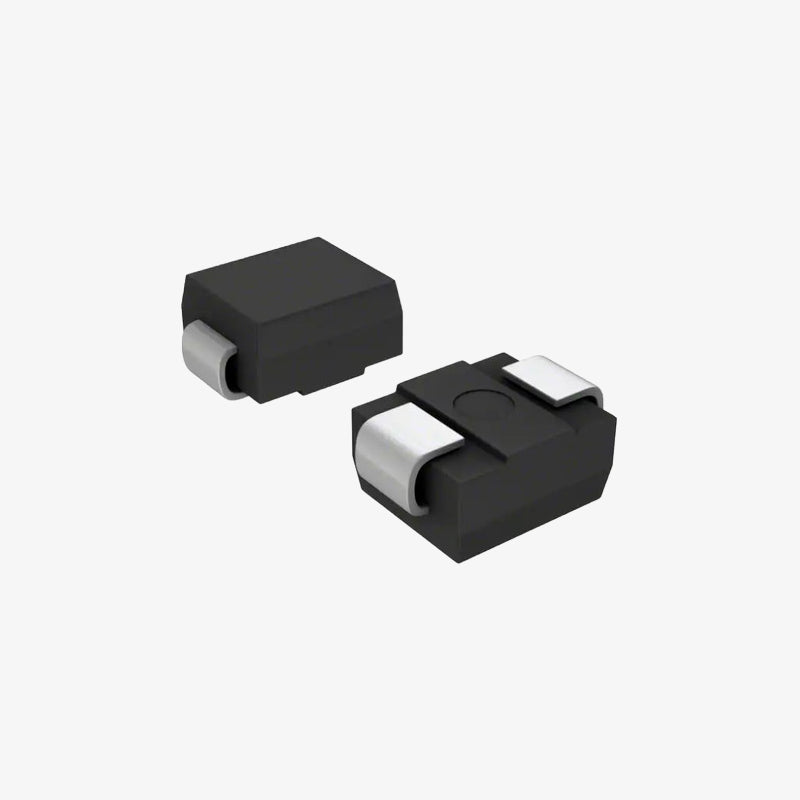

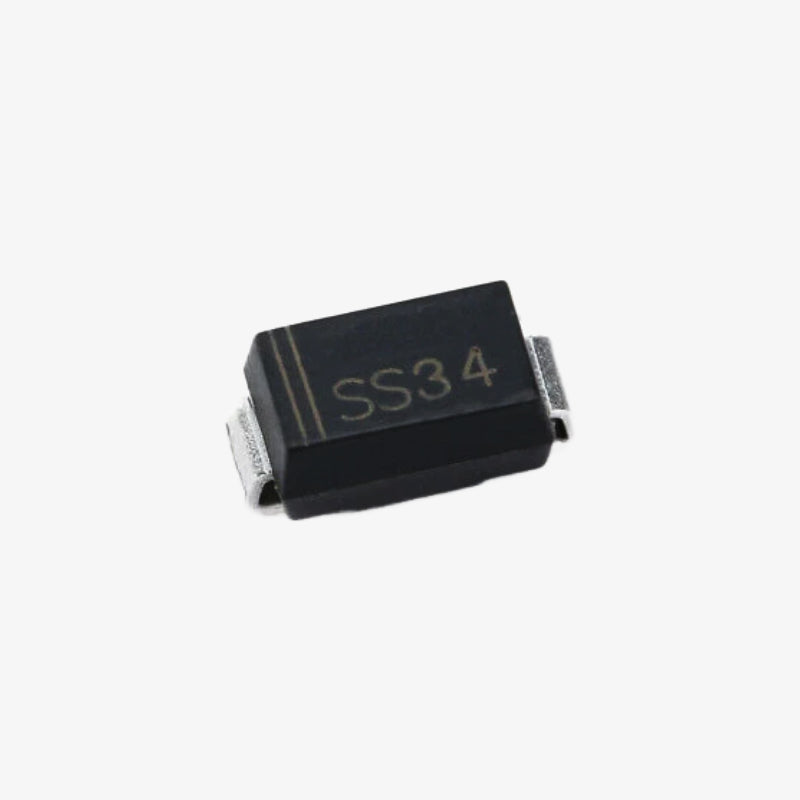

SS34 3A 40V Schottky Diode Big SMD - DO-214AB (SMC)
SKU:
SMD-QC3229
Availability:
995
In Stock
- Rs. 3.00
- Rs. 3.00
- Unit price
- per
Subtotal:
Rs. 3.00
Description
xThe SS34 is a high-efficiency Schottky barrier rectifier diode designed for low-voltage, high-frequency applications. With a maximum forward current of 3A and reverse voltage of 40V, it offers low forward voltage drop and fast switching capabilities, making it ideal for power supplies, battery chargers, DC-DC converters, and reverse polarity protection circuits.
Housed in a DO-214AB (SMC) big SMD package, this diode provides excellent thermal performance and compact PCB mounting for space-constrained designs.
Features of SS34 Schottky Diode:
- Low forward voltage drop for higher efficiency
- High surge current capability
- Fast switching with minimal reverse recovery
- Surface-mount DO-214AB (SMC) package for compact layouts
- Ideal for DC-DC converters, power supplies, and polarity protection
- High reliability and low power loss
Specifications of SS34 Schottky Diode:
- Model: SS34
- Maximum Reverse Voltage (VR): 40V
- Maximum Forward Current (IF): 3A
- Peak Surge Current (IFSM): 80A
- Forward Voltage Drop (VF): 0.5V ~ 0.55V (typical @3A)
- Reverse Leakage Current (IR): ≤0.5mA @40V
- Package Type: DO-214AB (SMC) – Big SMD
- Operating Temperature: -55°C to +150°C
Package Includes:
1 × SS34 DO-214AB (SMC) Big SMD 3A 40V Schottky Diode
