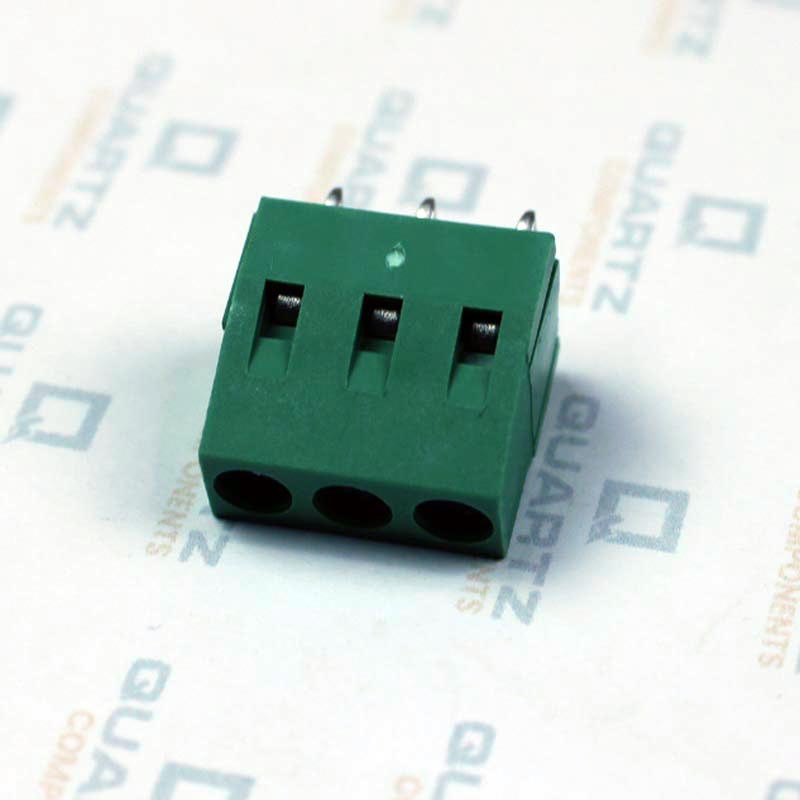

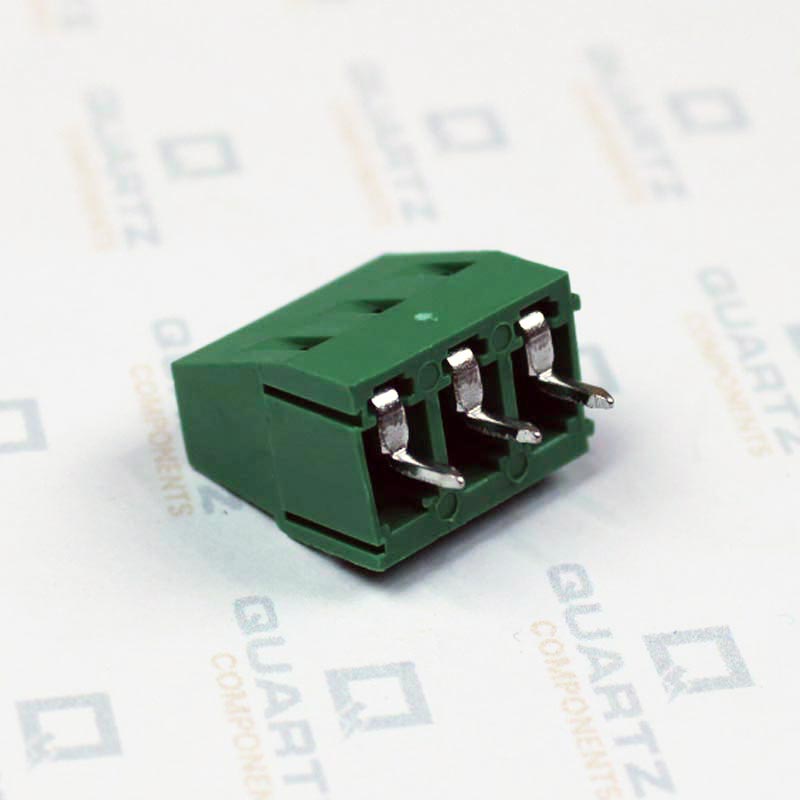

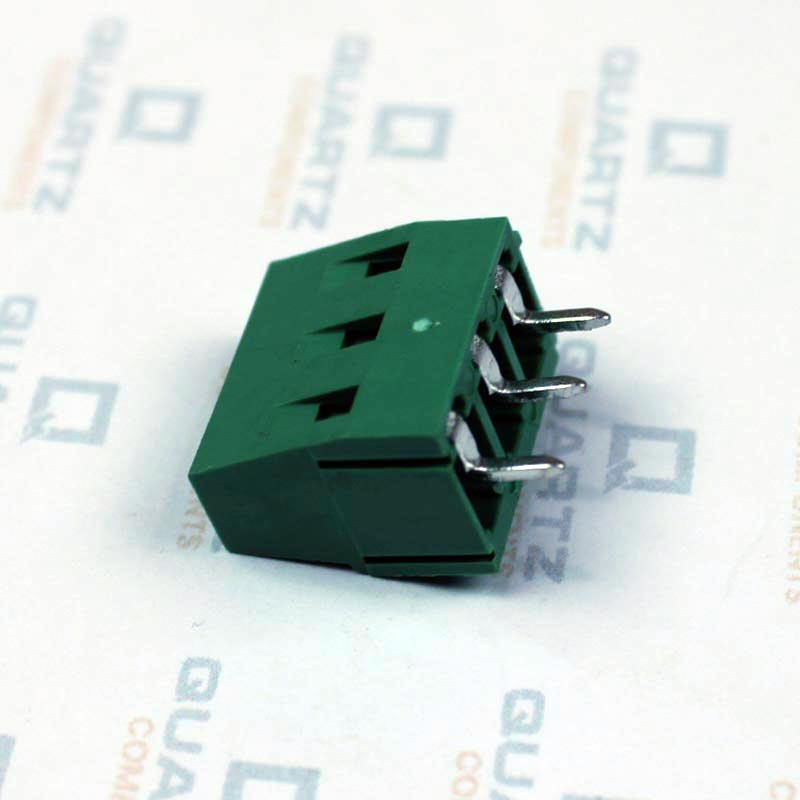

3 Pin 5mm Pitch Plug-in Screw Terminal Block Connector is a type of electrical connector, frequently used to connect wires to the PCB. The connector has a screw in each pin to fasten the wire securely. It has tin-plated brass for pin header and has nickel-plated brass contacts. However, the screw terminal blocks could provide 16A/300V nominal rating for the DC current. The Dielectric strength is more than 2kV.
Other than this, it could provide more than 1000 M ohm Insulation Resistance in 500 VDC. The connector is made using PBT (Polybutylene terephthalate) which is mechanically strong, heat resistant(UL94-V0 or V2) and has good insulation properties.
Package Contains
1x 3-Pin Screw Terminal
3-Pin Screw Terminal Features & Specifications:
- Pin header : Tin plated brass.
- Contacts : Nickel-plated brass.
- Heat resistant.
- Connector : PCB Terminal Block
- Termination. : Screw
- No. of Contacts : 3
- Allowed Wire Size (AWG) : 24 ~ 16
- Voltage(V). : 220V AC
- Operating Current (A) : 16
- Mounting Type : Through Hole
- Pin Spacing (mm) : 5
- Material : Metal and plastic
- Length (mm) : 15
- Width (mm) : 7.5
- Height (mm) : 14
3-Pin Screw Terminal Applications:
- Connecting Motors wire in the Board
- AC or DC connection in the board
- Quick disconnect related issue for handling of Boards
- Industrial connections
- Solderless Board to wire connectivity
