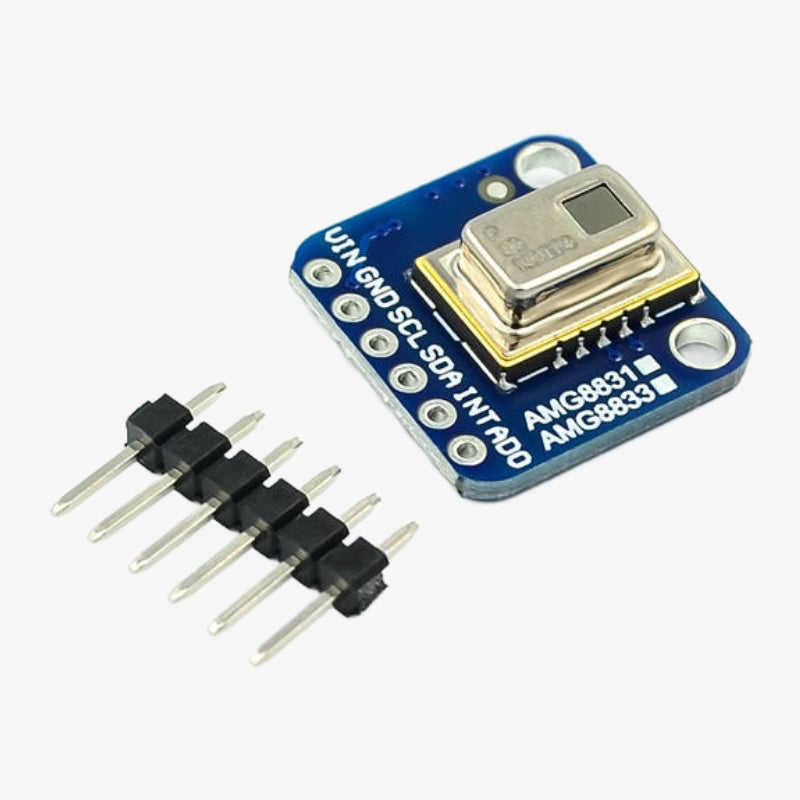

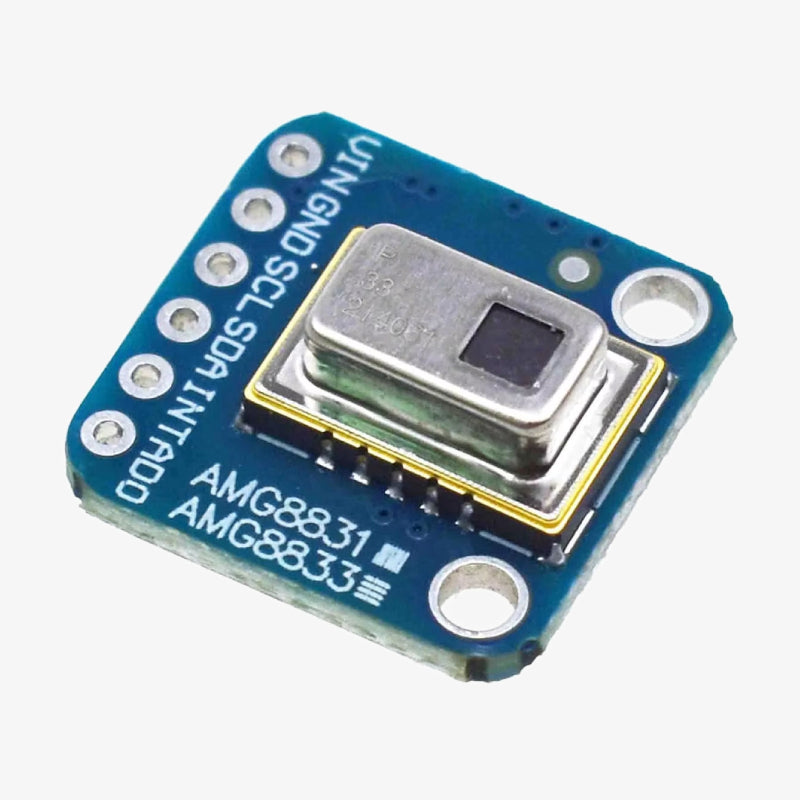

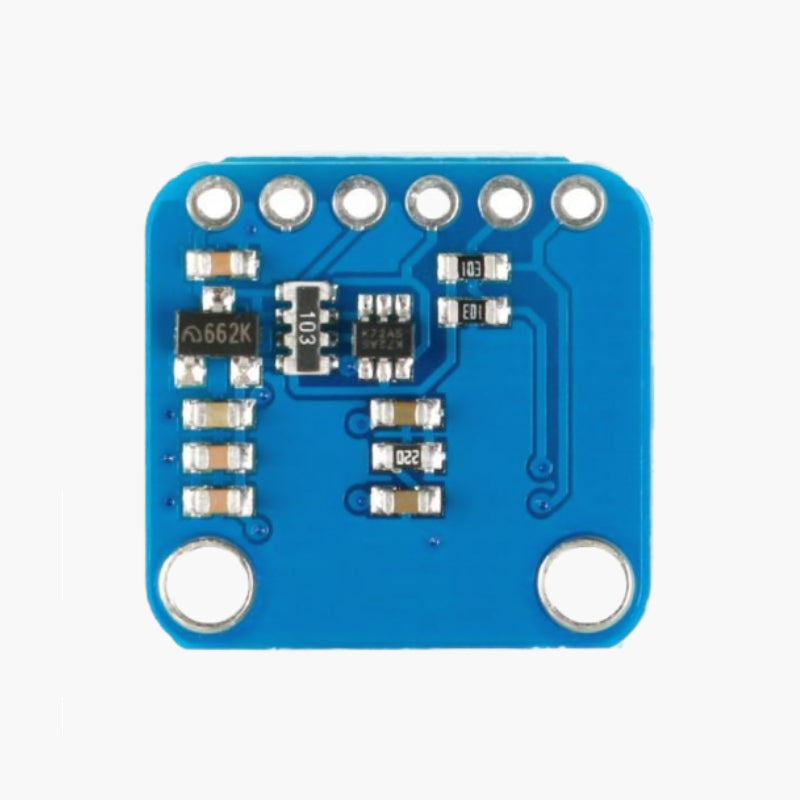

AMG8833 IR 8×8 Thermal Imager Array Temperature Sensor Module
The AMG8833 IR 8×8 Thermal Imager Array Temperature Sensor Module is a high-precision infrared thermal sensing module capable of detecting temperature variations across an 8×8 (64-pixel) grid. It provides real-time thermal imaging data, enabling visualization of heat patterns and temperature changes without physical contact. This makes it ideal for applications such as human detection, occupancy sensing, robotics, thermal mapping, and smart monitoring systems.
The sensor communicates via the I²C interface and is compatible with Arduino, Raspberry Pi, ESP32, STM32, and other microcontrollers. With high sensitivity and fast response, the AMG8833 can detect temperature differences as small as 0.25°C and measure temperatures up to 80°C.
Features:
- 8×8 IR thermal imaging array with 64 independent temperature points
- High-sensitivity infrared sensor for accurate temperature detection
- Measures temperatures from 0°C to ~80°C
- Detects temperature differences as small as ±0.25°C
- I²C digital communication for easy integration
- Compatible with Arduino, Raspberry Pi, ESP32, STM32, and more
- Real-time heat map generation and motion detection support
- Compact module suitable for embedded and portable applications
Specifications:
- Sensor Model: AMG8833 (Grid-Eye Infrared Array)
- Resolution: 8×8 (64 pixels)
- Temperature Range: 0°C to ~80°C
- Temperature Accuracy: ±2.5°C
- Temperature Sensitivity: 0.25°C
- Interface: I²C (3.3V logic)
- Operating Voltage: 3.3V DC
- Frame Rate: 1–10 FPS selectable
- Field of View (FOV): ~60° × 60°
- Dimensions: Compact PCB module
- Compatibility: Arduino, Raspberry Pi, ESP32, STM32
Package Includes:
1 × AMG8833 IR 8×8 Thermal Imager Array Temperature Sensor Module
1 × Header Pin Set (varies by stock)
