PCA9685 16-Channel 12-bit PWM/Servo Driver - I2C interface

QC1901
53 In stock
Rs. 348.00 Rs. 290.00 (Exc. GST)
Rs. 290.00

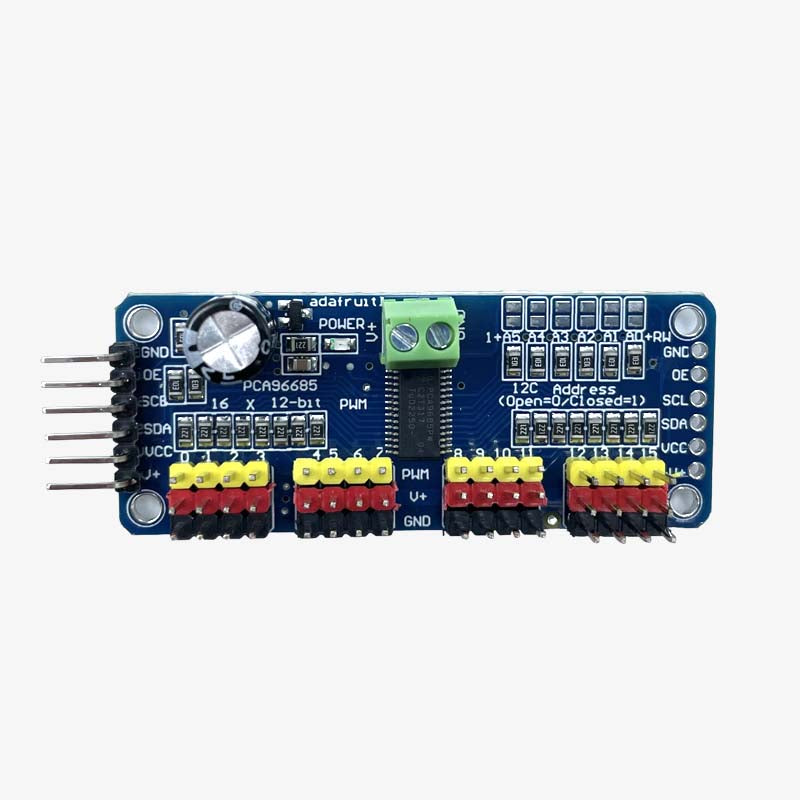

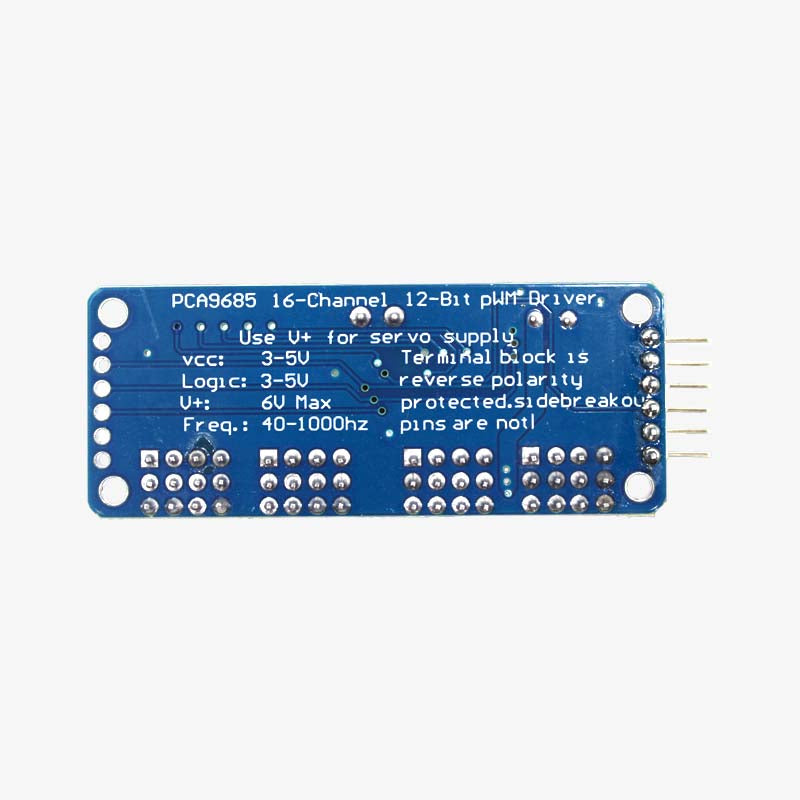

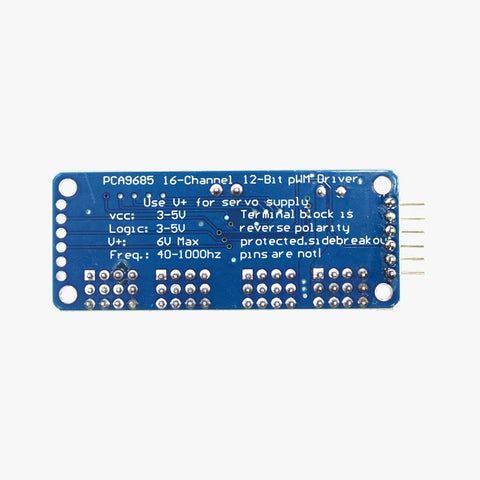

The 16-Channel 12-bit PWM/Servo Driver with I2C interface PCA9685 is a versatile module designed to provide precise control over multiple PWM outputs. It's a perfect fit for projects involving robotics, automation, lighting control, and servo motor control.

This module supports both Arduino and Raspberry Pi platforms. If you want to make a robot which has lots of moving parts or if you want to control too many LEDs with PWM outputs, then the limited PWM outputs of your microcontroller would be a big problem for you.

To overcome this problem, the only thing you should do is to get a 16-Channel 12-bit PWM/Servo Driver. You can control 16 free-running PWM outputs with 16-Channel 12-Bit PWM/Servo Driver using only 2 pins. You can even chain up 62 breakouts to control up to 992 PWM outputs.

It’s an I2C-controlled PWM driver with a built-in clock. That means you do not need to continuously send it to signal to tie up your microcontroller.

It is 5V compliant, which means you can control it from a 3.3V microcontroller and still safely drive up to 6V outputs. This is good when you want to control white or blue LEDs with 3.4+ forward voltages. 6 address select pins so you can wire up to 62 of these on a single I2C bus, a total of 992 outputs.

Features:

  • Multiple Channels
  • High Resolution
  • I2C Interface
  • Adjustable PWM Frequency
  • Voltage Compatibility
  • Compact Design
  • Versatile Applications
  • Configurable push-pull or an open-drain output
  • The output enable pin to quickly disable all the outputs
  • Terminal block for power input
  • Reverse polarity protection on the terminal block input
  • Green power-good LED
  • 3 pin connectors in groups of 4 so you can plug in 16 servos at once
  • Chainable design
  • A spot to place a big capacitor on the V+ line
  • 220-ohm series resistors on all the output lines to protect them, and to make driving LEDs trivial.
  • This board/chip uses I2C 7-bit address between 0x60-0x80, selectable with jumpers.

Specifications:

  • Supply Voltage: 2.3V to 5.5V
  • Number of Channels: 16 PWM channels
  • Resolution: 12-bit (4096 steps)
  • PWM Frequency: Configurable up to approximately 1.6 KHz
  • Communication Interface: I2C (7-bit address between 0x60 to 0x80)
  • Operating Temperature Range: -40°C to +85°C
  • Dimensions (LxWxH): 62x25x15mm
  • Power Input: Terminal block for convenient power connection
  • LED Indicators: Power and activity LEDs for visual feedback
  • Compatibility: Works seamlessly with popular development platforms like Arduino and Raspberry Pi

Package Includes:

1 x 16-Channel 12-bit PWM/Servo Driver I2C interface PCA9685

Read More
Read Less
