WS2812B is an intelligent control LED light source where the control circuit and RGB chip are integrated into a single package of 5050 components.
Each LED can be individually controlled. You may programmed each LED to scroll messages or draw little graphics.

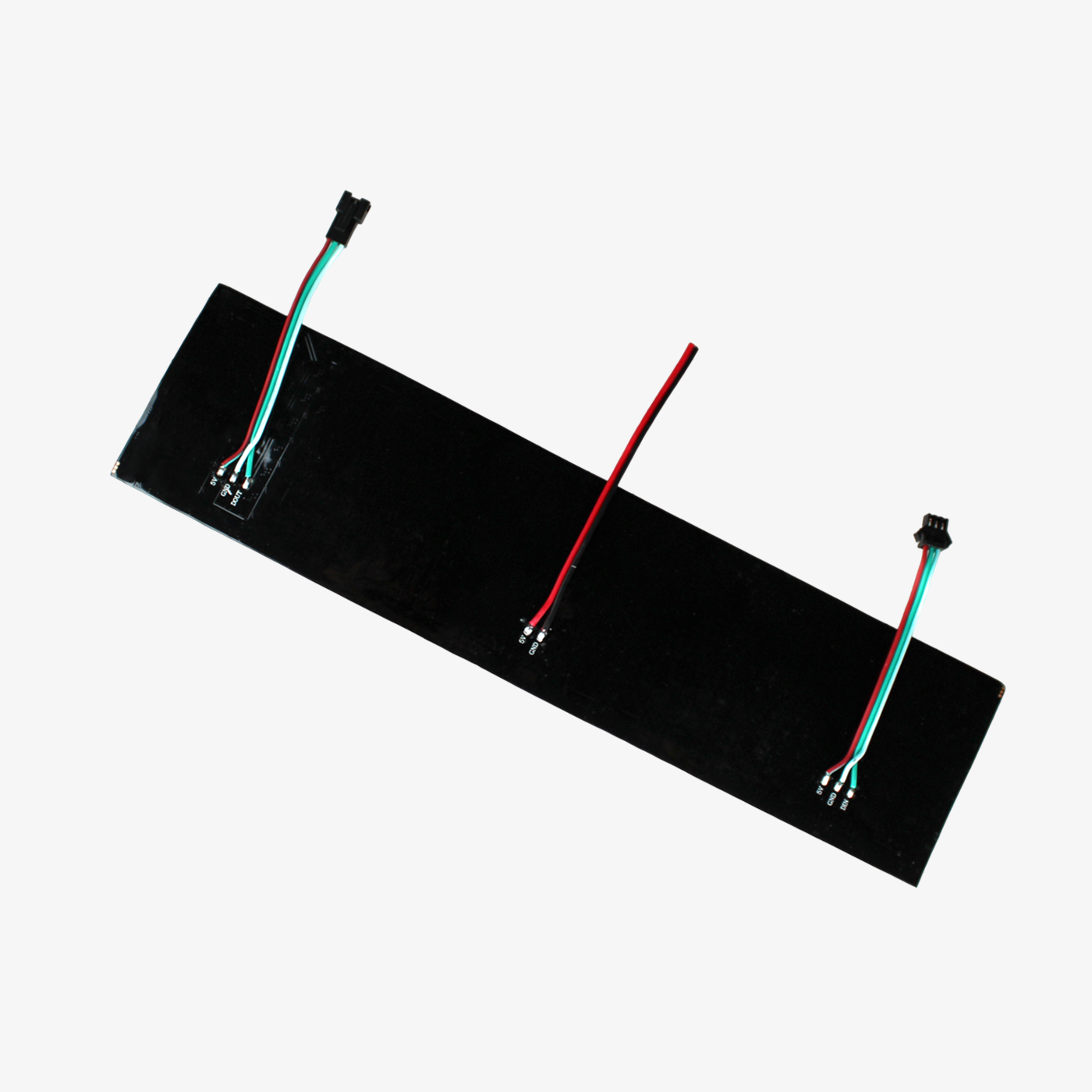

WS2812B Addressable Flexible LED Matrix is widely compatible. It can be controlled with Arduino, Raspberry Pi Fast led Library, SP103E, SP105E, K1000C, T1000S, etc. Chainable and bendable design. You can extend the panel by hooking them up one by one with the 3pin JST SM connectors. Flexible FPCB can be gently bent and curved around surfaces.
Features:
-
Individually Addressable Using a programmable controller and you can program every led just you like. Every one led has its own IC chip.one IC control one led. The chip built in led.
-
If you have a programmable controller, you can DIY your own special effects.
-

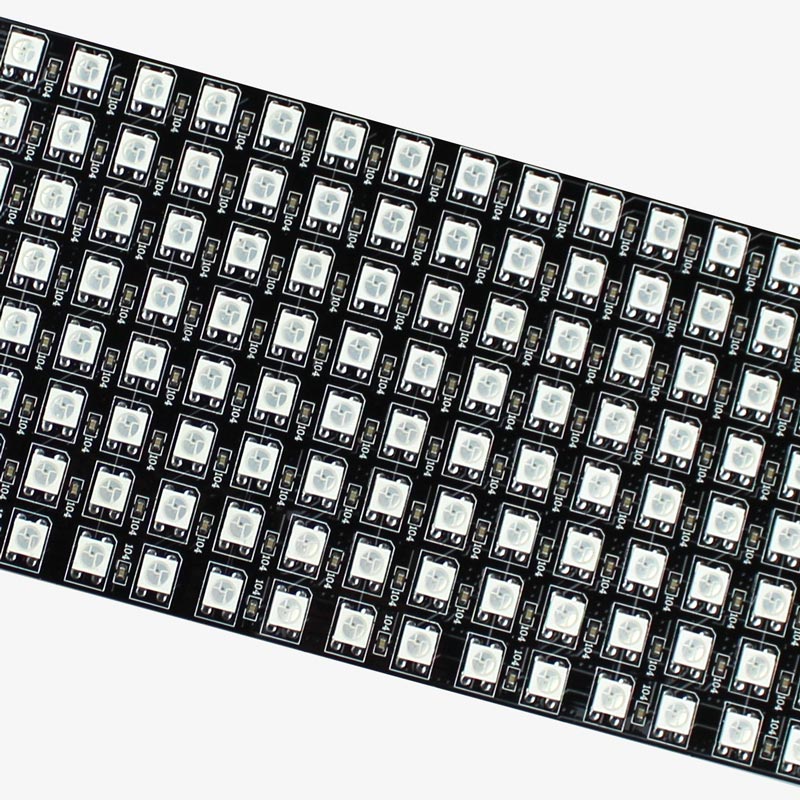

Technology advantages: The WS2812B SMD5050 RGB LED, every led built-in(embedded) a WS2812B IC; therefore every one led lighting effect can be controlled, every RGB led is digital addressable.
-
Easy installation: Every LED lamp can be arbitrary cut-off, has good flexibility, easy installation, and can be arbitrary bending.
-
Dream color lighting: Match use controller can appear colorful curtain-up/ flow water/raindrop/jump flash and so on hundreds of lighting effect, you can also edit animation effect by CorelDraw/Flash/Led-Edit software.
Specifications:
- Color: RGB
- Input Voltage: DC 5V
- Working Temperature(℃): -25 to 80
- LED Power Consumption: 76.8W (max)
- IC Chip: WS2812B
- LED Type: SMD 5050 RGB Chip
- Dimension: 320x80x2mm
Application:
Making led screen, led wall, advertising board. Apply to hotels, KTV, bars, advertisement companies, decoration companies, the city lighting project, entertainment and leisure places lighting.
Package Includes:

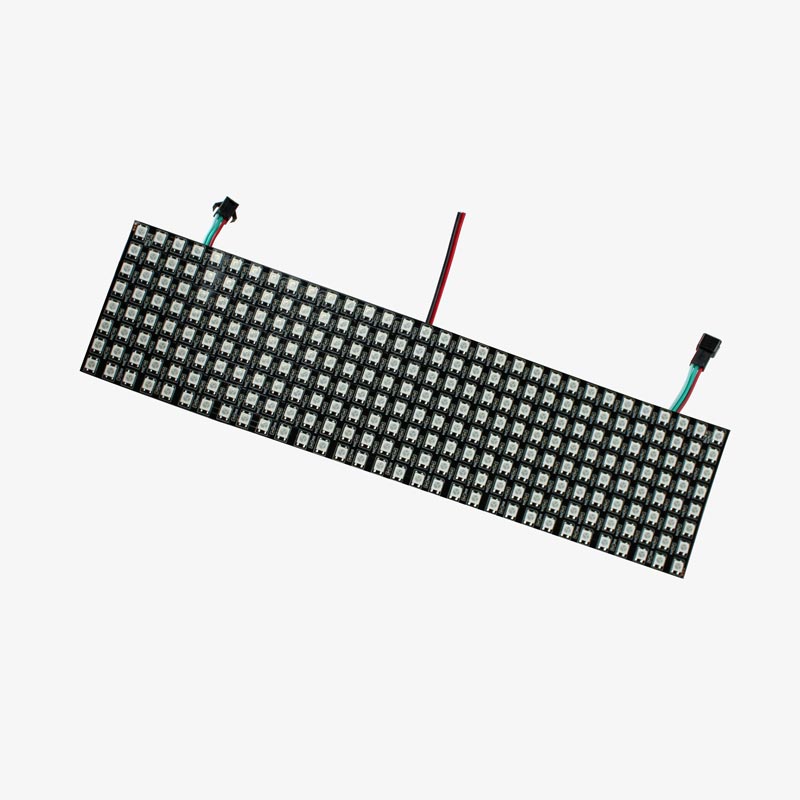

1 pc of Flexible 8×32 WS2812B 5050 Pixel RGB LED Matrix Panel.
