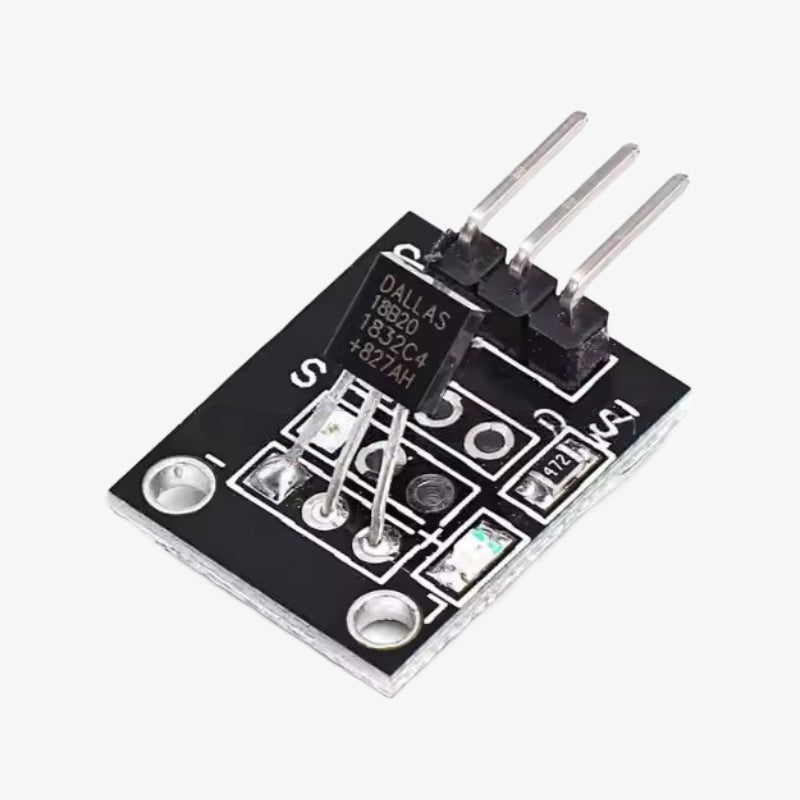

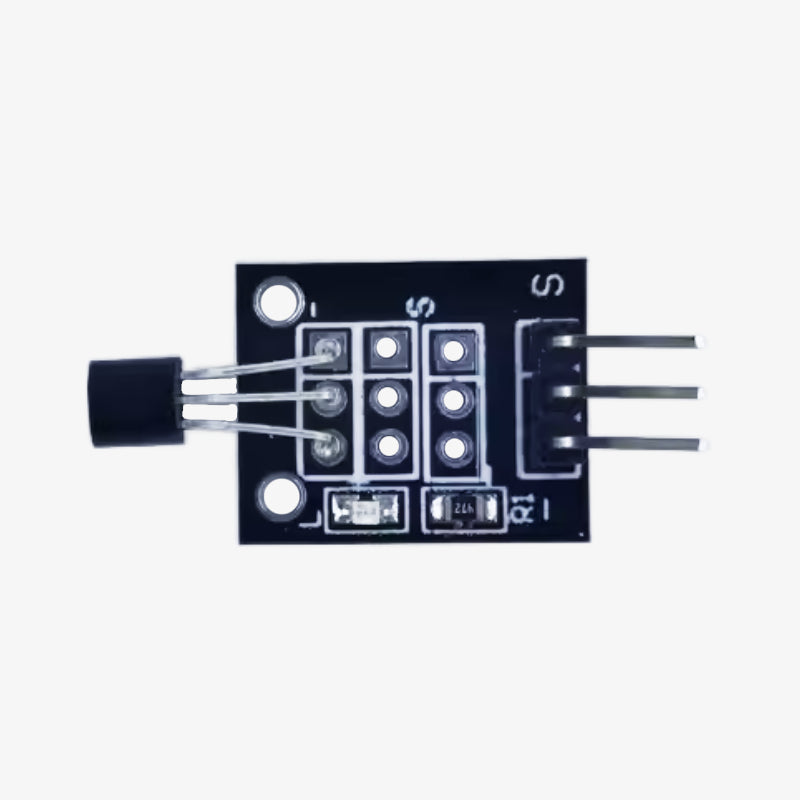

DS18B20 Temperature Sensor Module
SKU:
MOD-QC2885
Availability:
100
In Stock
- Rs. 56.00
- Rs. 56.00
- Unit price
- per
Subtotal:
Rs. 56.00
Description
xThe DS18B20 Temperature Sensor Module is a digital temperature sensor that provides high-accuracy readings using a 1-Wire communication protocol. It is ideal for applications requiring precise temperature monitoring, such as weather stations, industrial automation, and home automation projects. The module is designed for easy integration with Arduino, Raspberry Pi, and other microcontrollers.
Features of DS18B20 Temperature Sensor Module:
- Digital temperature sensing with high accuracy
- 1-Wire communication, allowing multiple sensors on a single data line
- Wide temperature range.
- Adjustable resolution for optimized performance
- Pre-mounted on a PCB with a 3-pin header (VCC, GND, Signal) for easy wiring
Specifications of DS18B20 Temperature Sensor Module:
- Operating Voltage: 3.0V - 5.5V DC
- Temperature Measurement Range: -55°C to +125°C
- Accuracy: ±0.5°C (from -10°C to +85°C), ±2°C for extreme ranges
- Resolution: 9-bit to 12-bit (programmable)
- Output Signal: Digital (temperature in °C)
- Response Time: 750ms for full resolution
- Connection Type: 3-pin interface (VCC, GND, Signal)
- Dimensions: Compact PCB with mounting holes
Package Includes:
1 × DS18B20 Temperature Sensor Module
