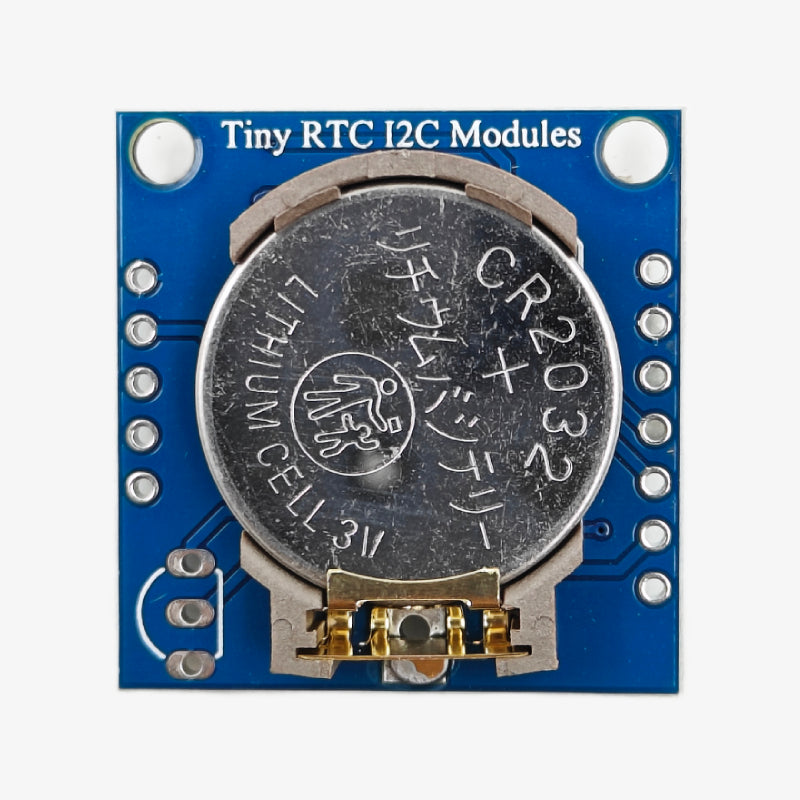

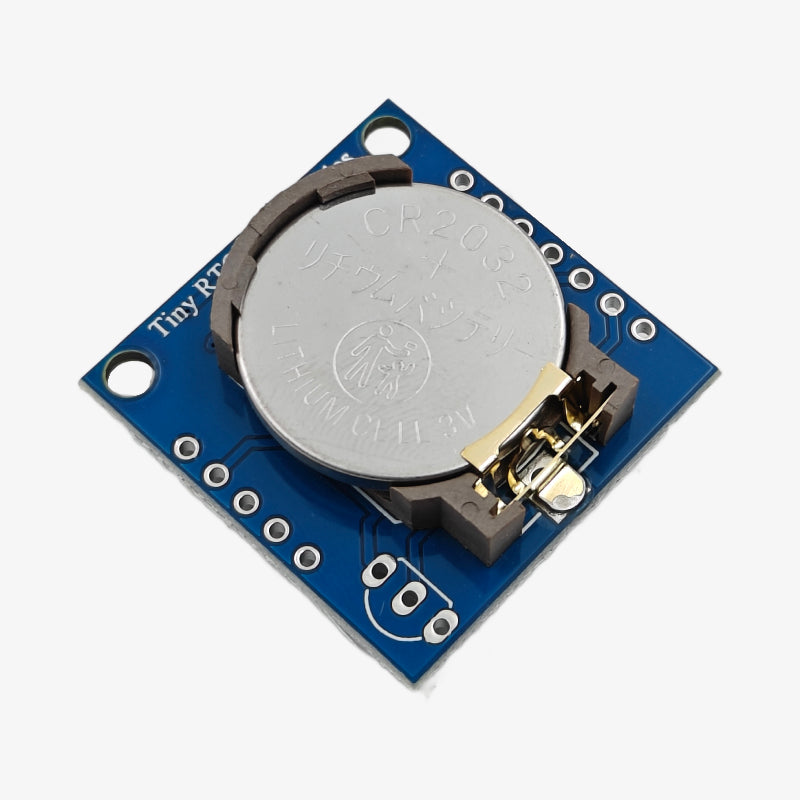

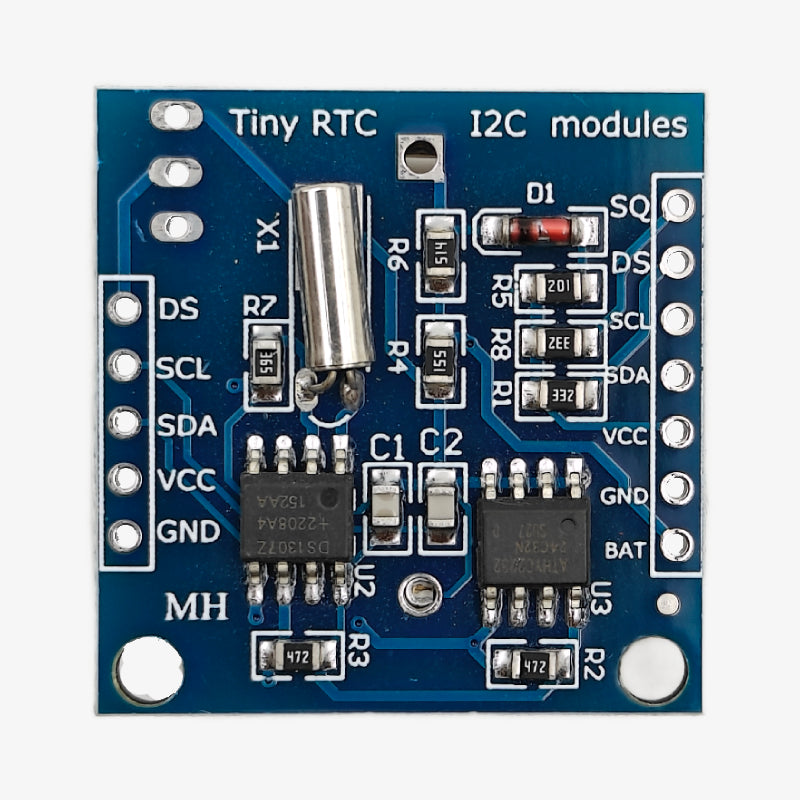

DS1307 Real-Time Clock RTC I2C Module AT24C32 with Battery

The DS1307 RTC Module is a low-power real-time clock designed for precise timekeeping. It keeps track of seconds, minutes, hours, day, date, month, and year, with automatic leap-year correction. The module communicates using the I2C interface, making it compatible with microcontrollers like Arduino, Raspberry Pi, and ESP8266. Additionally, it features an AT24C32 EEPROM for extra data storage and includes a CR2032 battery to retain timekeeping even when power is lost. This module is also available without battery.

Features of DS1307 RTC Module:

1. DS1307 RTC chip for real-time clock functionality.
2. I2C interface for easy communication with microcontrollers.
3. AT24C32 EEPROM (32Kbit) for additional non-volatile data storage.

4. Keeps track of time even when the system is powered off.
5. Stores seconds, minutes, hours, day, date, month, and year with leap-year compensation.
6. Supports both 12-hour and 24-hour formats.


Specifications of DS1307 RTC Module:

• RTC Chip: DS1307
• EEPROM Chip: AT24C32 (32Kbit)
• Communication Protocol: I2C (Address: 0x68 for RTC, 0x50 for EEPROM)
• Operating Voltage: 5V DC
• Battery Backup: CR2032 coin cell battery (included)
• Timekeeping Accuracy: ±2 minutes per month (without external crystal adjustment)
• Crystal Frequency: 32.768 kHz
• Operating Temperature: -40°C to +85°C
• Dimensions: Compact for various applications

Package Includes:

1 × DS1307 RTC Module with AT24C32

1 × CR2032 Battery
