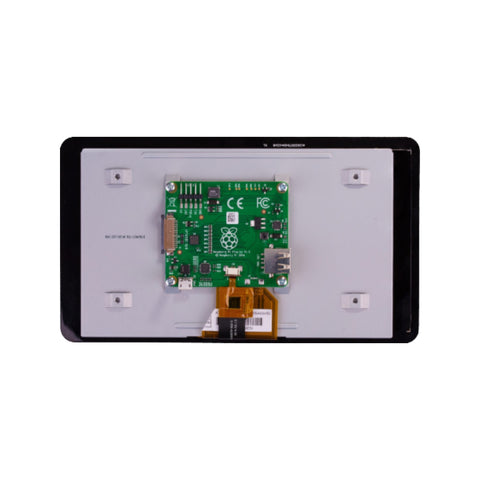

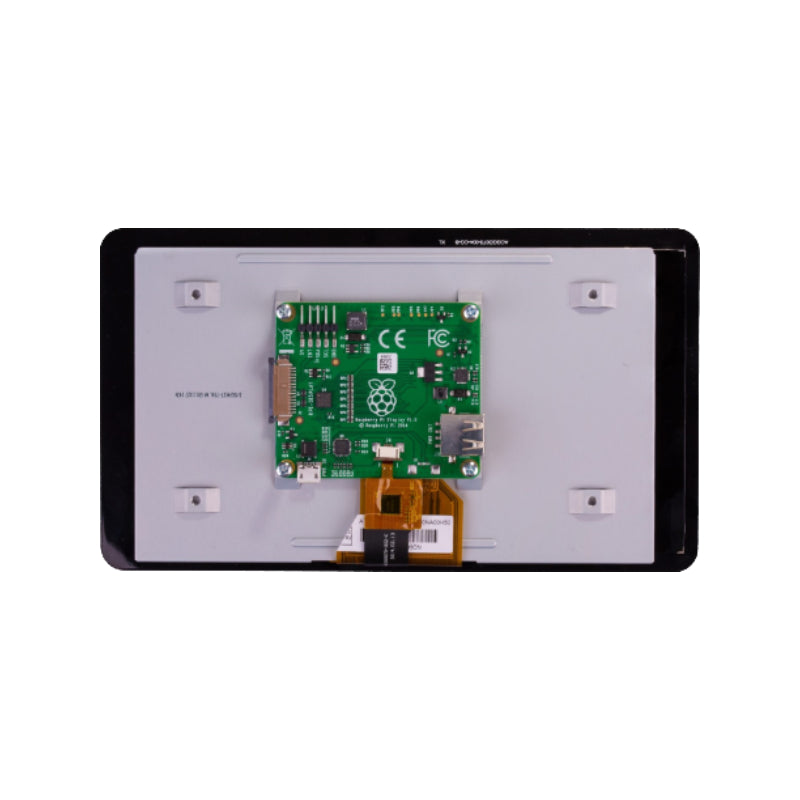

7″ Official Raspberry Pi Display with Capacitive Touchscreen

The 7 Inch Official Raspberry Pi Display with Capacitive Touchscreen enables users to build integrated, interactive devices like tablets, infotainment systems, and IoT projects. Designed for seamless connectivity with Raspberry Pi boards, this display combines vibrant visuals with a 10-finger capacitive touchscreen for a versatile and responsive user experience.

Features:

1. Supports multi-touch for enhanced interactivity.
2. Offers clear and vibrant visuals for various applications.
3. Connects to the Raspberry Pi via a ribbon cable (DSI port) and GPIO pins for power.
4. Works with the latest Raspbian OS, featuring touchscreen drivers and an on-screen keyboard for a fully functional, keyboard-free experience.
5. Ideal for creating home automation systems, IoT devices, and educational tools.
6. Fully compatible with Raspberry Pi 3 Model B+, A+, B+, Pi 2, and Pi 3.

Useful Documentations:

1. Raspberry Pi Touch Display product brief
2. Raspberry Pi Touch Display mechanical drawing
3. Raspberry Pi Touch Display documentation

Note:  Raspberry Pi and Power Supply Not Included

Specifications:

• Assembly module size: 192.96mm × 110.76mm
• Display size (diagonal): 7 inches
• Display format: 800 (RGB) × 480 pixels
• Active area: 154.08mm × 85.92mm
• LCD type: TFT, normally white, transmissive
• Touch panel: True multi-touch capacitive touch panel with up to 10
  points of absolution
• Surface treatment: Anti-glare
• Colour configuration: RGB-stripe
• Backlight type: LED B/L

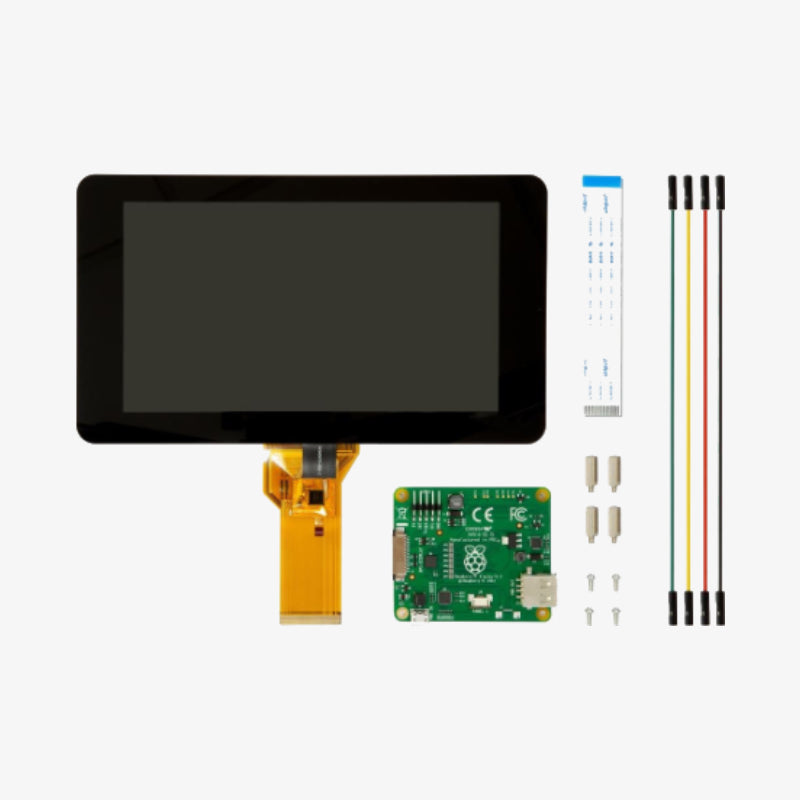

Package Includes:

1 x 7 Inch Touchscreen Display

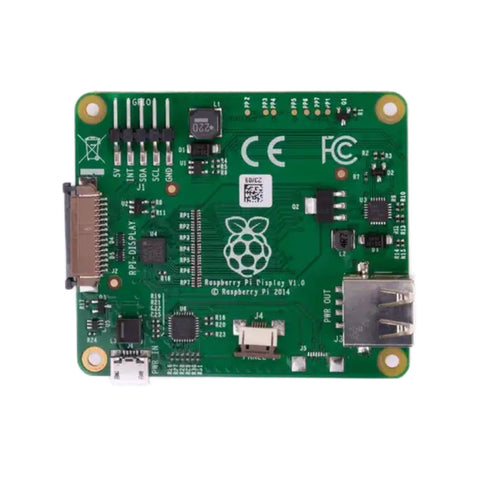

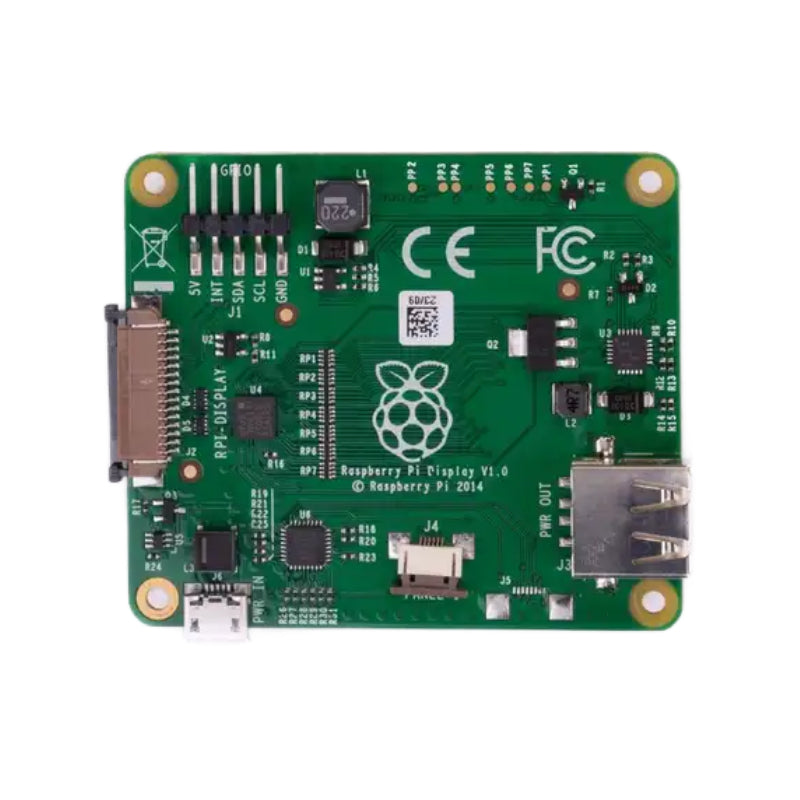

1 x Adapter Board

1 x DSI Ribbon Cable

4 x Stand-offs and Screws

4 x Jumper Wires
