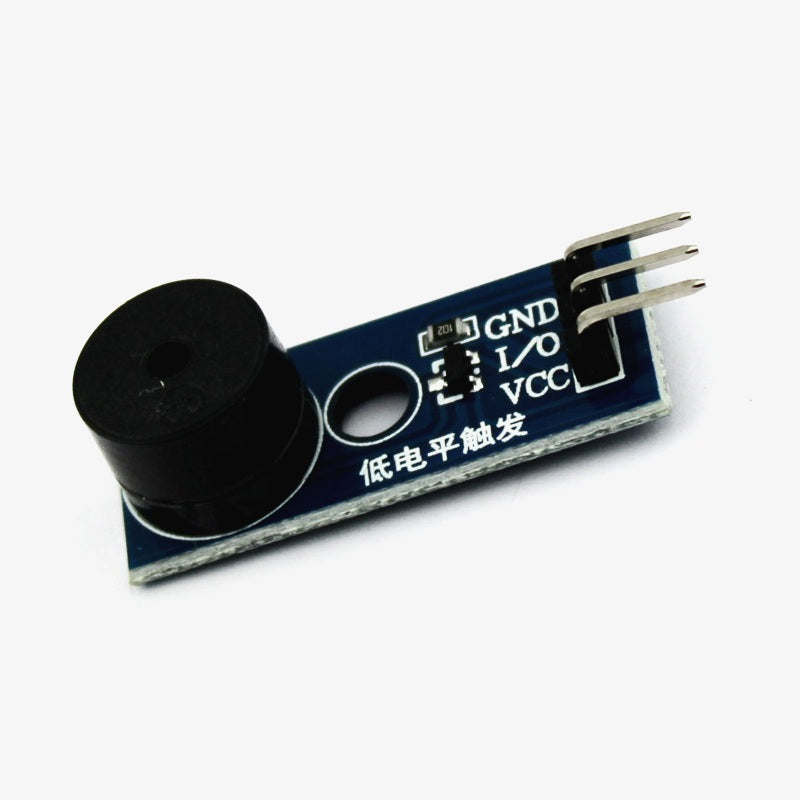

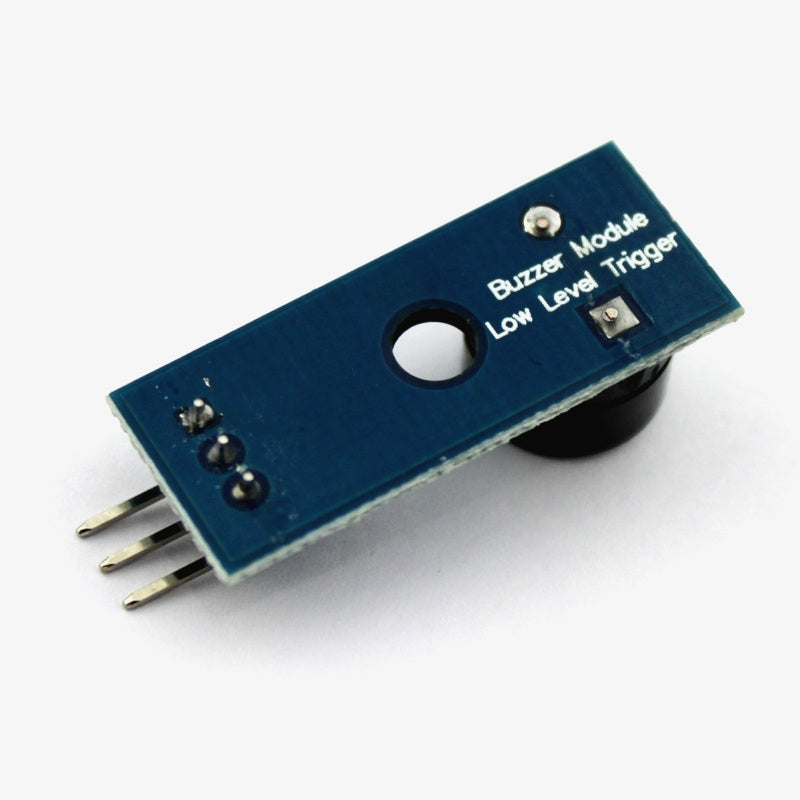

This PCB Mounted Passive Buzzer Module can produce a range of sound tones depending on the input frequency on its I/O pins. Depending on the PWM Frequency from 1.5Khz to 2.5kHz it could produce a range of sounds. It is useful for notification purposes in different projects. It is a built-in construction of digital transducers.
This module could work from 4V to 8V DC and it is well suited for a broad range of microcontrollers ranging from the Arduino to Raspberry Pi. It is also compatible with a pin pitch of 2.54mm while functioning with microcontroller development boards such as the Arduino or different development boards. This module responds to programmatic changes with a lovely or annoying buzzing noise that can be altered over a range of frequencies to ensure maximum irritation in alert related systems.
Passive Buzzer Module pinout:
Feature and Specification: -
- Operating Voltage: 4 ~ 8V DC
- Working Current: Less than 25mA
- Tone Generation Range: 1.5 ~ 2.5kHz
- Pitch: 2.54mm
- Lead Material: Stainless Steel
Passive Buzzer Module Applications:
- Alert System
- Clocks
- Toys
- Different embedded Projects
Passive Buzzer Module Dimension:
Example Projects on Passive Buzzer Module:
Additional Resources:
Passive Buzzer Module Datasheet
Package Contains
1x Passive Buzzer Module
