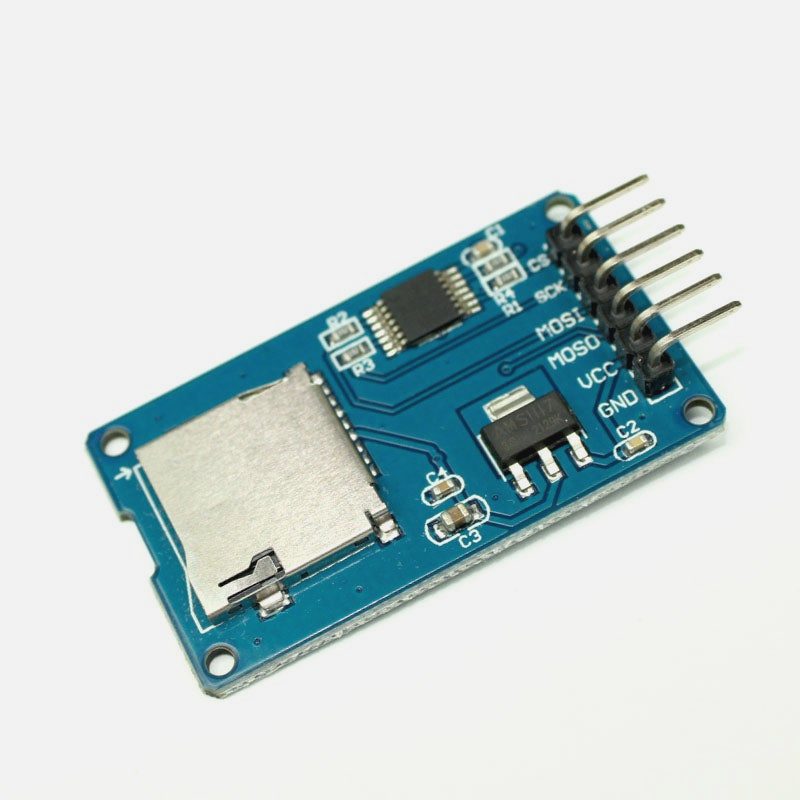

Micro SD Card Reader - Adapter Module

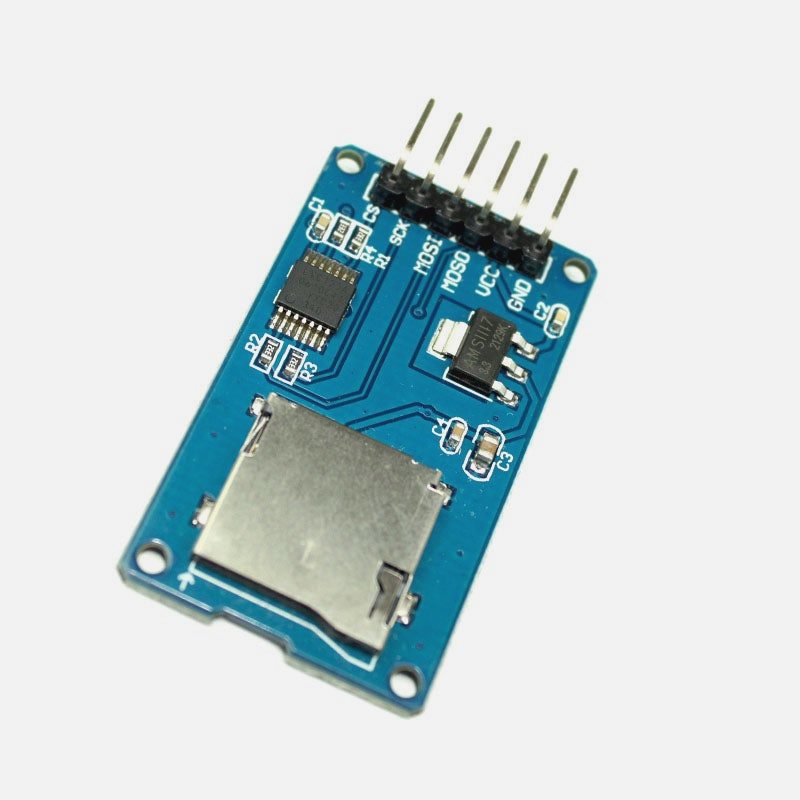

Micro SD Card Reader Adapter Module

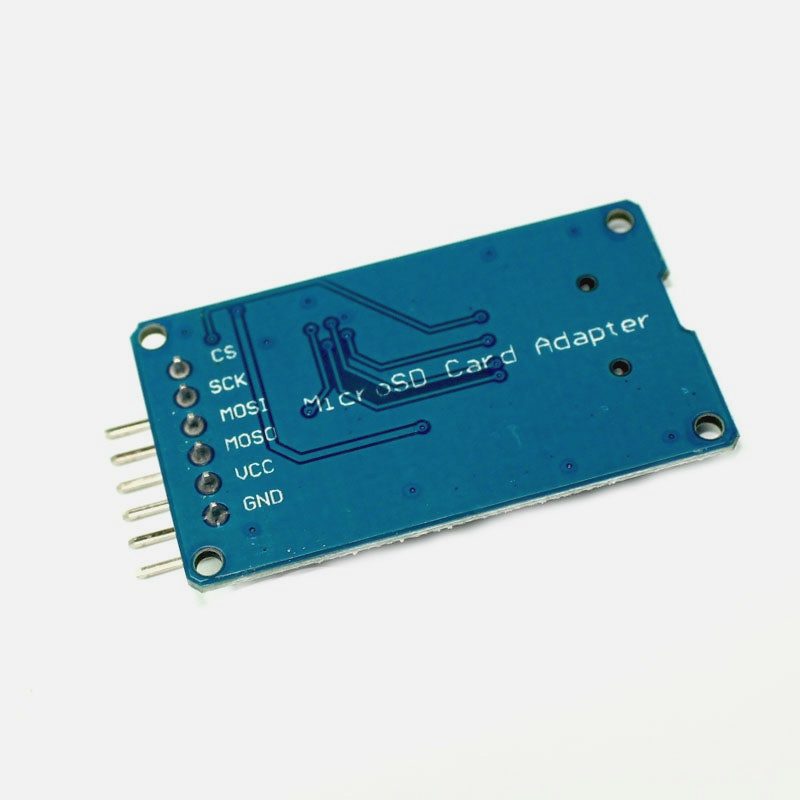

Micro SD Card Reader  Module
Click to zoom in
  • Free Shipping

    On prepaid orders above INR 500

  • Cash On Delivery

    COD available for orders above INR 500

  • 3-5 Days Delivery

    Shipped within 24 hrs

  • Dedicated Support

    Mon to Sat - 10 AM to 6.30 PM

Micro SD Card Reader - Adapter Module

QC0041
Out of stock
Rs. 36.00 (Exc. GST)

SD cards are often used along with microcontrollers to store and retrieve the huge amount of data, mostly in data logging or visualization applications. This SD card module will help us to easily Interface an SD card with Microcontrollers.



The micro SD card module operates on 4.5V to 5.5V and uses an on-board regulator to regulate 3.3V. The communication between the SD card and Microcontroller takes place through the SPI standard Communication Protocol.

The micro SD card module contains two main components i.e. Voltage Regulator and Level Shifter. The on-board ultra-low dropout regulator is used to convert 5V to 3.3V and Level Shifter is used to converts the interface logic from 3.3V-5V to 3.3V.



Features & Specifications

  • Input Voltage: 3.3V/5V
  • On-board 3.3V voltage regulator circuit
  • Current: 0.2~200mA
  • Supports Micro SD up to 2GB
  • Micro SDHC up to 32GB
  • Pinouts: GND, VCC, MISO, MOSI, SCK, CS; SPI standard interface
  • 4 mounting holes with 2.2mm diameter
  • Only use 4 I/O pins on the Arduino
  • Size: 42mm x 25mm x 5mm



Package Includes

1×Micro SD Card Adapter Module
