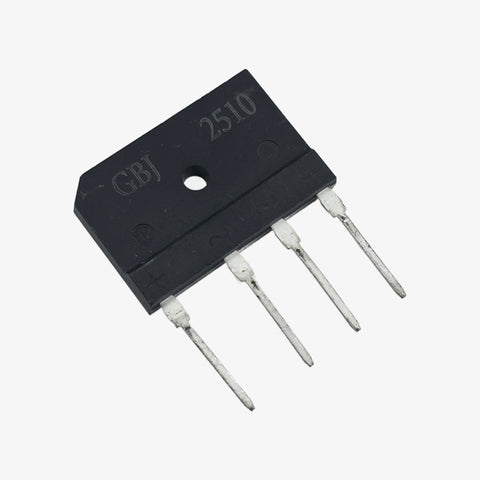

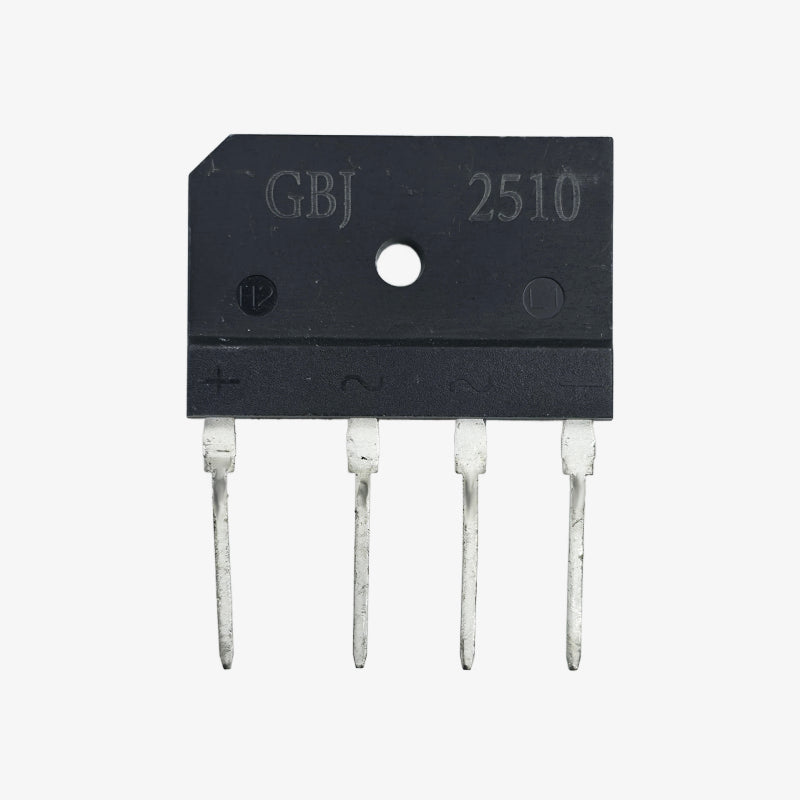

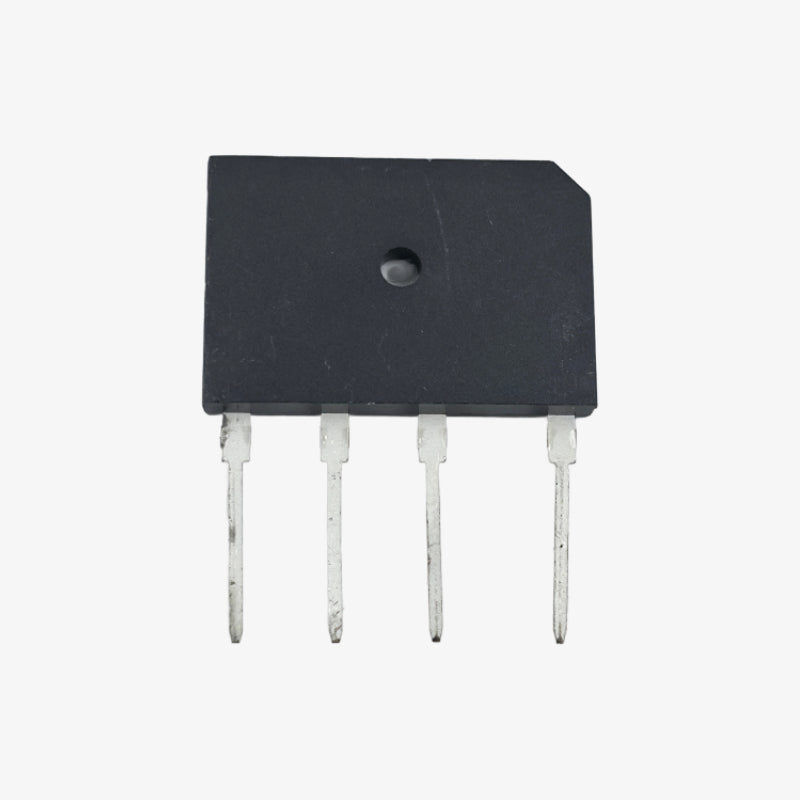

GBJ2510 25A 1000V Single Phase Bridge Rectifier Module - Inline 4-Pin Package
SKU:
CMP-QC3771
Availability:
999
In Stock
- Rs. 44.00
- Rs. 44.00
- Unit price
- per
Subtotal:
Rs. 44.00
Description
xThe GBJ2510 Bridge Rectifier 25A is a robust through-hole rectifier designed for high-current AC to DC conversion in industrial and power electronics. Constructed with a glass-passivated die and molded UL 94V-0 plastic body, it ensures superior thermal stability and surge endurance. Ideal for power supplies, inverters, UPS systems, and motor control circuits.
Features:
- High average rectified current of 25A
- Excellent surge current handling up to 350A
- Low forward voltage drop for efficient rectification
- UL-recognized molded plastic case with flame-retardant rating
- Suitable for PCB mounting with built-in stand-offs and reliable lead soldering
Specifications:
- Average Forward Rectified Current (IF(AV)): 25A (TC = 100°C)
- Peak Repetitive Reverse Voltage (VRRM): 1000V
- DC Blocking Voltage (VDC): 1000V
- RMS Reverse Voltage (VR(RMS)): 700V
- Peak Forward Surge Current (IFSM): 350A (8.3ms half-sine wave)
- Forward Voltage (VF): 1.1V at IF = 12.5A DC
- Reverse Current (IR) at 25°C: 10µA
- Reverse Current (IR) at 125°C: 500µA
- Thermal Resistance Junction-to-Case (RθJC): 1.0°C/W
- Operating Junction Temperature (TJ): -55°C to +150°C
- Storage Temperature (TSTG): -55°C to +150°C
Package Includes:
1 × GBJ2510 25A 1000V Single Phase Bridge Rectifier Module - Inline 4-Pin Package
