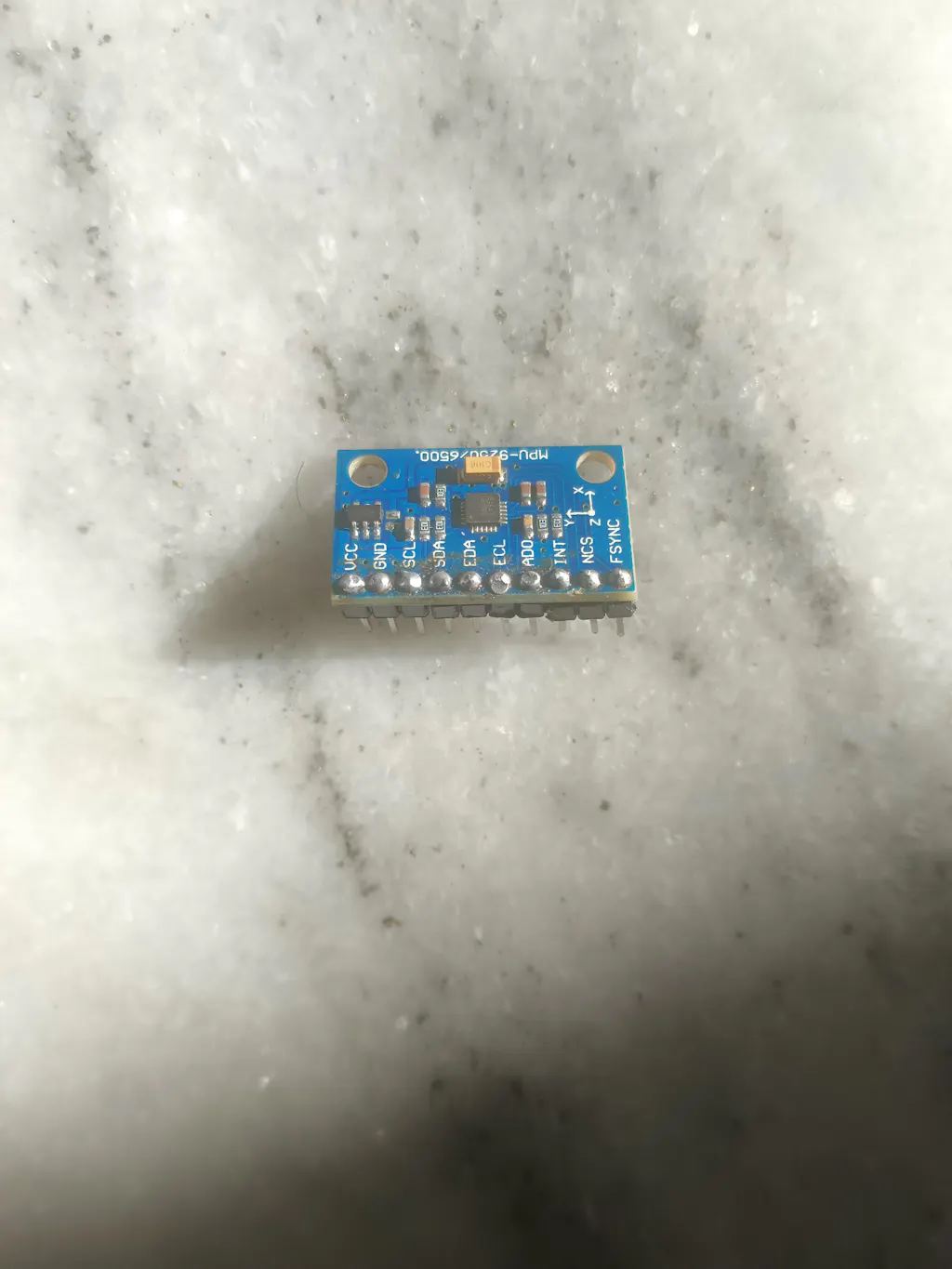

MPU9250 9-Axis Attitude Gyro Accelerator Sensor Module

The MPU9250 9-Axis Attitude Gyro Accelerator Sensor Module is a high-precision motion-tracking sensor that integrates a 3-axis gyroscope, 3-axis accelerometer, into one compact module. Designed for advanced motion detection, orientation sensing, and navigation systems, it is widely used in drones, robotics, stabilizers, VR/AR projects, and IMU applications.

With support for both I2C and SPI interfaces, the module is easy to interface with Arduino, Raspberry Pi, ESP32, STM32, and most microcontrollers. Its built-in digital motion processor (DMP) allows for efficient sensor fusion, providing stable and accurate 9-axis orientation data.

Features:

1. 9-axis sensing: Gyroscope + Accelerometer
2. High-resolution motion tracking with low noise
3. Supports I²C and SPI communication

4. Wide selectable gyroscope & accelerometer ranges
5. Compact, lightweight module for wearable and embedded systems
6. Compatible with Arduino, ESP8266/ESP32, STM32, Raspberry Pi, etc.
7. Ideal for drones, robotics, gesture control, VR/AR devices, IMUs, and navigation projects

Specifications:

• Sensor Chip: MPU9250
• Gyroscope Range: ±250 / ±500 / ±1000 / ±2000 °/s
• Accelerometer Range: ±2g / ±4g / ±8g / ±16g

• Communication: I²C (up to 400kHz), SPI (up to 1MHz)
• Operating Voltage: 3.3V
• Logic Level: 3.3V
• Power Consumption: Ultra-low power design
• Operating Temperature: –40°C to +85°C
• Dimensions: Compact PCB module
• Mounting: Standard 4-hole design for easy installation

Package Includes:

1 × MPU9250 9-Axis Attitude Gyro Accelerator Sensor Module
