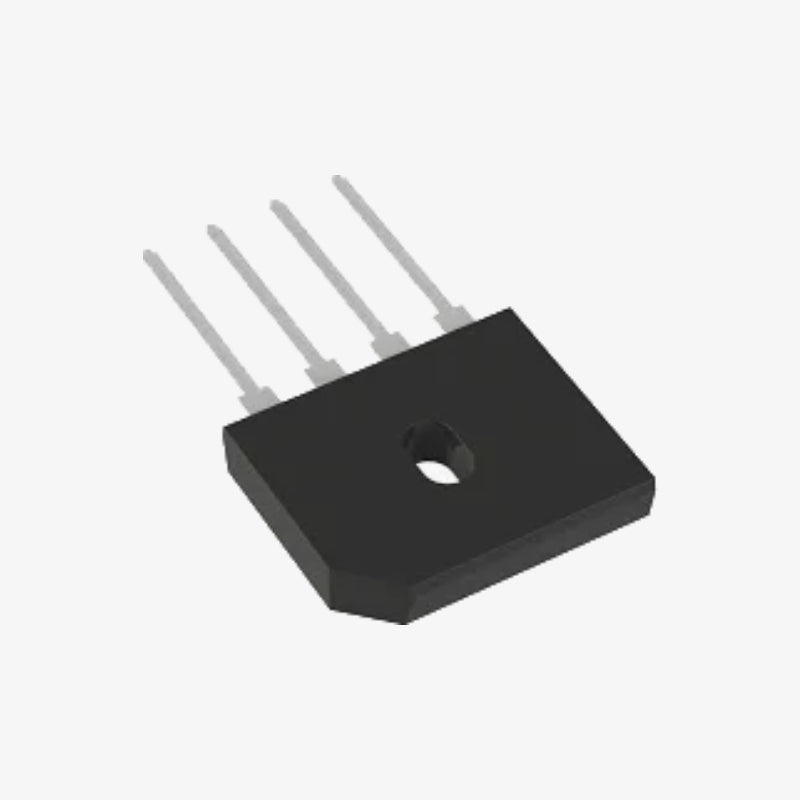

GBP210 2A 1000V Single Phase Bridge Rectifier Module - Axial 4-Lead Package
The GBP210 Bridge Rectifier 2A is a compact through-hole rectifier designed for efficient AC to DC conversion in general-purpose electronic circuits. Its diffused junction structure ensures high current capability and long-term reliability. Ideal for power adapters, chargers, control panels, and low-power rectification systems.
Features:
- Diffused junction design for stable performance
- High surge current capacity up to 60A
- Low forward voltage drop for energy-efficient operation
- Reliable plated leads suitable for PCB mounting
- Compact molded package with excellent thermal resistance
Specifications:
- Average Forward Rectified Current (IO): 2.0A (TA = 50°C)
- Peak Repetitive Reverse Voltage (VRRM): 1000V
- DC Blocking Voltage (VR): 1000V
- RMS Reverse Voltage (VR(RMS)): 700V
- Peak Forward Surge Current (IFSM): 60A (8.3ms half-sine wave)
- Forward Voltage (VFM): 1.1V at IF = 2.0A
- Reverse Current (IRM) at 25°C: 10µA
- Reverse Current (IRM) at 100°C: 500µA
- Thermal Resistance Junction-to-Ambient (RθJA): 30°C/W
- Operating Junction Temperature (TJ): -55°C to +150°C
- Storage Temperature (TSTG): -55°C to +150°C
Package Includes:
1 × GBP210 2A 1000V Single Phase Bridge Rectifier Module - Axial 4-Lead Package
