Jiabaida (JBD) LiFePo4 4S 12.8V 20A BMS
Jiabaida (JBD) LiFePo4 4S 12.8V 20A Battery Management System - BMS Protection Board
Jiabaida JBD LiFePo4 4S 12.8V 20A Battery Management System BMS Protection Board
Jiabaida JBD LiFePo4 4S 12.8V 20A Battery Management System - BMS Protection Board
Click to zoom in
  • Free Shipping

    On prepaid orders above INR 500

  • Cash On Delivery

    COD available for orders above INR 500

  • 3-5 Days Delivery

    Shipped within 24 hrs

  • Dedicated Support

    Mon to Sat - 10 AM to 6.30 PM

Jiabaida (JBD) LiFePo4 4S 12.8V 20A Battery Management System - BMS Protection Board

QC3067
Out of stock
Rs. 385.00 (Exc. GST)

Jiabaida (JBD) LiFePo4 4S 12.8V 20A BMS is a compact and reliable Battery Management System based on the CP04S005 chipset, designed for 4-cell LiFePo4 battery packs. It ensures safe operation with integrated protections against overcharging, over-discharging, and short circuits. With passive balancing and a lightweight aluminum casing, this BMS is ideal for portable applications such as DIY battery packs, e-bikes, and solar storage systems.

Jiabaida (JBD) LiFePo4 4S 12.8V 20A BMS Features:

  • Passive cell balancing for stable performance
  • Integrated overcharge, over-discharge, and short-circuit protection
  • CP04S005 chipset for accurate control
  • Aluminum plate helps with basic heat dissipation
  • Suitable for compact battery-powered systems

JBD LiFePo4 4S 12.8V 20A Waterproof BMS Specification:

Specification Value

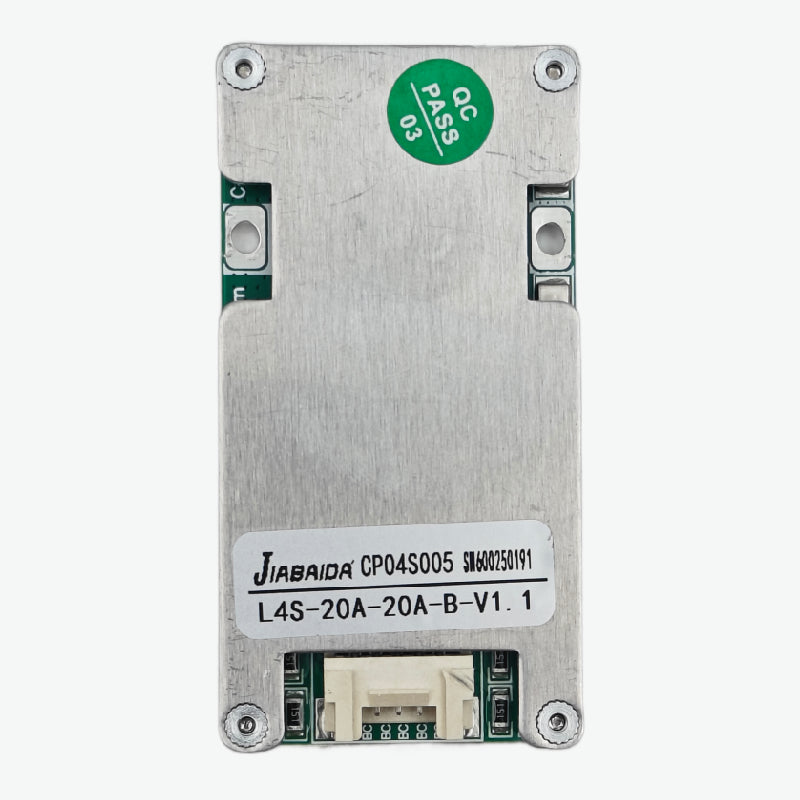

Model L4S-20A-20A-B-V1.1
Chipset CP04S005
Supported Cells 4S (LiFePo4)
Nominal Voltage (V) 12.8
Charge Voltage (V) 14.6
Charge Current (A) 10
Continuous Discharge (A) 20
Balance Current (mA) 30 ±5
Overcharge Detect (V) 3.75 ±0.05
Overcharge Release (V) 3.55 ±0.05
Over Discharge Detect (V) 2.2 ±0.1
Over Discharge Release (V) 2.5 ±0.1
Operating Temperature (°C) -20 to 70
Dimensions (mm) 66 x 34 x 10

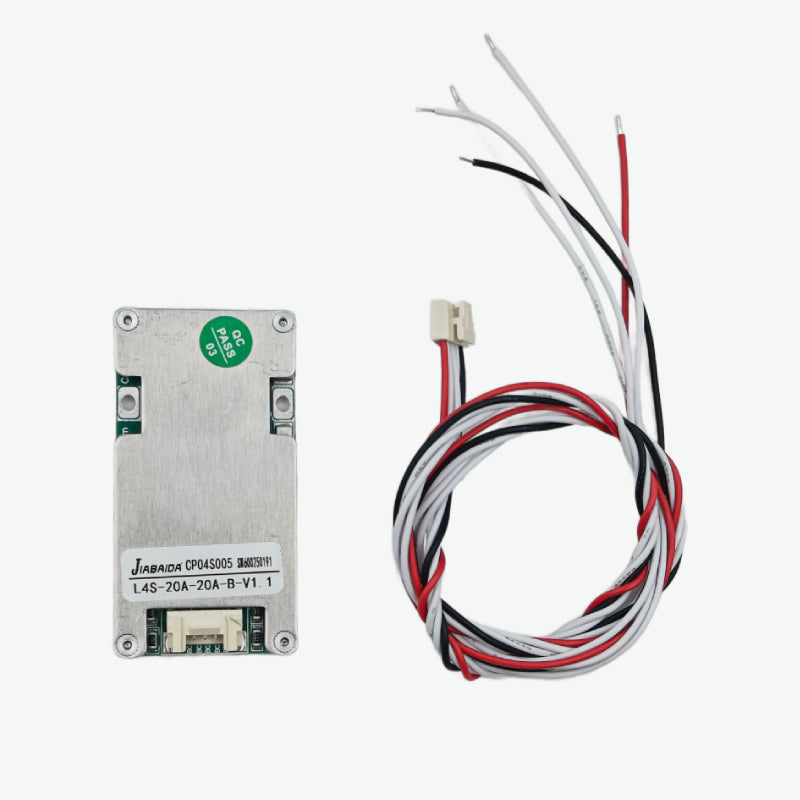

Package Includes:

1 x JBD LiFePo4 4S 12.8V 20A Waterproof Battery Management System - BMS Protection Board
