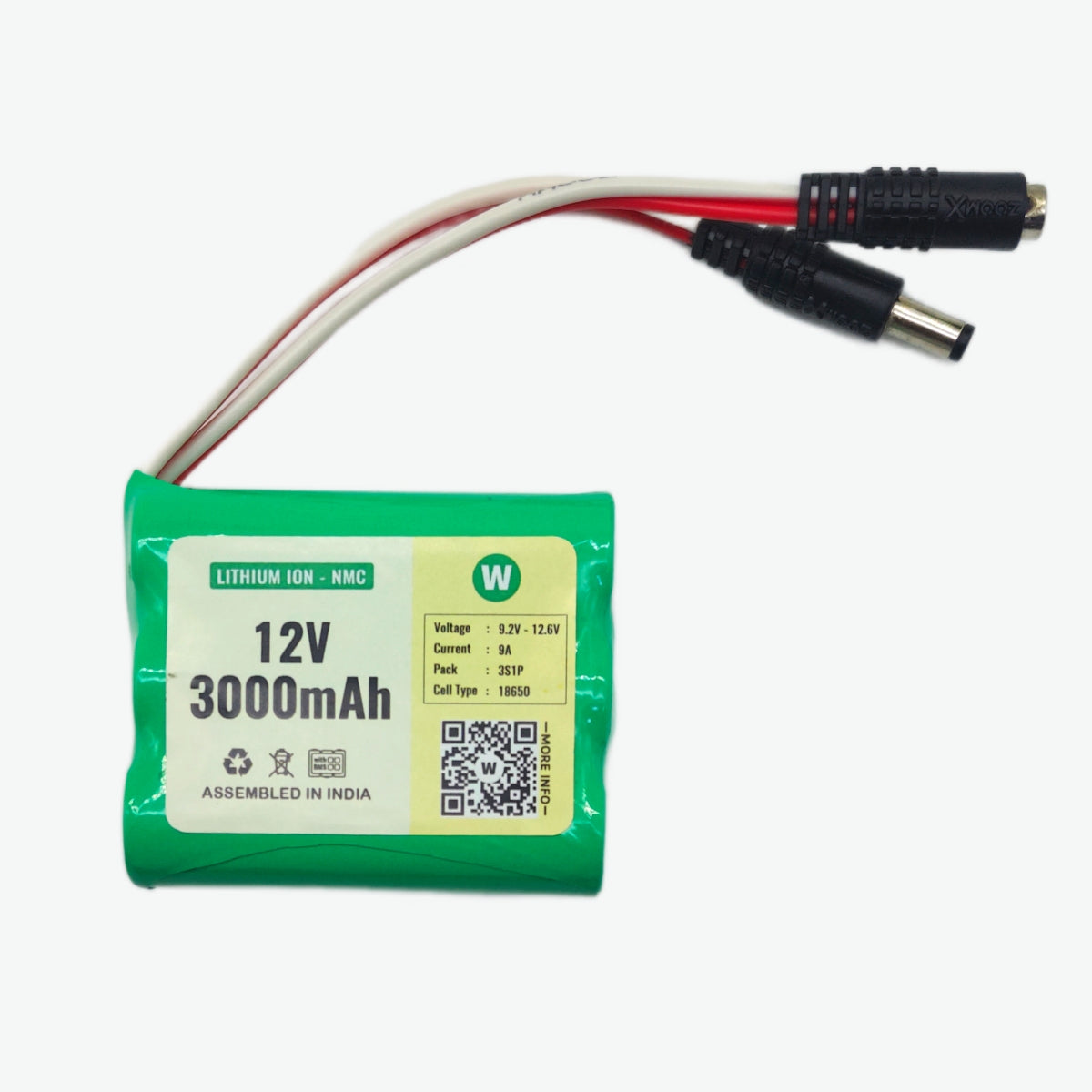

The 12V 3000mAh rechargeable lithium-ion battery from Wattnine is designed to provide high energy Density. It is Light weight and High Power Density, and comes with built-in BMS with Voltage, Temperature, Charge, Current and Short Circuit Protection.
Features
- High energy density
- Equipped with Smart Battery Management System
- Long Cycle life
- Excellent Safety & Performance
Battery Specification:
|
Nominal Characteristics |
|
|
Nominal Voltage /V |
12V |
|
Nominal capacity /Ah (25°C, 0.5C) |
3000MAH |
|
Power |
36W |
|
Operating Voltage Range |
9V-12.6V |
|
|
|
|
Pack Characteristics |
|
|
Design |
3S1P |
|
Cell type / Chemistry |
18650/NMC |
|
|
|
|
Mechanical Characteristics |
|
|
Weight |
150gm |
|
Dimension (LxWxH) |
67x55x21 mm |
|

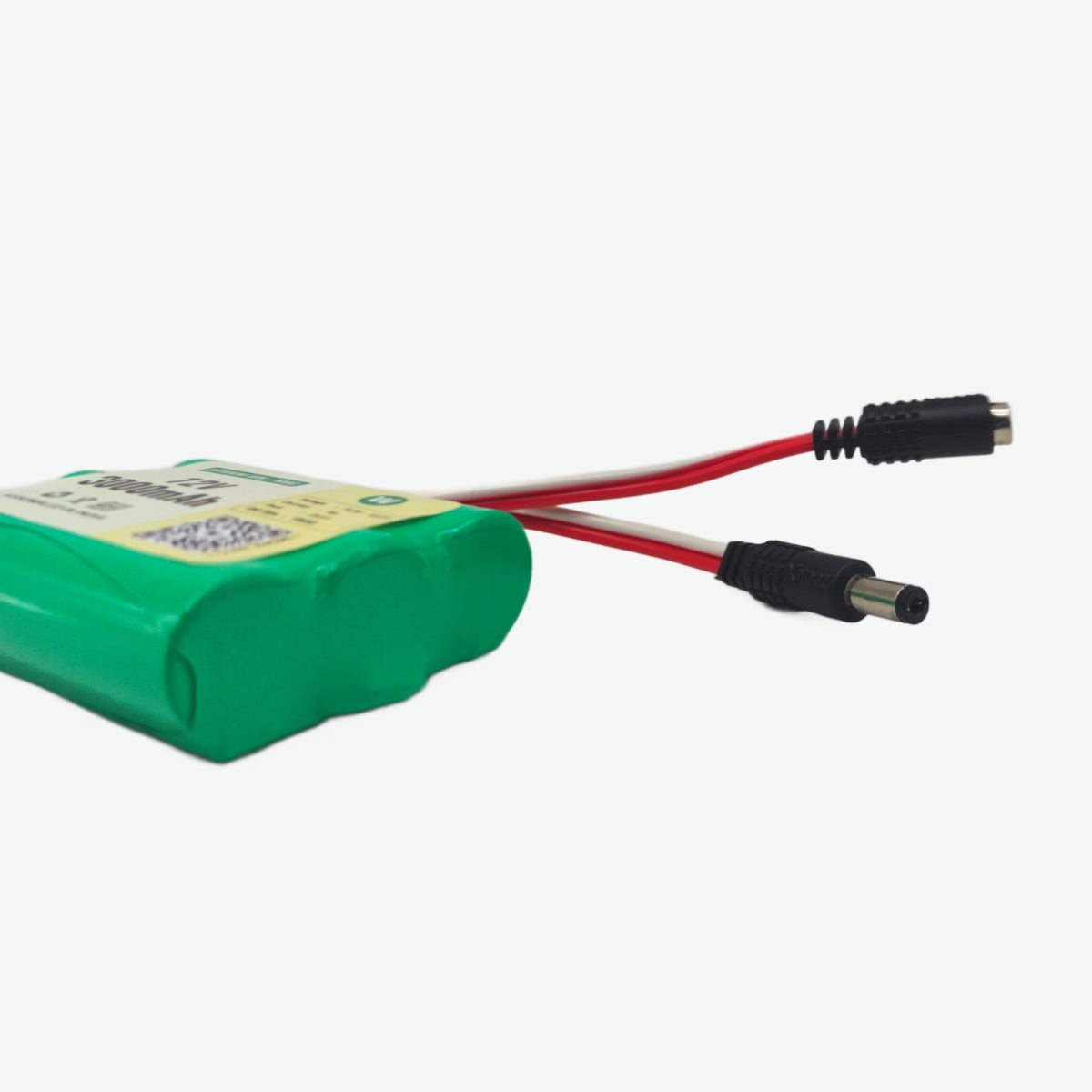

Charging Connector |
DC Male Female Connector |
|
Discharging Connector |
DC Male Female Connector |
|
|
|
|
Charging Characteristics |
|
|
Charge voltage |
12.6V |
|
Max. Continues Charge current |
1.5A |
|
Charging Duration |
=120 Min |
|
|
|
|
Discharging Characteristics |
|
|
Max. Voltage |
12.6V |
|
Min. Voltage |
9V |
|
Max. Continues Discharge current |
3A |
BMS – Battery Management System:
|
Protection |
|
Range |
Units |
||
|
Over Charge |
Trigger voltage |
4.25 |
V |
||
|
Release voltage |
4.05 |
V |
|||
|
Delay Time |
80 |
Ms |
|||
|
|
|
|
|
|
|
|
Over Discharge |
Trigger voltage |
2.40 |
V |
||
|
Release voltage |
3.0 |
V |
|||
|
Delay Time |
40 |
ms |
|||
|
Over current |
Trigger Current |
7 |
A |
||
|
Delay Time |
40 |
ms |
|||
|
Balancing Function |
NA |
||||
|
Short circuit |
Delay Time |
500 |
µs |
||
|
Manual reset |
Connect Power Source to Reset |
||||
|
Thermal protection |
High Temperature |
NA |
|||
|
Low Temperature |
NA |
||||
